N45BM1 1

Discontinued - Replaced By: LFN45BM1 1

Part of the N45B Series

Ordering Code: 0007759

UPC: 098268211528

Lead Free Model Available

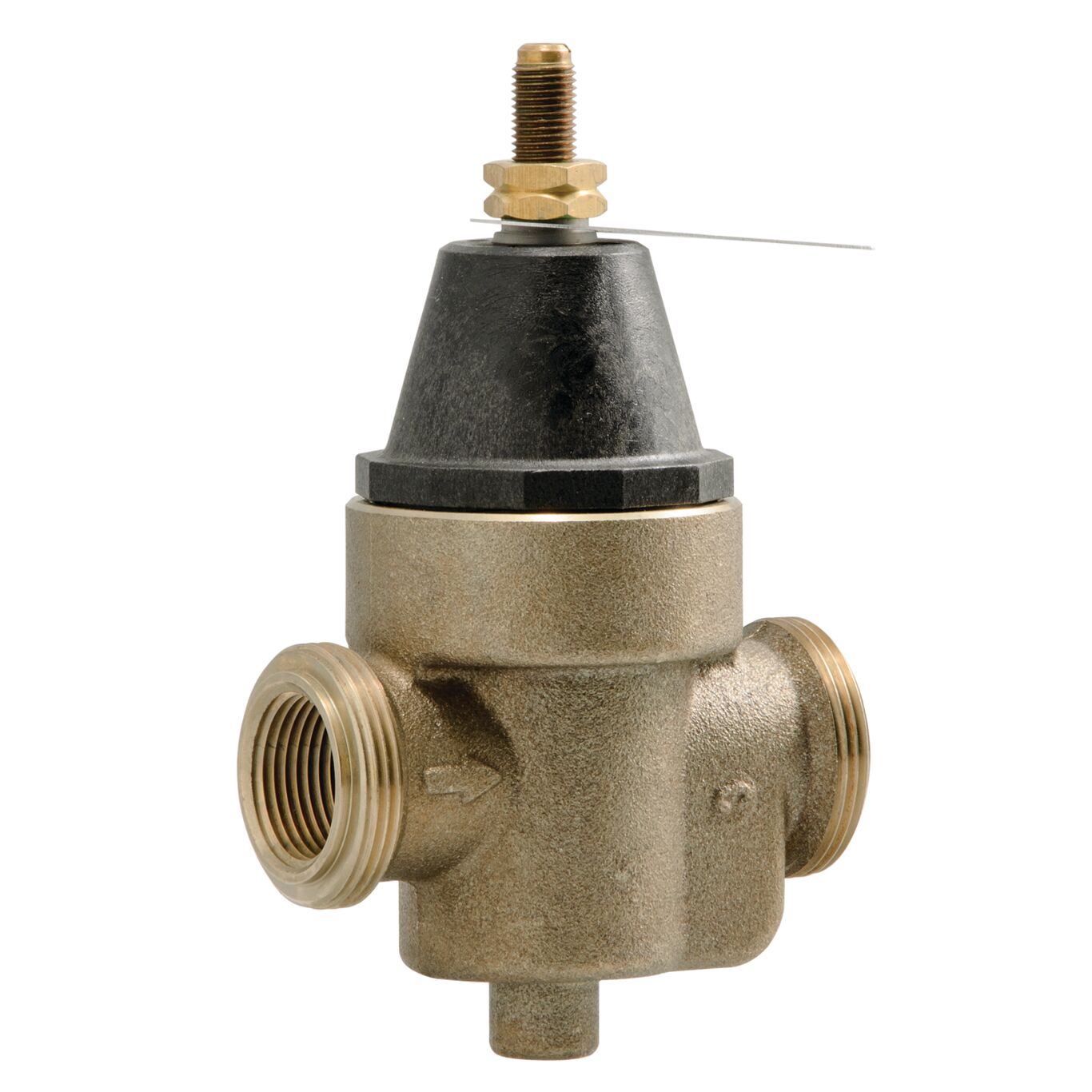

1 In Bronze Water Pressure Reducing Valve, Npt Female X Npt Female, Elastomer Disc, Max Work 400 psi, Adjust 25-75 psi

  • NPT threaded female inlet by NPT female outlet
  • Integral stainless steel strainer removable for cleaning
  • Thermoplastic seat and cage
  • Sealed spring cage for accessible outdoor or pit installations
  • ASSE 1003, CSA and UPC listed
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Bronze
Brand Watts
Buy American Act Compliant YES
Corrosion Resistant Coating No
Disc Material EPDM
EAN 098268211528
Gauge Option No Gauge
High Pressure Reduced Pressure Range Does Not Apply To Product
High Pressure Reduced Pressure Setting Does Not Apply To Product
Inlet Connection Size 1 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free NO
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 27.60
Maximum Working Pressure-PSI 400
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0007759
Series N45B
Standard Reduced Pressure Setting-BAR 3.40
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Engineered Plastic
Valve Style Standard
