N45BM1-U 1

Discontinued - Replaced By: LFN45BM1-U 1

Part of the N45B Series

Ordering Code: 0007760

UPC: 098268211535

Lead Free Model Available

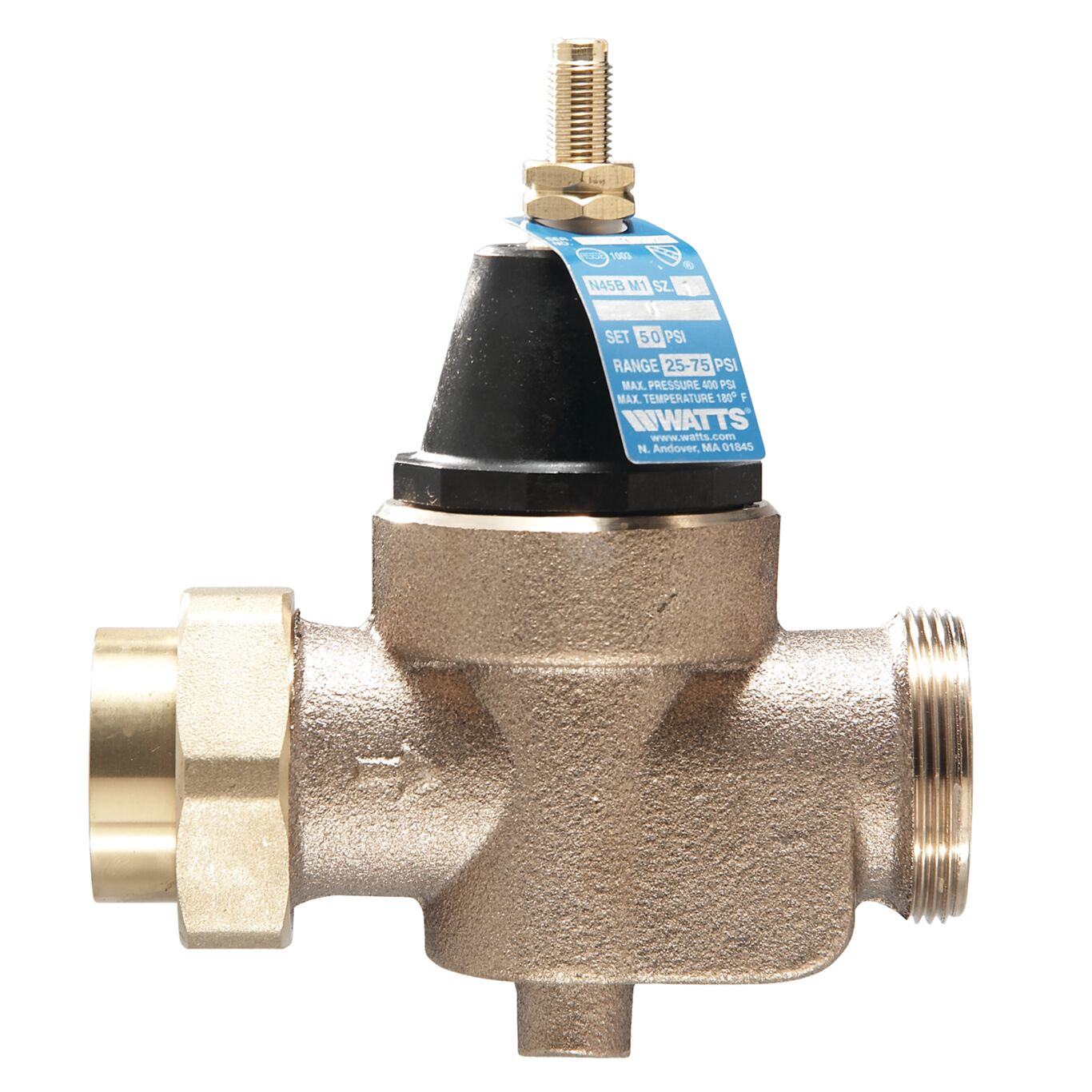

1 In Bronze Water Pressure Reducing Valve, Npt Thread Union X Npt Female, Elastomer Disc, Max 400 Psi, Adjust 25-75 Psi

This 1 inch water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a bronze body construction, NPT threaded union inlet and NPT female outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 PSI (27.6 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).

Product Features

  • Integral stainless steel strainer removable for cleaning
  • Thermoplastic seat and cage
  • Sealed spring cage for accessible outdoor or pit installations
  • NPT threaded union inlet and NPT female outlet
  • ASSE 1003, CSA and UPC listed
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Bronze
BrandName Watts
Corrosion Resistant Coating No
Disc Material Reinforced EPDM
Gauge Option No Gauge
GDS Status Registered
Inlet Connection Size 1 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
LeadFree NO
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 27.60
Maximum Working Pressure-PSI 400
Minimum Temperature-Fahrenheit 33
ModelNumber N45BM1-U 1
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0007760
Series N45B
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Valve Style Standard
