P60M1-0-25-Z6

Part of the P60 Series

Ordering Code: 0354548

UPC: 098268084825

Lead Free: YES

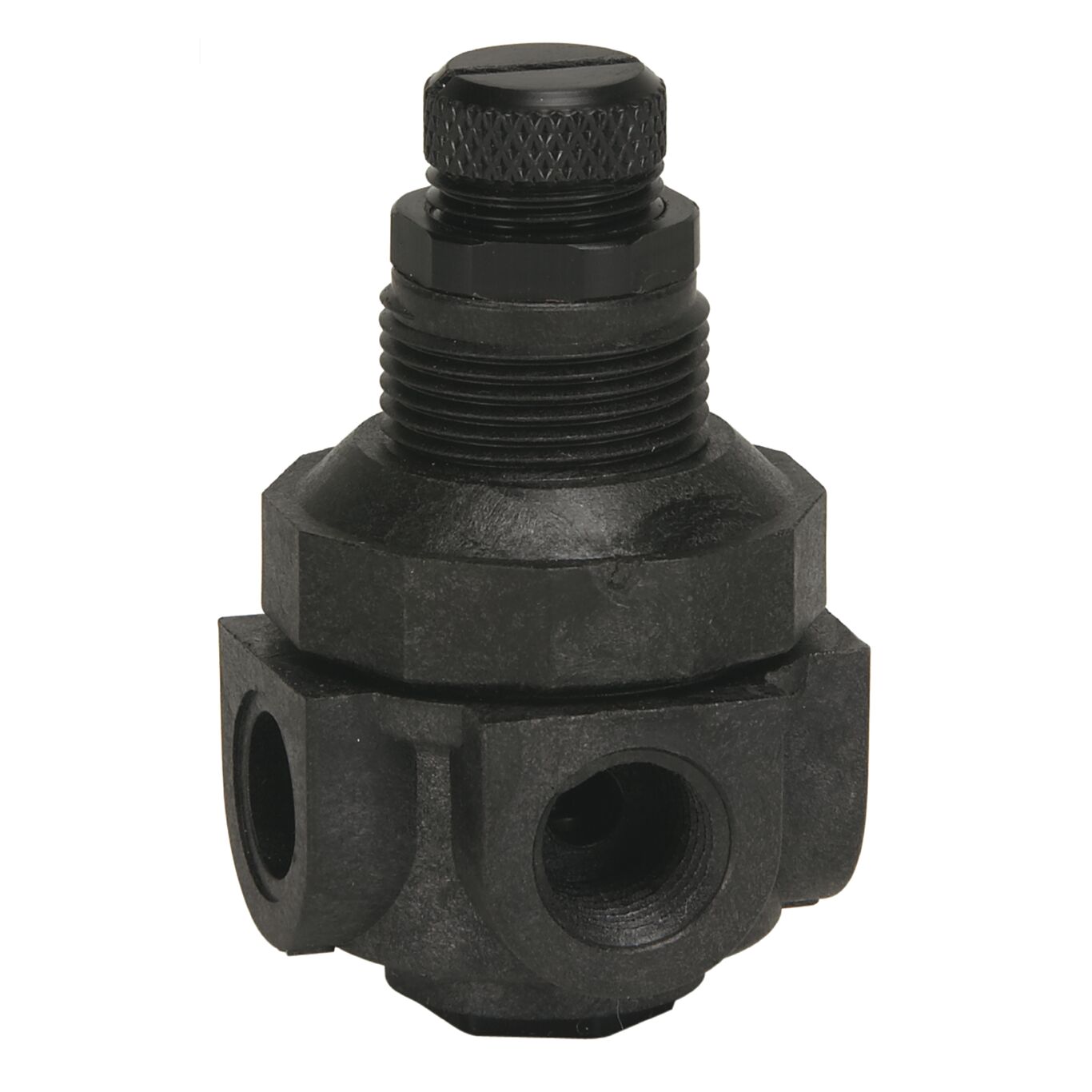

1/4 In Miniature Plastic Water Pressure Regulator, Npt Female, Acetal Plug, 0-25 Psi, Eu Approved

This 1/4 inch miniature water pressure regulator is compact and lightweight with a high flow capacity. It is used in general purpose and OEM applications where a small economical package is required. It is also suitable for deionized water applications. It has a balanced piston design for applications to regulate pressure in systems that require a constant downstream and accurate flow performance. It consists of a thermoplastic body construction, NPT female connections in a straight through gauge port, a rubber disc, diaphragm, and seals of FDA grade elastomers, stainless steel internal metal components. The reduced pressure range is 0 to 25 PSI (0 to 1.76 BAR) and the temperature range is 33 to 150 degrees F (0.5 to 66 degrees C). This valve has been tested to comply with FDA and EU agency standards.

Product Features

  • Compact design and lightweight construction
  • All internal metal components in contact with fluid are of 300 series stainless steel
  • All internal rubber components such as disc, diaphragm and seals are all FDA grade elastomers
  • Corrosion resistant thermoplastic body
Specifications
Adjustable Reduced Pressure Range 0 to 25
Adjustable Reduced Pressure Range-BAR 0 to 1.72
Body Material Plastic
BrandName Watts
Corrosion Resistant Coating Yes
Disc Material Buna-N
Gauge Option No Gauge
High Pressure Reduced Pressure Range Does Not Apply To Product
High Pressure Reduced Pressure Setting Does Not Apply To Product
Inlet Connection Size 1/4 IN
Inlet Connection Type Female Threaded
LeadFree YES
Maximum Operating Temperature-Fahrenheit 150
Maximum Working Pressure-BAR 20.70
Maximum Working Pressure-PSI 300
Minimum Temperature-Fahrenheit 33
ModelNumber P60M1-0-25-Z6
Outlet Connection Size 1/4 IN
Outlet Connection Type Female Threaded
Part Number 0354548
Series P60
Strainer No
Thermal Expansion Bypass No
Valve Style Standard
