X65B 3/4

Discontinued

Part of the X65B Series

Ordering Code: 0045620

UPC: 098268386530

Lead Free: NO

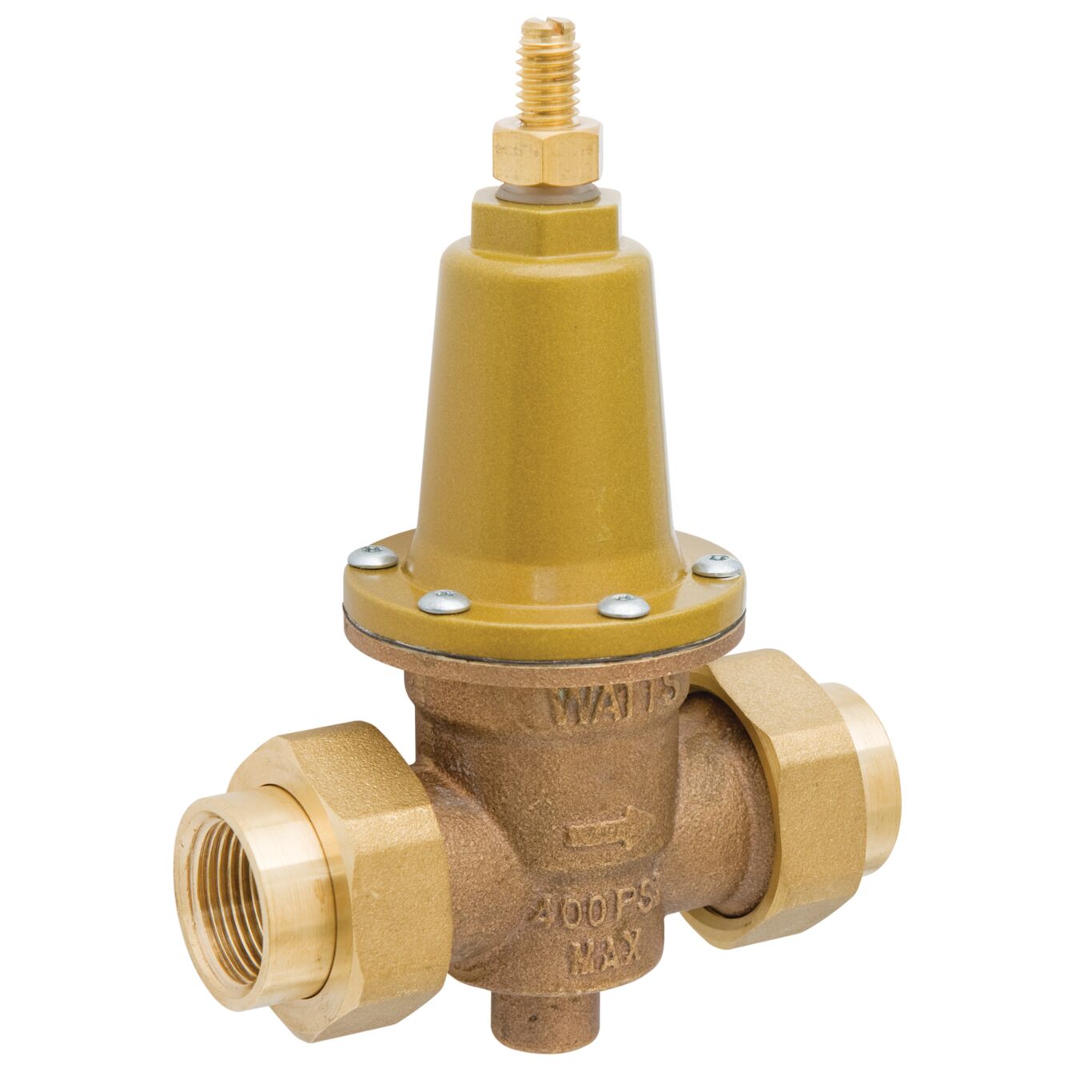

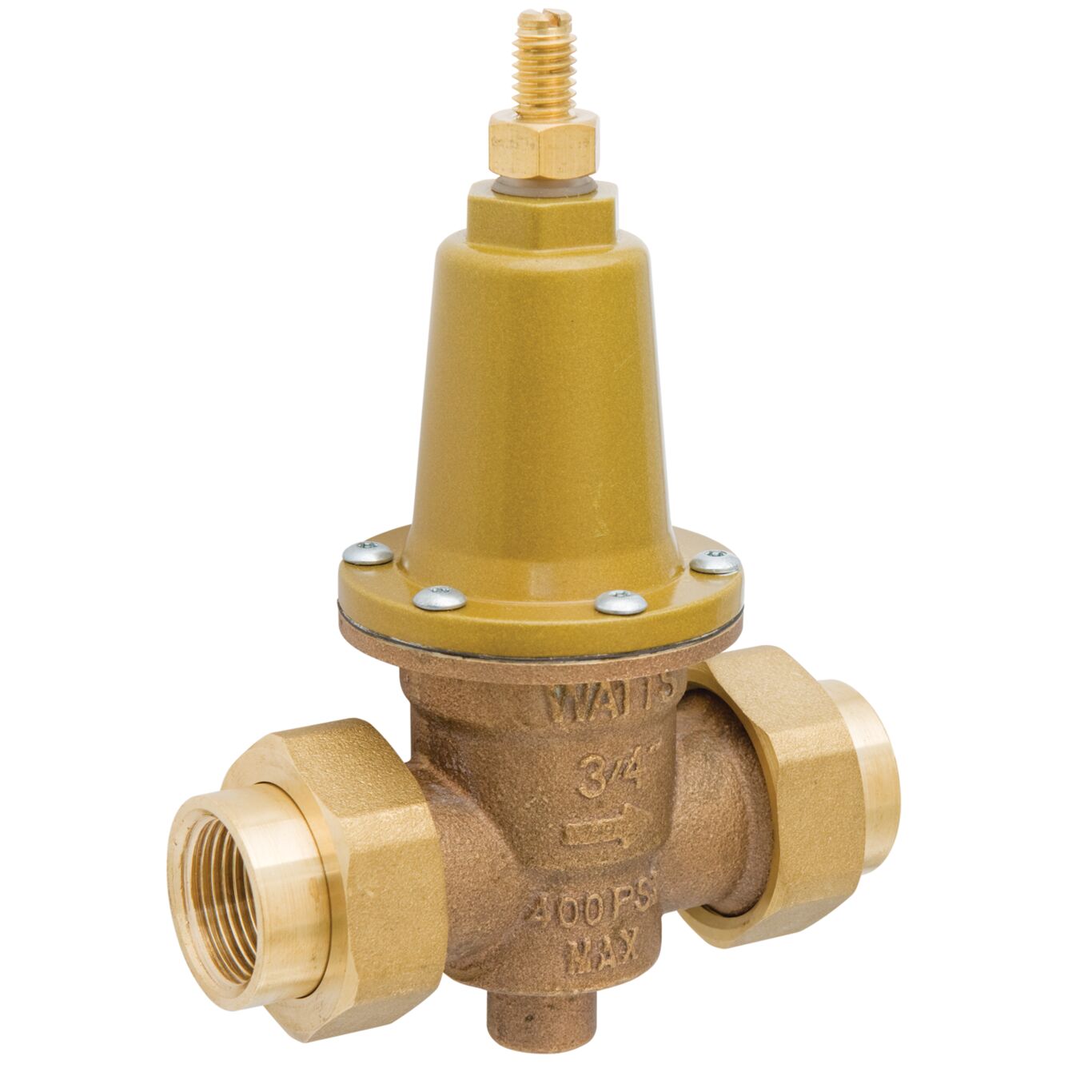

3/4 In Bronze Water Pressure Reducing Valve, Npt Thread Female X Npt Female, Range 20-80 Psi

This 3/4 inch cartridge style water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing components and reduce the water consumption for commercial, industrial and residential applications. It features a bronze body, thermoplastic seat cartridge, NPT threaded female inlet and outlet connections, reinforced diaphragm, and a bypass valve to control thermal expansion pressure. The reduced pressure rating is set at 50 PSI (345 kPa). The maximum working pressure is 400 PSI (27.6 BAR) and temperature range is 33 to 180 degrees F (0.5 to 82 degrees C).

Product Features

  • Great flow performance with low fall off pressure
  • Sealed spring cage for accessible outdoor or pit installations
  • NPT threaded female inlet and outlet connections
  • Bypass valve controls thermal expansion pressure
Specifications
Adjustable Reduced Pressure Range 20 to 80
Adjustable Reduced Pressure Range-BAR 1.4 to 5.5
Body Material Bronze
BrandName Watts
Corrosion Resistant Coating No
Disc Material Reinforced EPDM
Gauge Option No Gauge
High Pressure Reduced Pressure Range Does Not Apply To Product
High Pressure Reduced Pressure Setting Does Not Apply To Product
Inlet Connection Size 3/4 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
LeadFree NO
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 27.60
Maximum Working Pressure-PSI 400
Minimum Temperature-Fahrenheit 33
ModelNumber X65B 3/4
Outlet Connection Size 3/4 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0045620
Series X65B
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Valve Style Standard
