315-M2
Steam Safety Relief Valves, ASME Section IV
315-M2
Steam Safety Relief Valves, ASME Section IV
Features
- High-capacity valve protects low pressure steam heating and process equipment
- Seat is located above drain to prevent water from being trapped and sediment from fouling the seat
- Bronze body and stainless steel spring
- Non-sticking PTFE disc

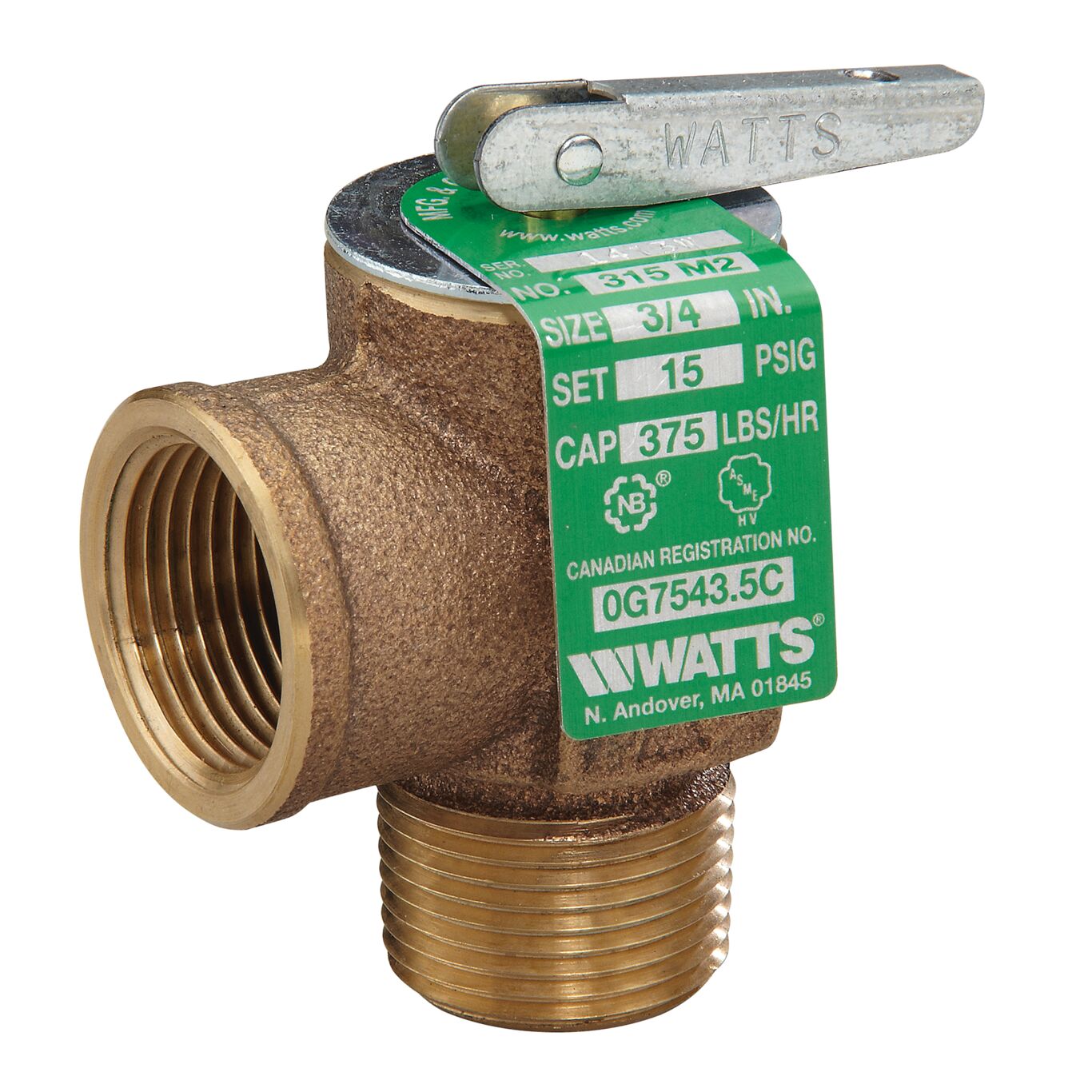

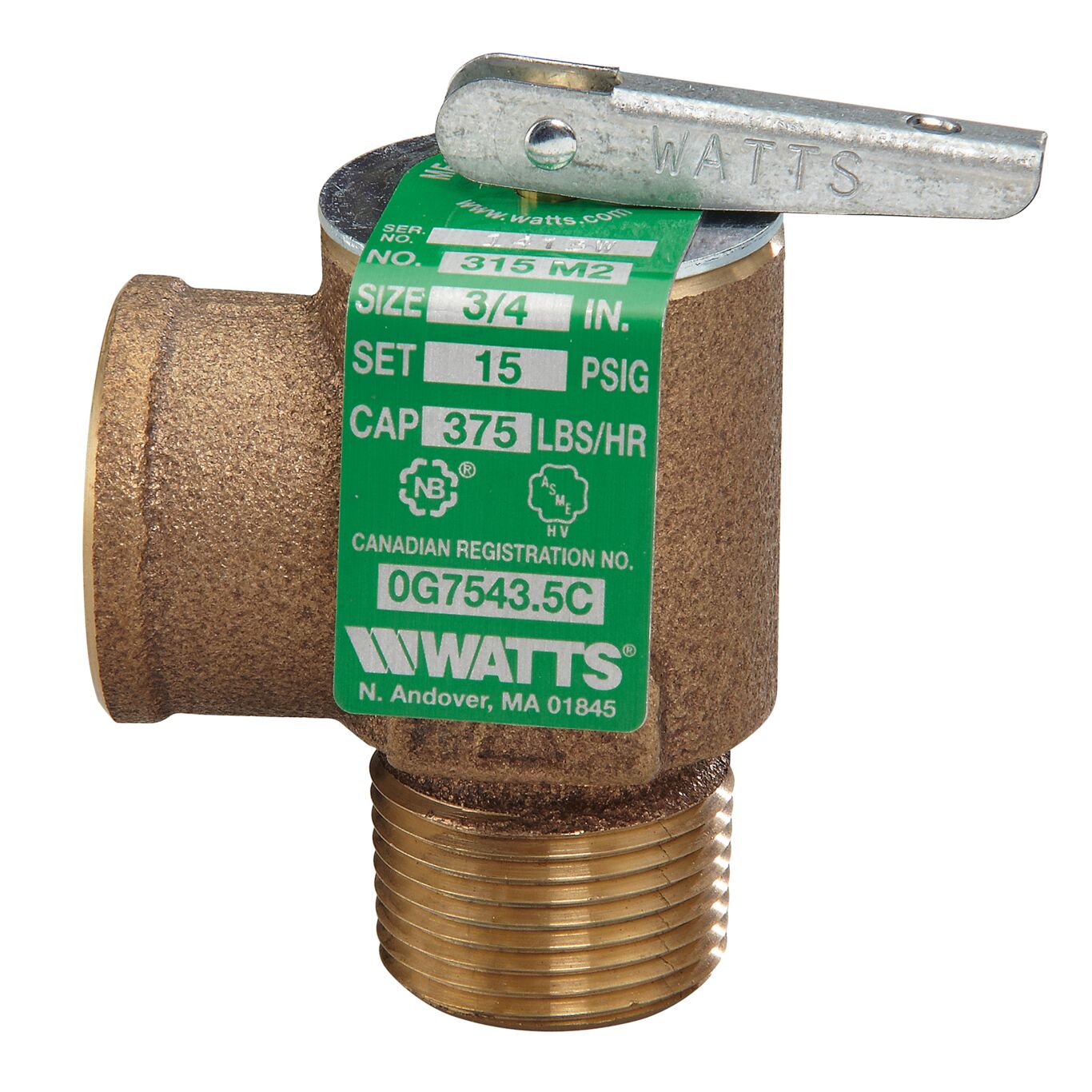

Series 315-M2 steam safety relief valves are used in commercial and industrial applications for low-pressure steam heating boilers and process equipment. They have a bronze body construction with NPT threaded male inlet and threaded female outlet (drain) connection, stainless steel spring, top-guided stem, and non-stick PTFE® disc to metal seating. ASME Section IV at 15 psi (103 kPa) set point.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 315-M2
