F41
Discontinued
Safety Relief Valves For Steam Boilers, ASME Section VIII Rated

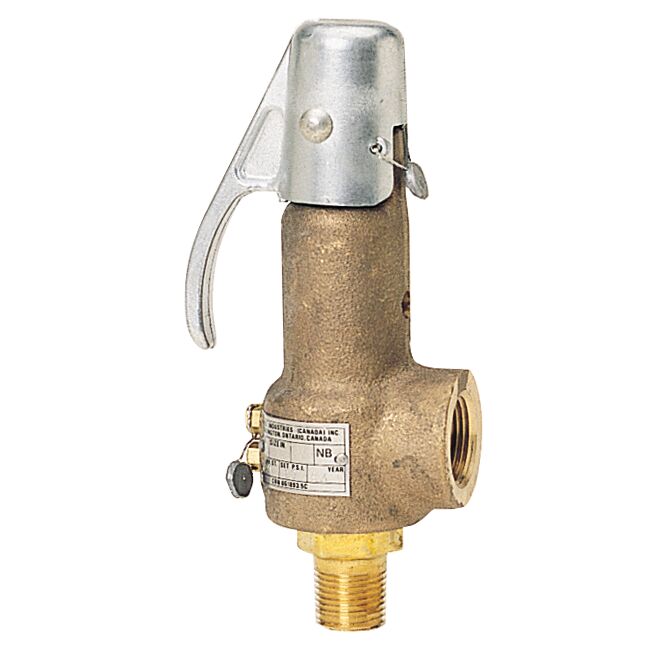

Watts Series Figure 41 steam safety relief valves are ASME Section VIII valves used for over-pressure protection of unfired pressure vessels, steam pressure reducing valve stations, and other steam service equipment with operating pressures from 5 to 250 psi (.34 to 17.2 bar). Series Figure 41 is a high capacity safety relief valve with a top guide and full nozzle. It consists of a bronze body (sizes 1/2 to 2-1/2 in.) with NPT threaded male inlet and threaded female outlet (drain) connections, or a cast iron body (sizes 1-1/2 to 6 in.) construction with flanged connections. ASME, Section VIII rated.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific F41
No results found
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
ASSE | CSA | FM Approvals | NSF |
UL | ULC | USC | WQA |
