F41A
Discontinued
ASME Safety Valves

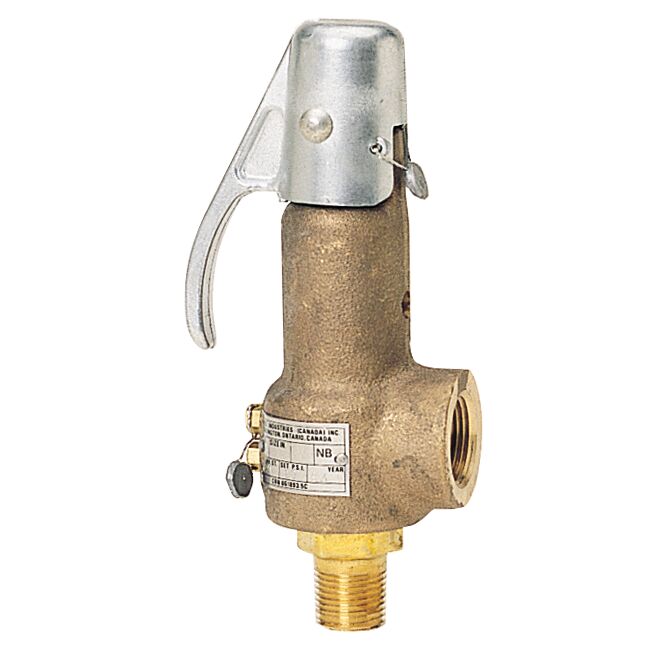

Watts Series Figure 41A Safety Relief Valves for air, gas, and vapours are ASME Section VIII valves used for compressors, intercoolers, aftercoolers and receivers, air makeup units, gas burners, pneumatic conveying/elevating equipment, dryers and other pressure vessels and piping, that handle air, gases, and vapours to 250psi. Series Figure 41A is a high capacity safety relief valve with a top guide and full nozzle. It consists of a bronze body (sizes 1/2 to 2-1/2 in.) with NPT threaded male inlet and threaded female outlet (drain) connections, or a cast iron body (sizes 1-1/2 to 6 in.) with flanged connections. ASME Section VIII rated.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific F41A
No results found
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
