FIG41
Discontinued
Steam Safety Relief Valves, ASME Section VIII
FIG41
Discontinued
Steam Safety Relief Valves, ASME Section VIII

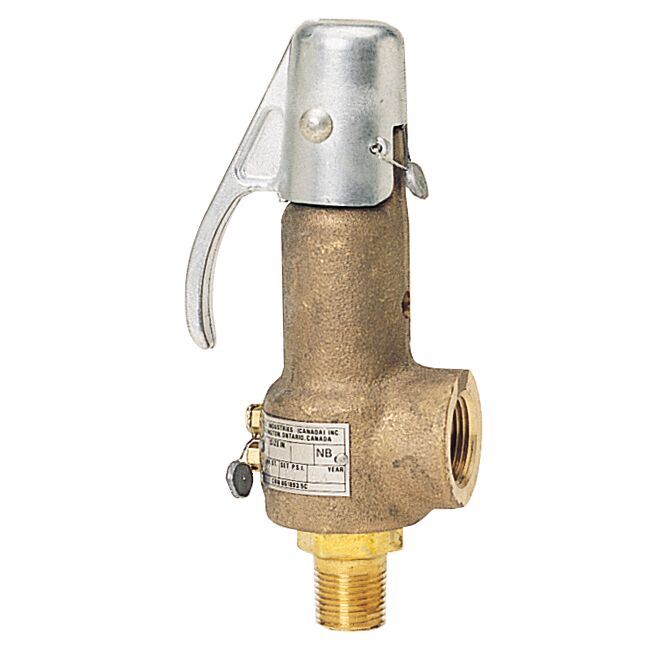

Series Figure 41 Steam Safety Relief Valves are ASME Section VIII valves used for over-pressure protection of unfired pressure vessels, steam pressure reducing valve stations, and other steam service equipment with operating pressures from 5 to 250psi (.34 to 17.2 bar). They are high capacity safety relief valves with a top guide and full nozzle. They have a bronze body (sizes 1/2 to 2 1/2 in.) with NPT threaded male inlet and threaded female outlet (drain) connections, or a cast iron body (sizes 1 1/2 to 6 in.) construction with flanged connections. ASME, Section VIII rated.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific FIG41
