LFBP30 10-50 1/2

Part of the LFBP30 Series

Ordering Code: 0121399

UPC: 098268584011

Lead Free: YES

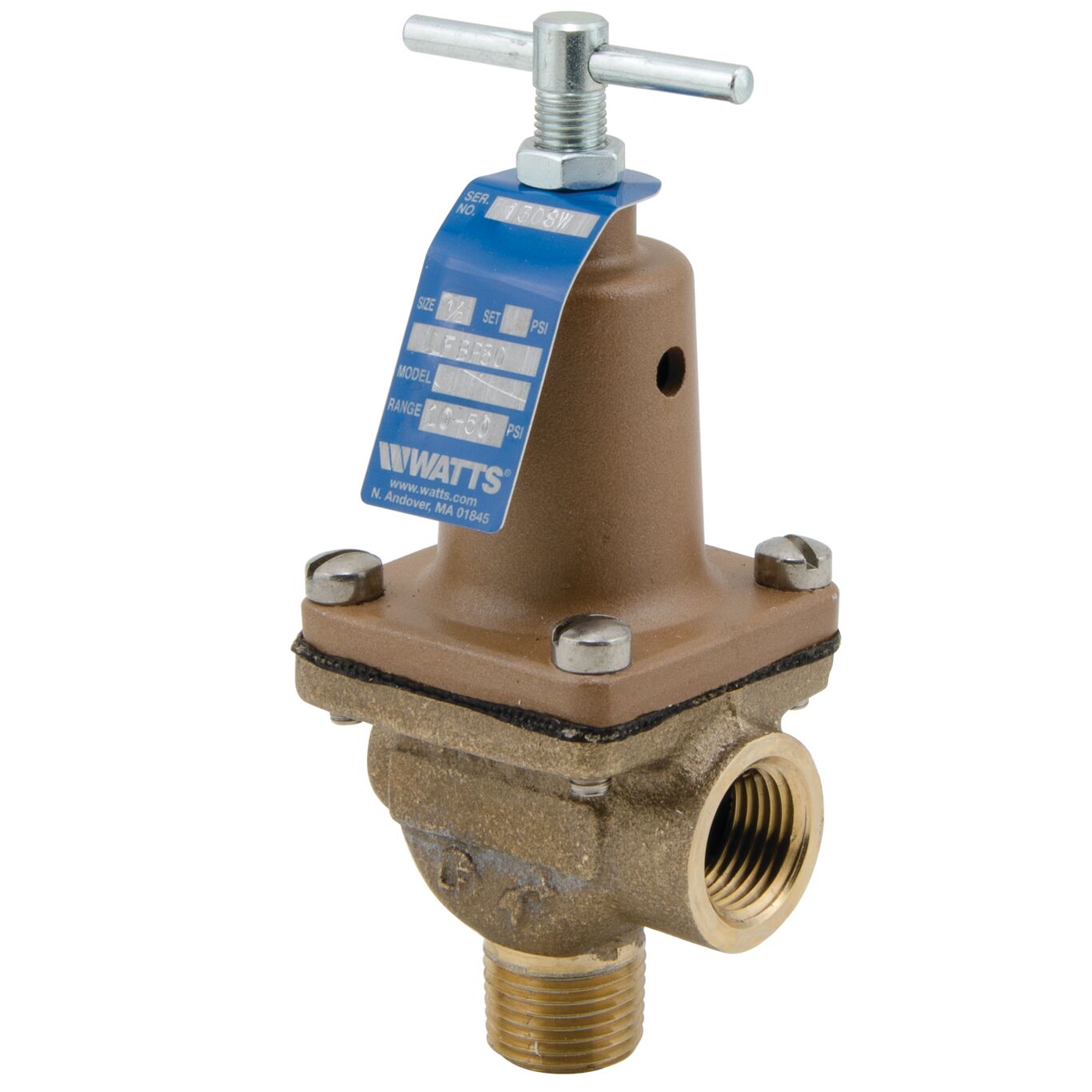

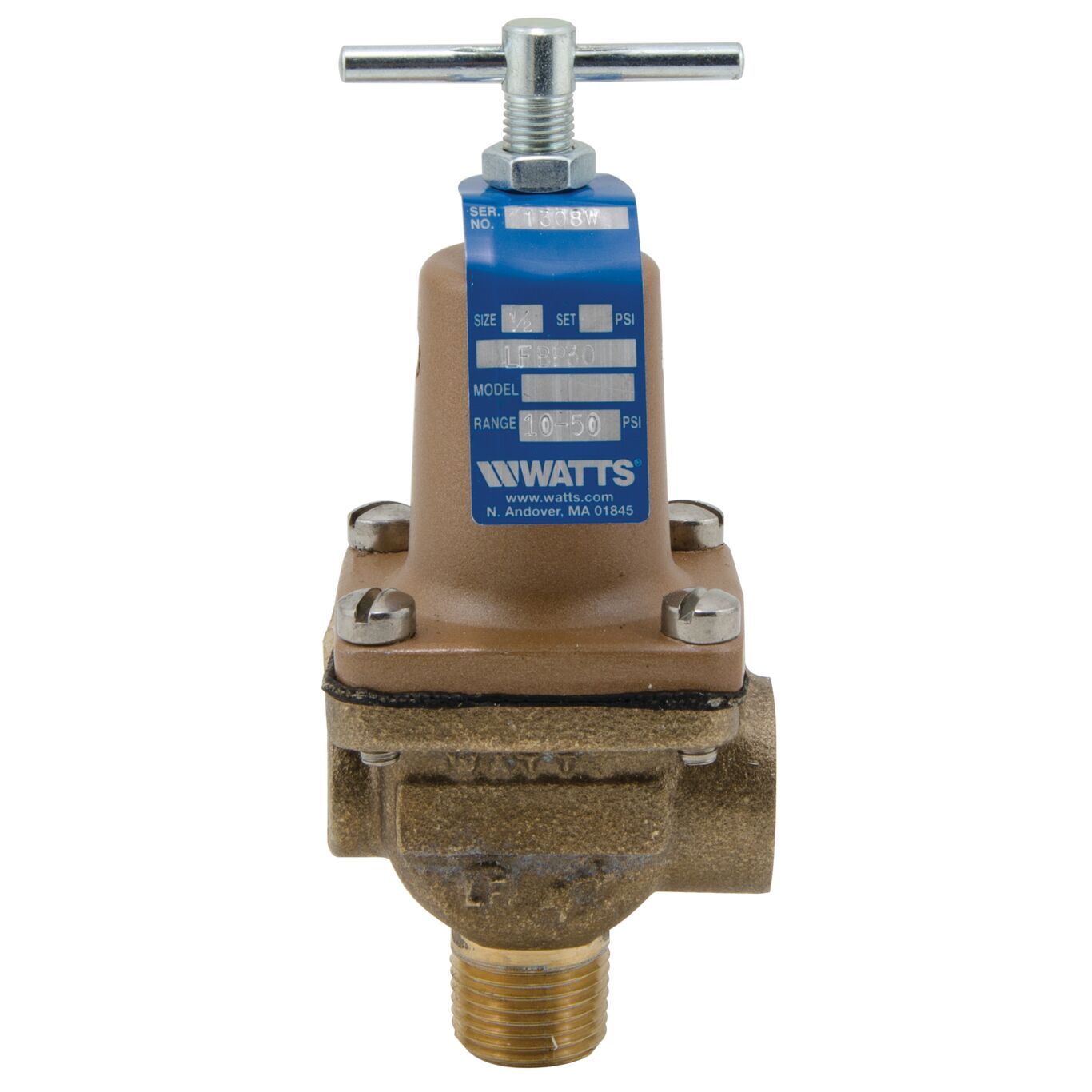

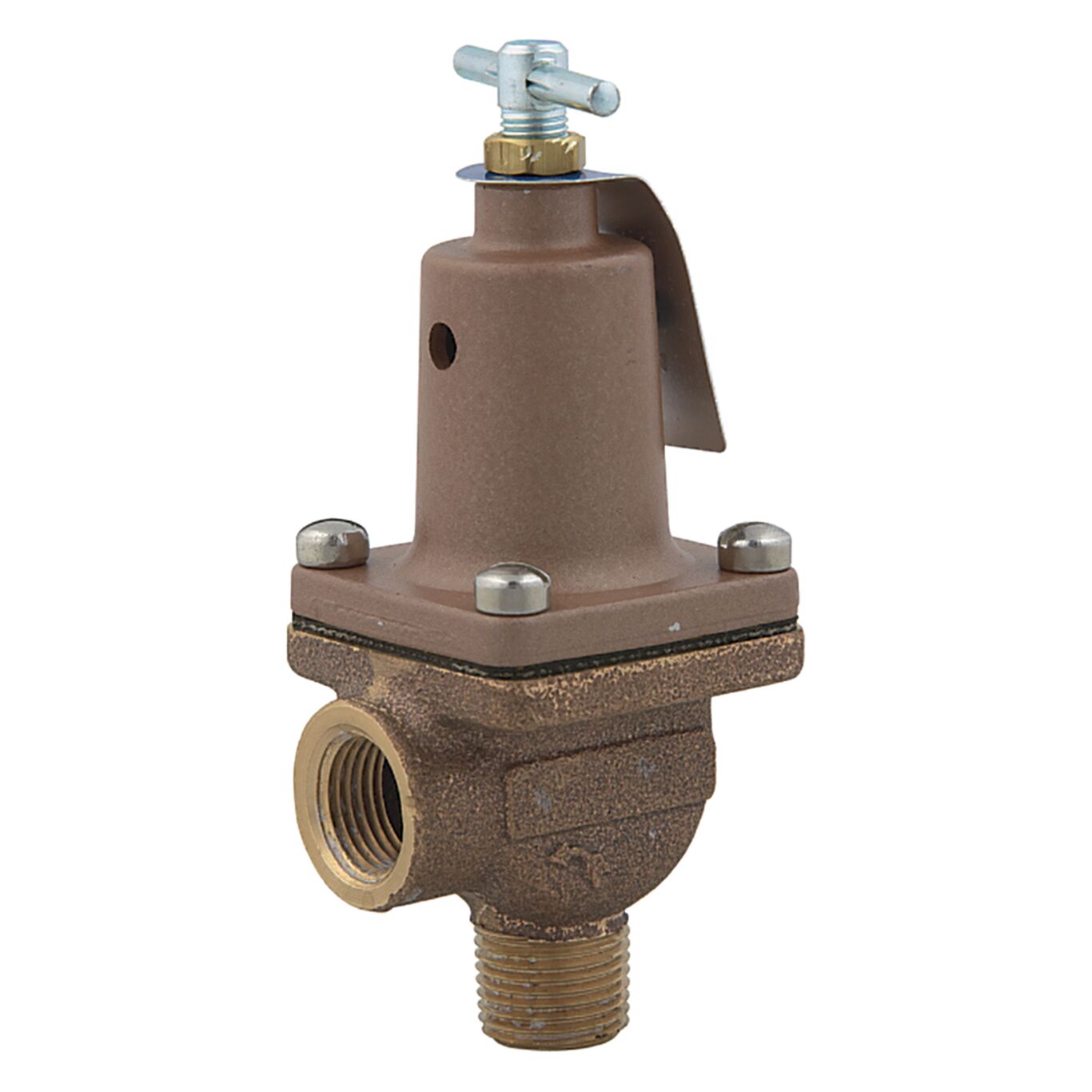

1/2 In Lead Free Diaphragm Operated Bypass Control Relief Valve, Adjustable 10-50 psi

This 1/2 inch bypass control relief valve is used in commercial, residential and industrial applications to regulate liquid pressure as supplied by a positive pressure pump. It is a diaphragm-operated type valve that protects equipment by opening at an adjustable range of 10 to 50 psi (0.1 to 3.4 bar) to allow excess volume to be by-passed back to the source. It consists of a lead free alloy body with NPT threaded male inlet and NPT threaded female outlet, sensitive rubber diaphragm, Buna-N disc, tee handle, a spring, and adjustment handle separated from liquid elements.

Product Features

  • Sensitive rubber diaphragm
  • Lead free body construction
  • Adjustable opening pressure range at 45 to 100 psi
  • T-handle facilitates pressure change
Specifications
Body Material Lead Free Copper Silicon Alloy
Brand Name Watts
GPM-When Relieved Does Not Apply to Product
Inlet Connection Size 1/2 IN
Inlet Connection Type Male Threaded
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-PSI 50
Model Number LFBP30 10-50 1/2
Outlet Connection Size 1/2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0121399
Pressure Range 10 to 50 PSI
Pressure Relief Setting-PSI 25
Pressure Steam Discharge Capacity Does Not Apply to Product
Protection Type Pressure
Series LFBP30
Shank Length Does Not Apply to Product
Temperature Steam Discharge Capacity Does Not Apply to Product
Thermostat Material Does Not Apply To Product
