174-Z3-T-150 1 1/2

Part of the 174A Series

Ordering Code: 0279108

UPC: 098268676204

Lead Free: NO

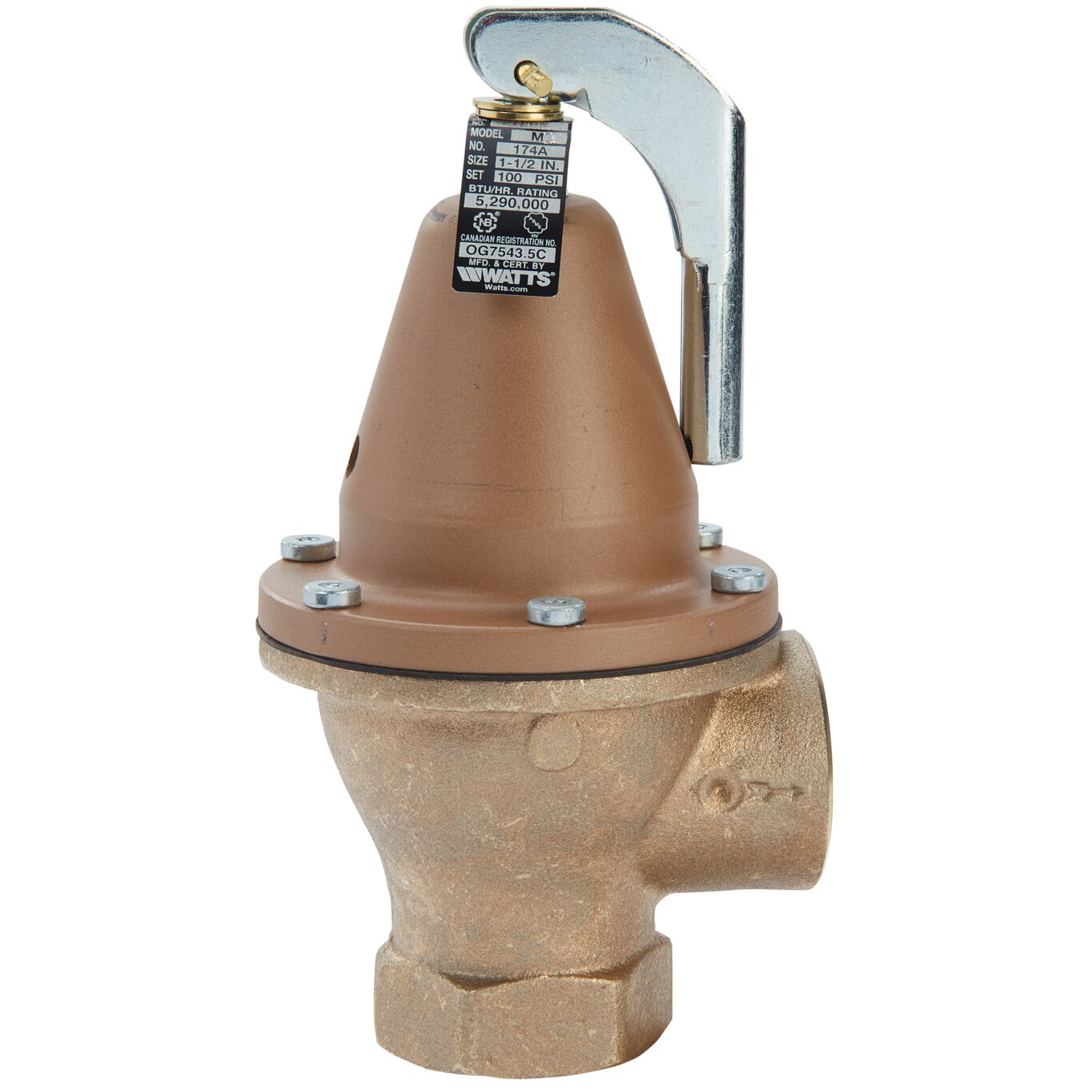

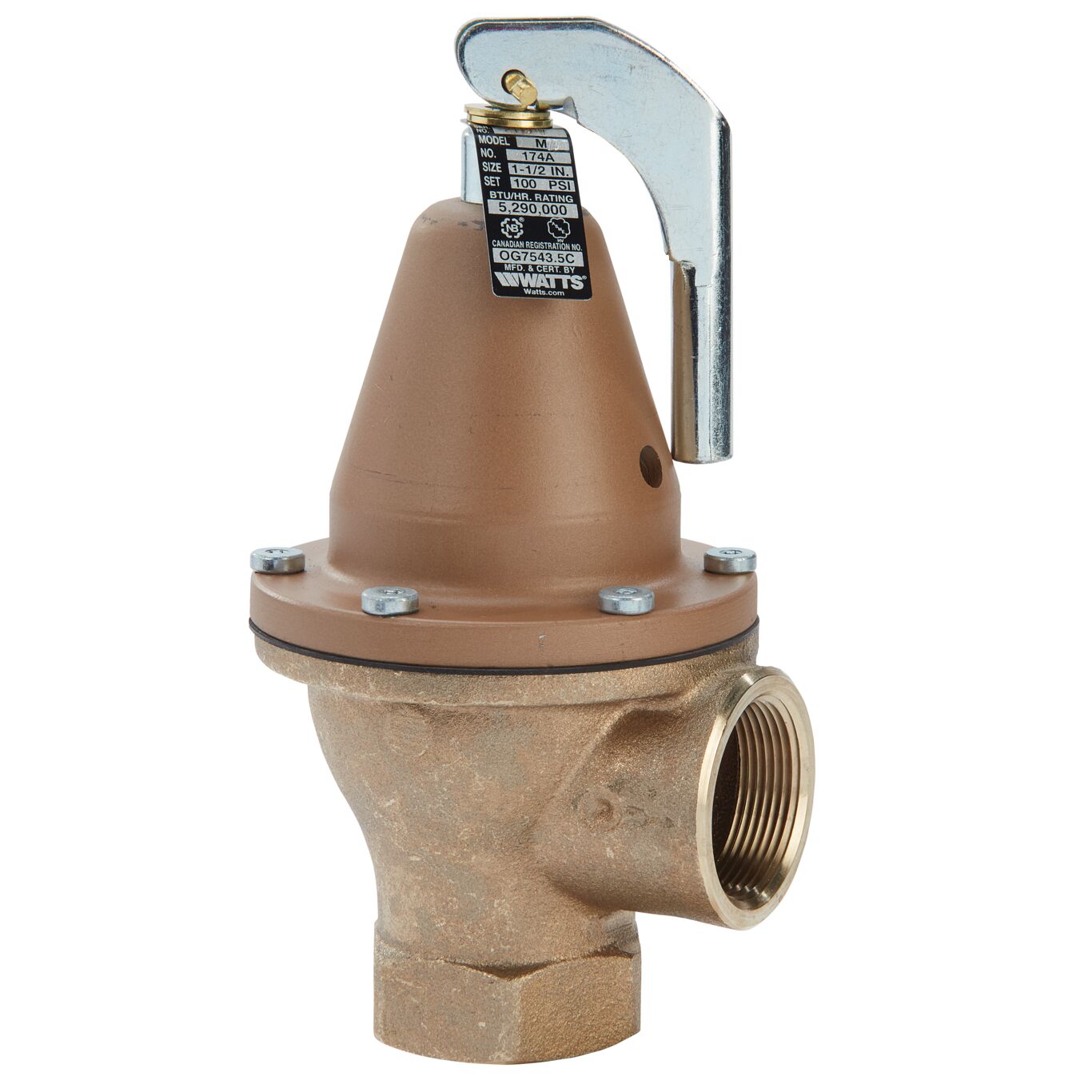

1 1/2 In Boiler Pressure Relief Valve, 150 psi

Specifications
Body Material Bronze
Brand Name Watts
Inlet Connection Size 1 1/2 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 250
Model Number 174-Z3-T-150 1 1/2
Outlet Connection Size 1 1/2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0279108
Pressure Range 30 to 150 PSI
Pressure Relief Setting-PSI 150
Pressure Steam Discharge Capacity 7630000 BTU per hour at 150 PSI
Protection Type Pressure
Series 174A
