3L-075 3/4

Part of the 3L Series

Ordering Code: 0011086

UPC: 098268001402

Lead Free Model Available

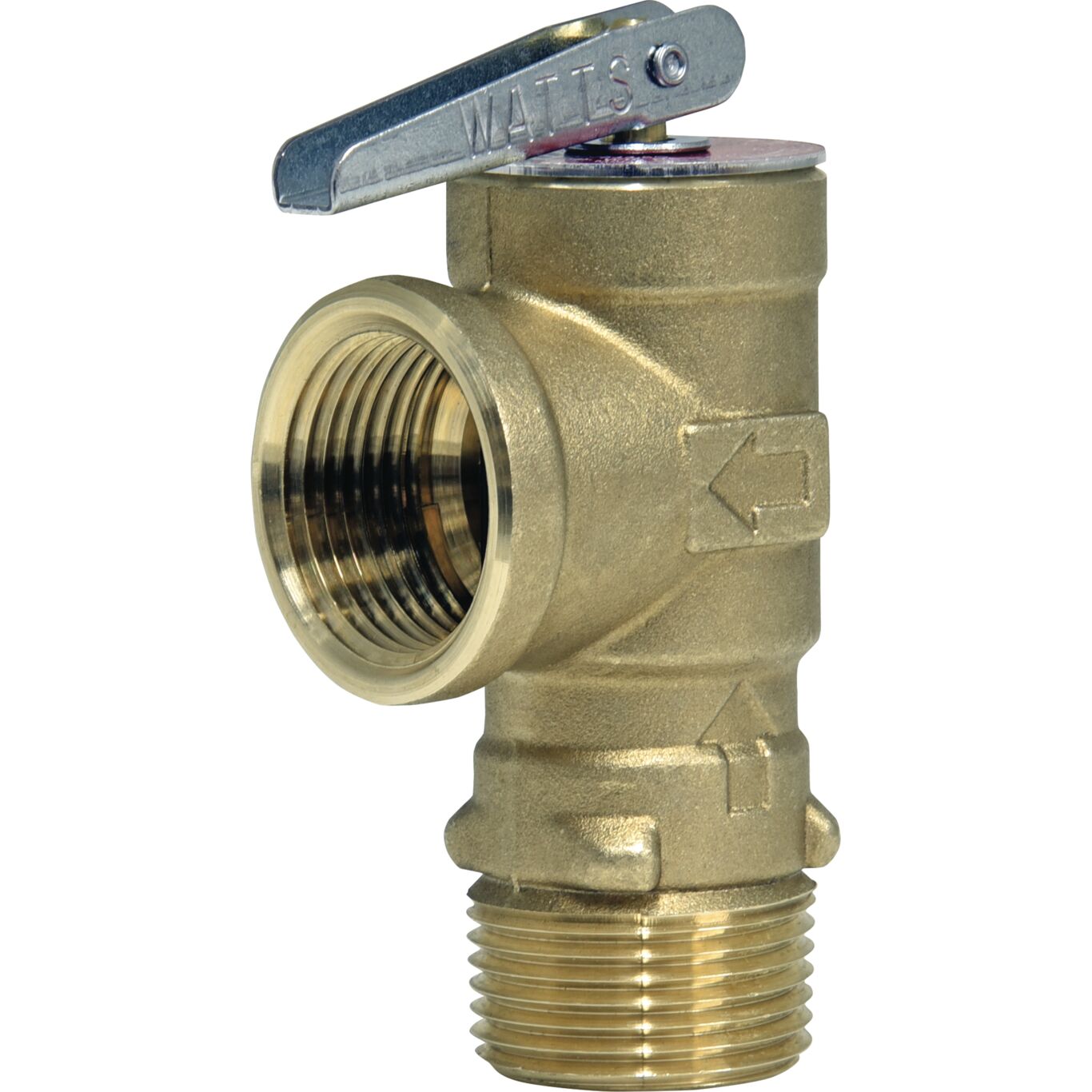

3/4 In Brass Poppet Type Pressure Relief Valve, 75 Psi, Test Lever

This 3/4 inch pressure relief valve is used in residential applications to protect against excessive pressure on domestic storage tanks and tankless water heaters. It consists of a brass body construction with NPT threaded male inlet and NPT threaded female (drain) outlet, test lever, and stainless steel spring. It is ANSI Z21.22 approved, ASME rated and design certified and listed by CSA. The pressure relief is set at 75 PSI (5.2 BAR).

Product Features

  • Test lever included
  • ASME rated and CSA certified
  • Pressure relief is set at 75 PSI (5.2 BAR)
  • Brass body construction
Specifications
Body Material Bronze
BrandName Watts
GDS Status Registered
GPM-When Relieved Does Not Apply to Product
Inlet Connection Size 3/4 IN
Inlet Connection Type Male Threaded
Inlet Thread Type NPT
LeadFree NO
Maximum Temperature-Fahrenheit 210
Maximum Working Pressure-PSI 56
ModelNumber 3L-075 3/4
Outlet Connection Size 3/4 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0011086
Pressure Range Does Not Apply to Product
Pressure Relief Setting-PSI 75
Pressure Steam Discharge Capacity 200,000 BTU/Hr
Protection Type Pressure
Series 3L
Shank Length Does Not Apply to Product
Temperature Steam Discharge Capacity Does Not Apply to Product
Thermostat Material Does Not Apply To Product
Thermostat Probe Length Does Not Apply to Product
