53L

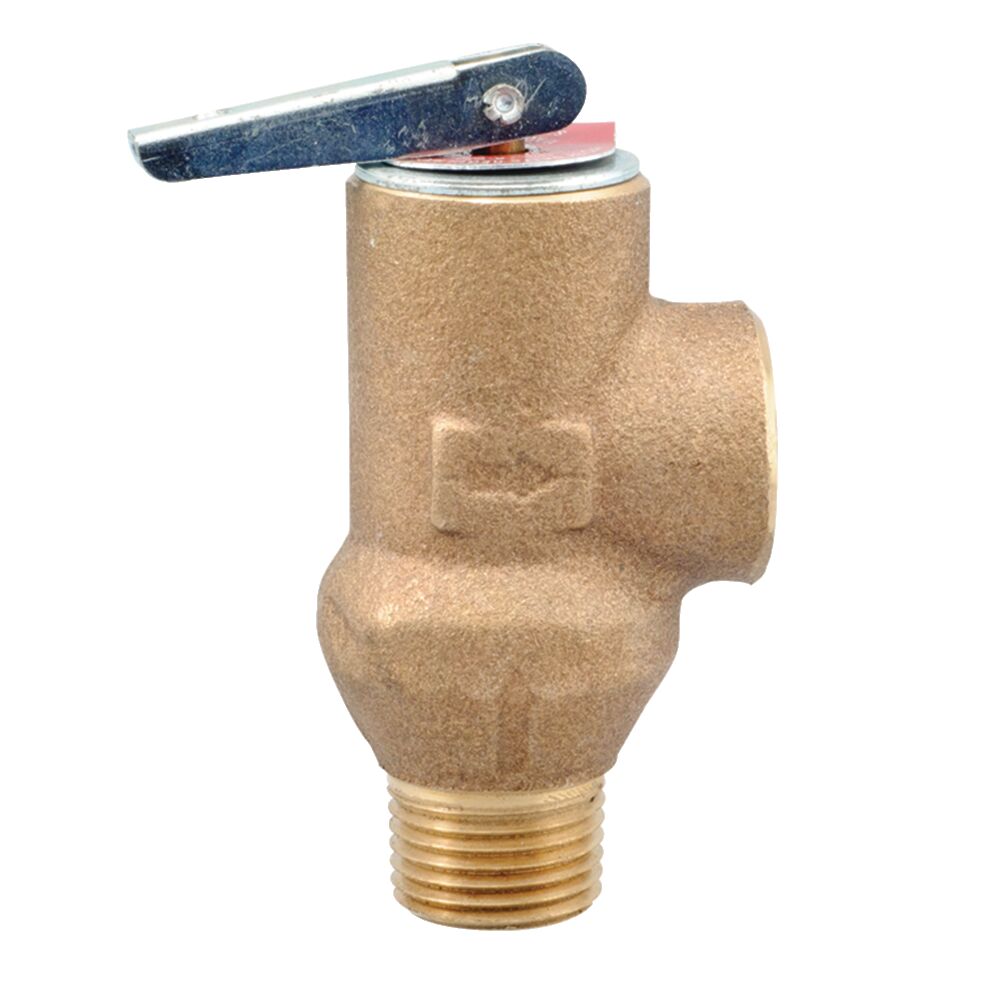

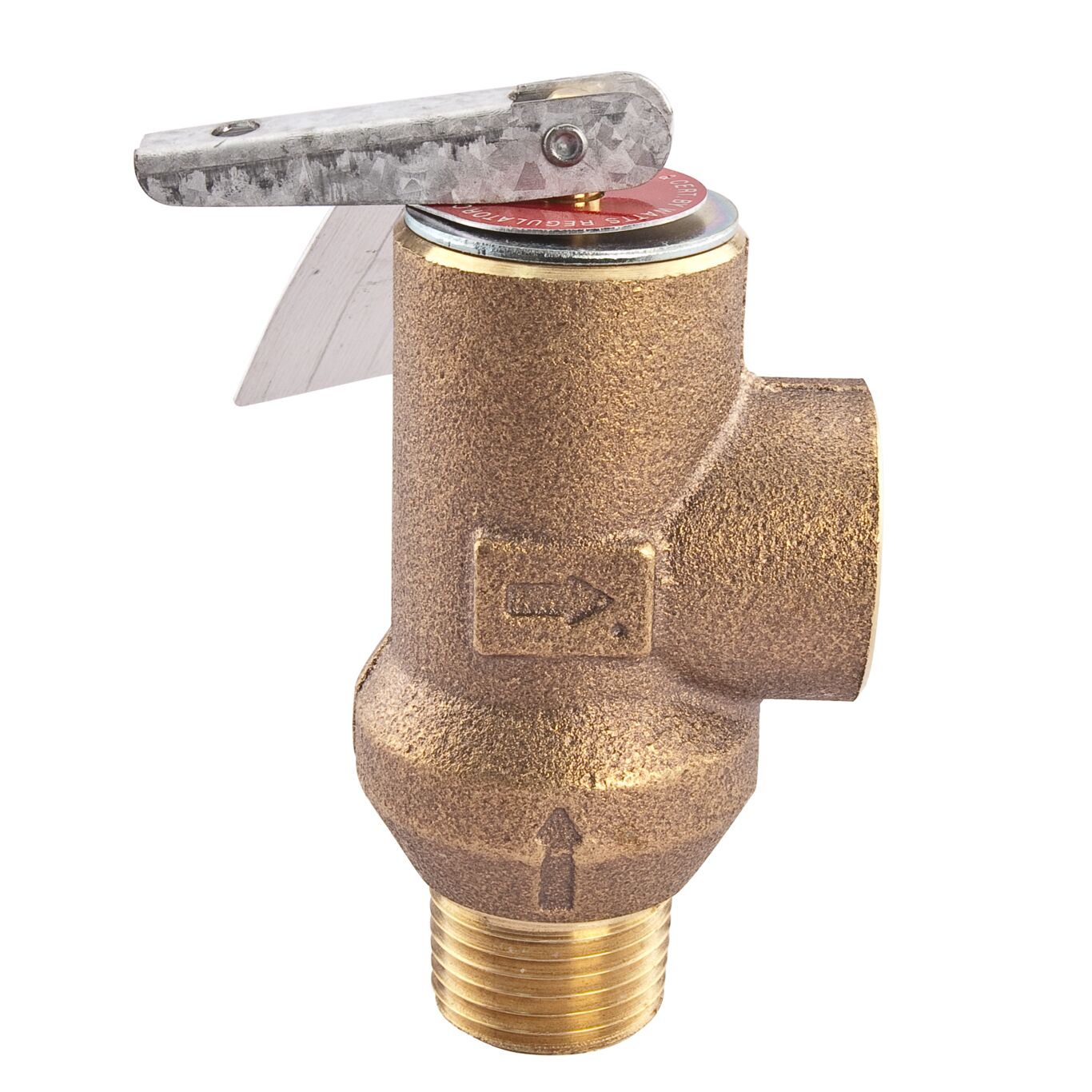

Pressure Relief Valves with Test Lever
53L
Pressure Relief Valves with Test Lever
Features
- Valve protects domestic storage tanks and tankless water heaters from excessive pressure
- Furnished with test lever
- ½ in NPTF
- Model available for outdoor solar applications
Series 53L Pressure Relief Valves are used in residential applications to protect against excessive pressure on domestic storage tanks and tankless water heaters. They have a bronze body construction with NPTF threaded male inlet and NPTF threaded female (drain) outlet connections, stainless steel spring, and test lever. ANSI Z21.22 approved, design certified and listed by CSA. Pressure Range: 75 to 175 psi (5.2 to 12.1 bar). Standard Pressure Setting: 75 psi (516.7 kPa). Optional Settings: 100, 125, and 150 psi (6.9, 8.6, and 10.3 bar); also available at 50 psi (3.45 bar) setting.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 53L
