LF174A-75 1

Part of the LF174A Series

Ordering Code: 0121494

UPC: 098268585858

Lead Free: YES

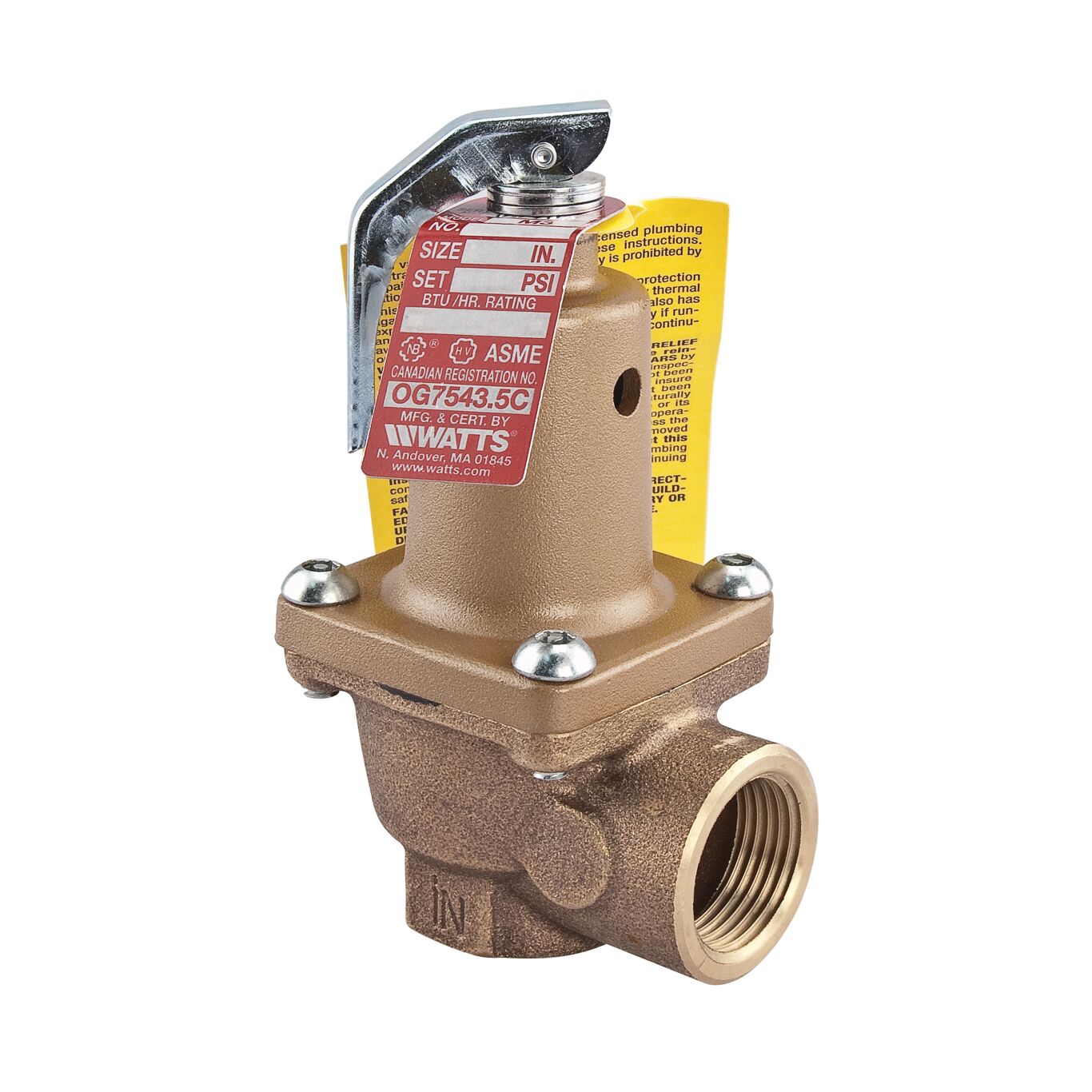

1 In Lead Free Boiler Pressure Relief Valve 75 Psi, Threaded Female Connections

This 1 inch lead free boiler pressure relief valve is used in hot water heating and domestic supply boiler applications to protect against excessive pressures on all types of hot water heating supply boiler equipment. It consists of a lead free body construction with NPT threaded female inlet and NPT threaded female outlet (drain) connections, non-metallic disc-to-metal seating, stainless steel spring, and test lever. It resists corrosive water conditions, sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief, not as an operating control. The pressure setting is 75 PSI (517.1 kPa), with corresponding ratings of 2,055,000 BTU/hr.

Product Features

  • Non mechanical seat-to-disc alignment will not stick or freeze
  • Automatic reseating
  • Lead free body
  • Spring loaded
Specifications
Body Material Lead Free Copper Silicon Alloy
BrandName Watts
Inlet Connection Size 1 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
LeadFree YES
Maximum Temperature-Fahrenheit 250
Maximum Working Pressure-PSI 56
ModelNumber LF174A-75 1
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0121494
Pressure Range 30 to 150 PSI
Pressure Relief Setting-PSI 75
Pressure Steam Discharge Capacity 2055000 BTU per hour at 75
Protection Type Pressure
Series LF174A
