LF530C 3/4
×
![]()
Part of the LF530C Series
Ordering Code: 0121626
UPC: 098268587807
Lead Free: YES

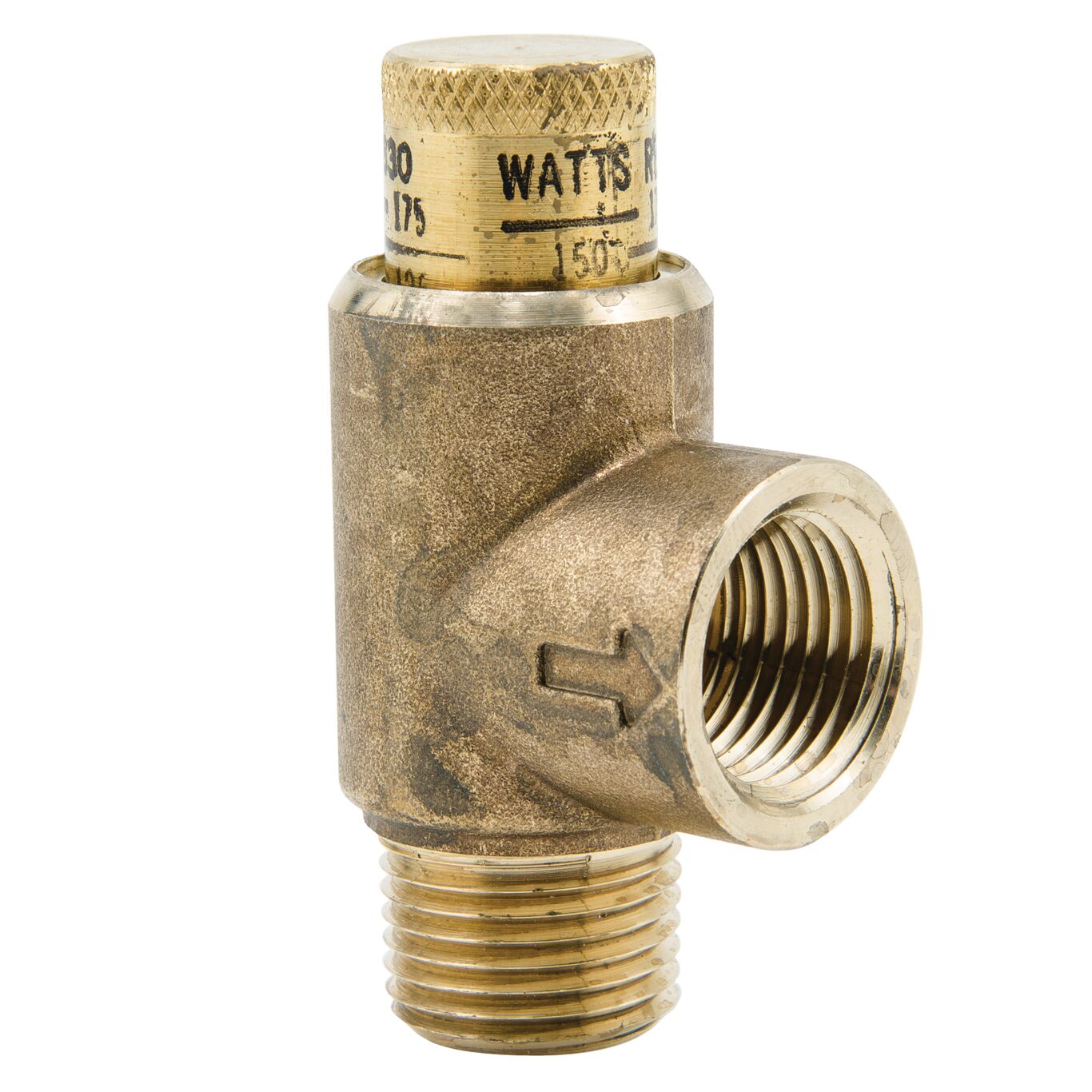

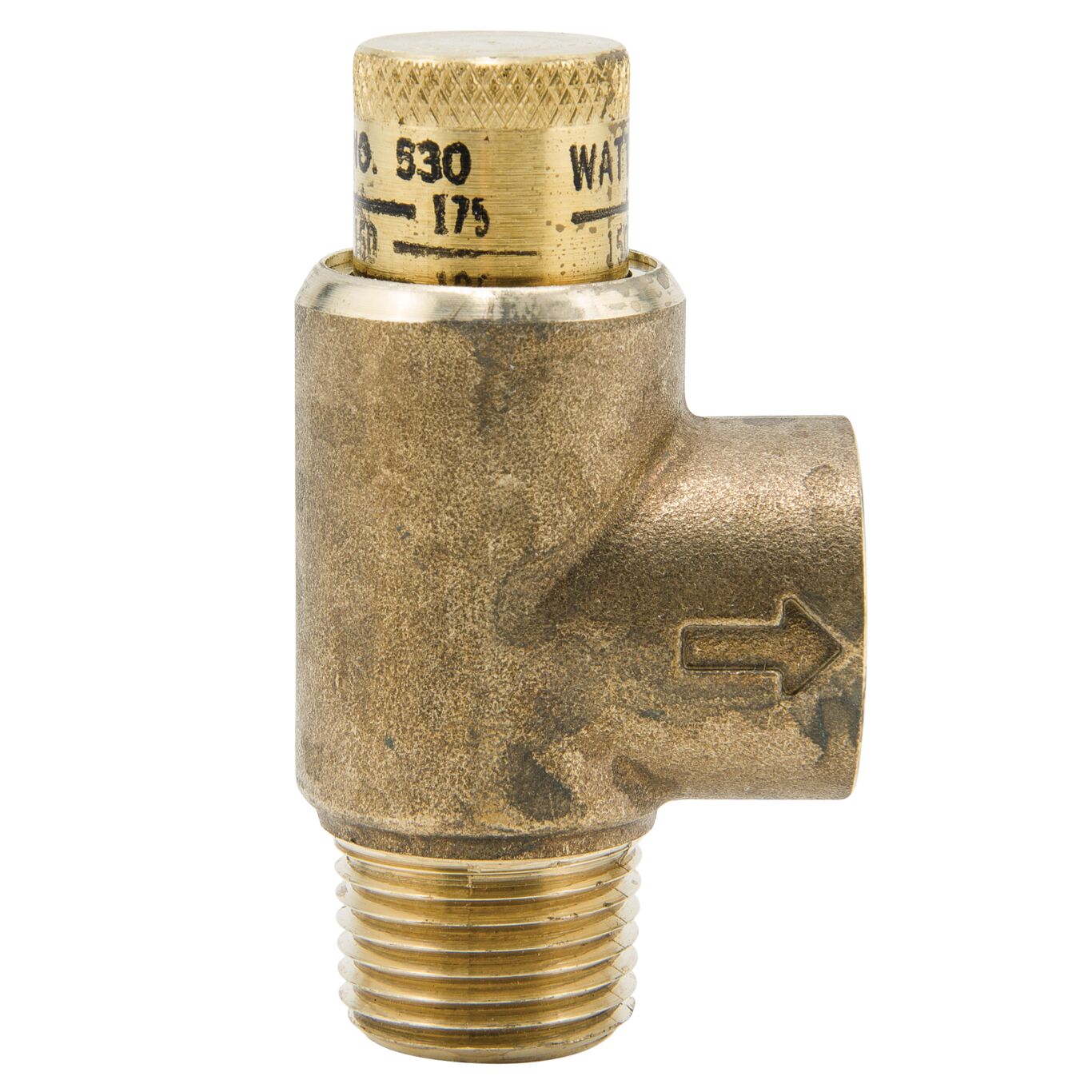

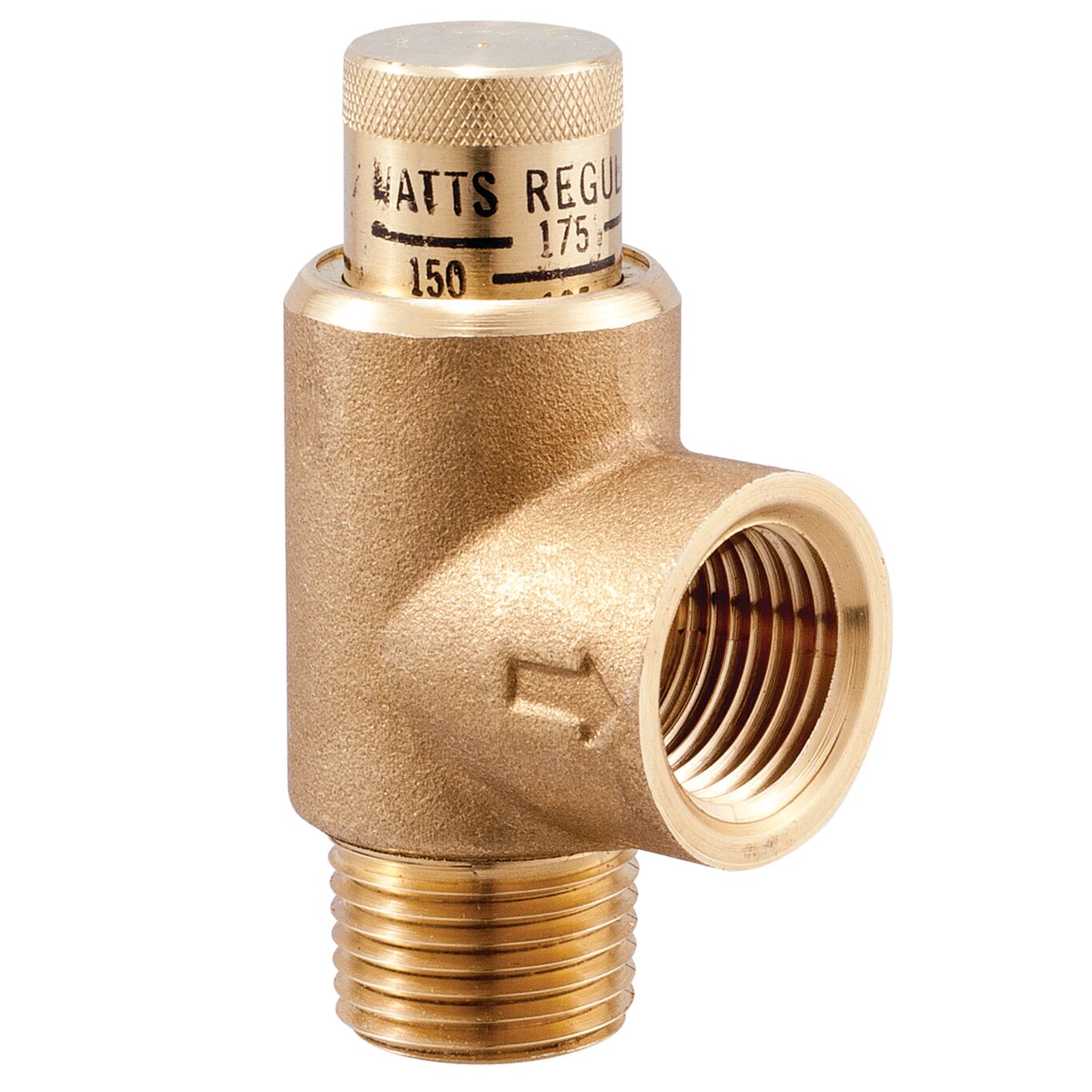

3/4 IN Lead Free Brass Calibrated Pressure Relief Valve, 1/2 IN Outlet, Adjustable Pressure Range 100-300 psi
This 3/4 inch lead free calibrated pressure relief valve is designed for use as protection against excessive pressure build-up in systems containing water, oil and air. It has a lead free brass body, 3/4 inch NPT male inlet and 1/2 inch NPT female (drain) outlet. This valve has an adjustable pressure of 100 to 300 psi (6.9 to 20.7 bar) and maximum working temperature of 180 degrees F.
Features
- Lead free brass body construction
- All stainless steel spring
- Adjustable range 100 to 300 psi
- Maximum temperature 180 degree F
| Specifications | |
|---|---|
| Body Material | Lead Free Brass |
| Brand | Watts |
| Buy American Act Compliant | YES |
| EAN | 098268587807 |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Lead Free | YES |
| Maximum Working Pressure-PSI | 300 |
| Outlet Connection Size | 1/2 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | FPT |
| Part Number | 0121626 |
| Pressure Range | 50 to 175 PSI |
| Series | LF530C |
