LF53L-Z2-30 1/2

Part of the LF53L Series

Ordering Code: 0121440

UPC: 098268585162

Lead Free: YES

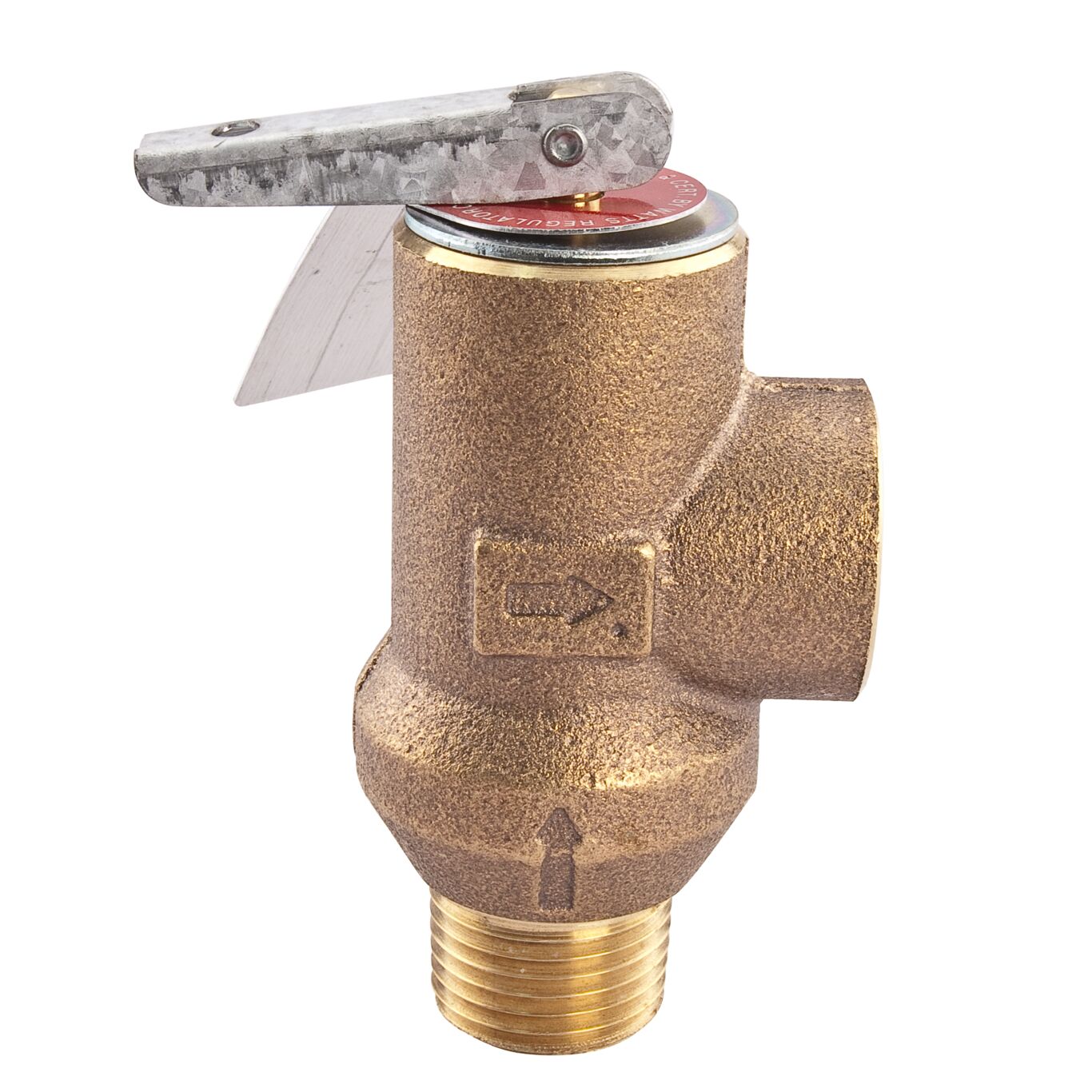

1/2 In Lead Free Poppet Type Pressure Relief Valve With Test Lever, 30 psi

This 1/2 inch pressure relief valve is used in residential applications to protect against excessive pressure on domestic storage tanks and tankless water heaters. It consists of a lead free body construction with 1/2 inch NPT threaded male inlet and 1/2 inch NPT threaded female (drain) outlet, test lever, and stainless steel spring. It is ANSI Z21.22 approved, listed and certified by CSA. The pressure relief is set at 30 psi (2.1 bar).

Product Features

  • Lead free copper silicon alloy body construction
  • CSA certified
  • Test lever included
  • Relieves excessive pressure on tankless water heaters
Specifications
Body Material Brass
Brand Name Watts
Inlet Connection Size 1/2 IN
Inlet Connection Type Male Threaded
Inlet Thread Type NPT
Lead Free YES
Model Number LF53L-Z2-30 1/2
Outlet Connection Size 1/2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type FPT
Part Number 0121440
Pressure Range 75 to 125 PSI
Pressure Relief Setting-PSI 30
Protection Type Pressure
Series LF53L
