342-125210 2

Part of the 342 Series

Ordering Code: 0352378

UPC: 098268017656

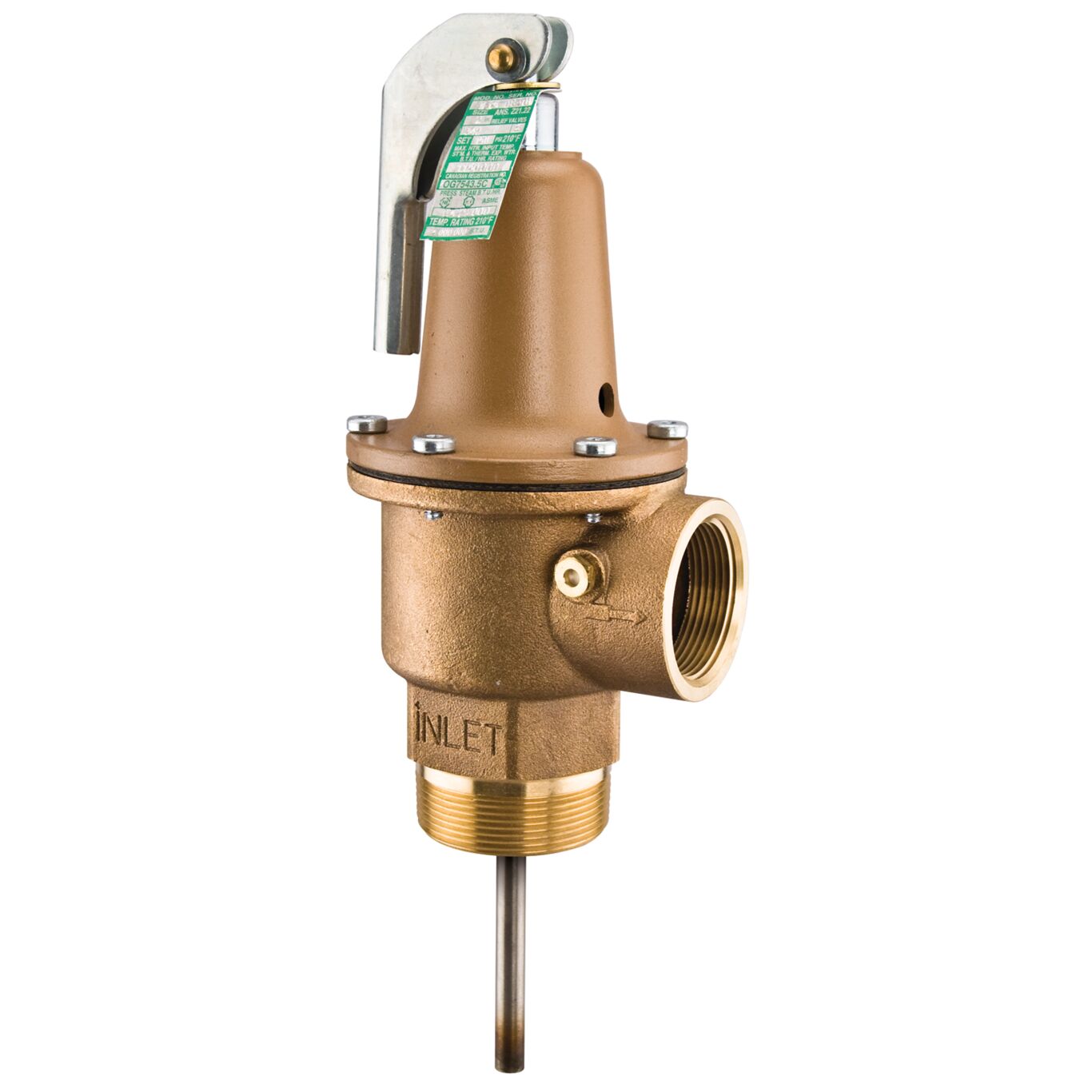

2 In Bronze Automatic Reseating Temperature And Pressure Relief Valve, 125 psi, 210 degree F, SS Thermostat

This 2 inch bronze automatic reseating temperature and pressure relief valve with a 3 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 125 psi.

Features

Stainless steel spring
Tamper resistant bonnet screws
3 Inch thermostat length
Non-mechanical seat to disc alignment

Specifications
Body Material	Bronze
Brand	Watts
EAN	098268017656
Inlet Connection Size	2 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	NO
Outlet Connection Size	1 1/2 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0352378
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	125
Protection Type	Temperature And Pressure
Series	342
Temperature Relief-Fahrenheit	210
Thermostat Material	Stainless Steel
