40XL-125210 1

Part of the 40L Series

Ordering Code: 0163720

UPC: 098268009880

Lead Free Model Available

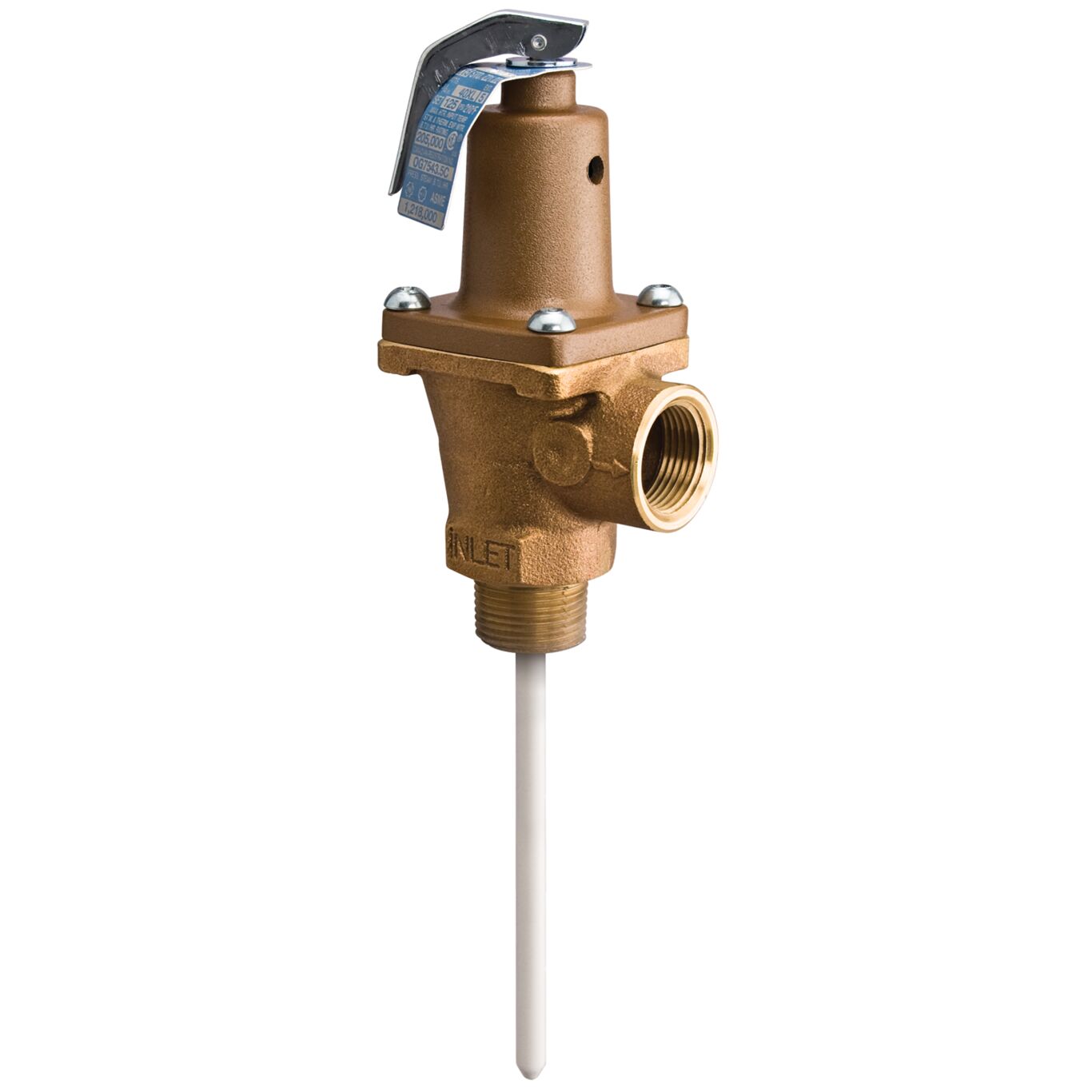

1 In Bronze Automatic Reseating Temperature And Pressure Relief Valve, 125 psi, 210 degree F, Test Lever, Extension Thermostat

This 1 inch bronze automatic reseating temperature and pressure relief valve with a 5 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees (99 degrees C) and the pressure relief is 125 psi.

Product Features

  • 5 Inch thermostat length
  • Non-mechanical seat to disc alignment
  • Tamper resistant bonnet screws
  • Thermo-bonded thermostat
Body Material Bronze
Brand Name Watts
EANUCCCode 098268009880
GPM-When Relieved Does Not Apply to Product
Inlet Connection Size 1 IN
Inlet Connection Type Male Threaded
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 210
Maximum Working Pressure-PSI 94
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0163720
Pressure Range 75 to 150 PSI
Pressure Relief Setting-PSI 125
Pressure Steam Discharge Capacity 1808000 BTU/HR
Protection Type Temperature And Pressure
Series 40L
Shank Length Does not apply to this product
Temperature Relief-Fahrenheit 210
Temperature Steam Discharge Capacity 500,000BTU/Hr
Thermostat Material Copper
Thermostat Probe Length 4
