LF140X6 150-210 1

Part of the LF140 Series

Ordering Code: 0121457

UPC: 098268585384

Lead Free: YES

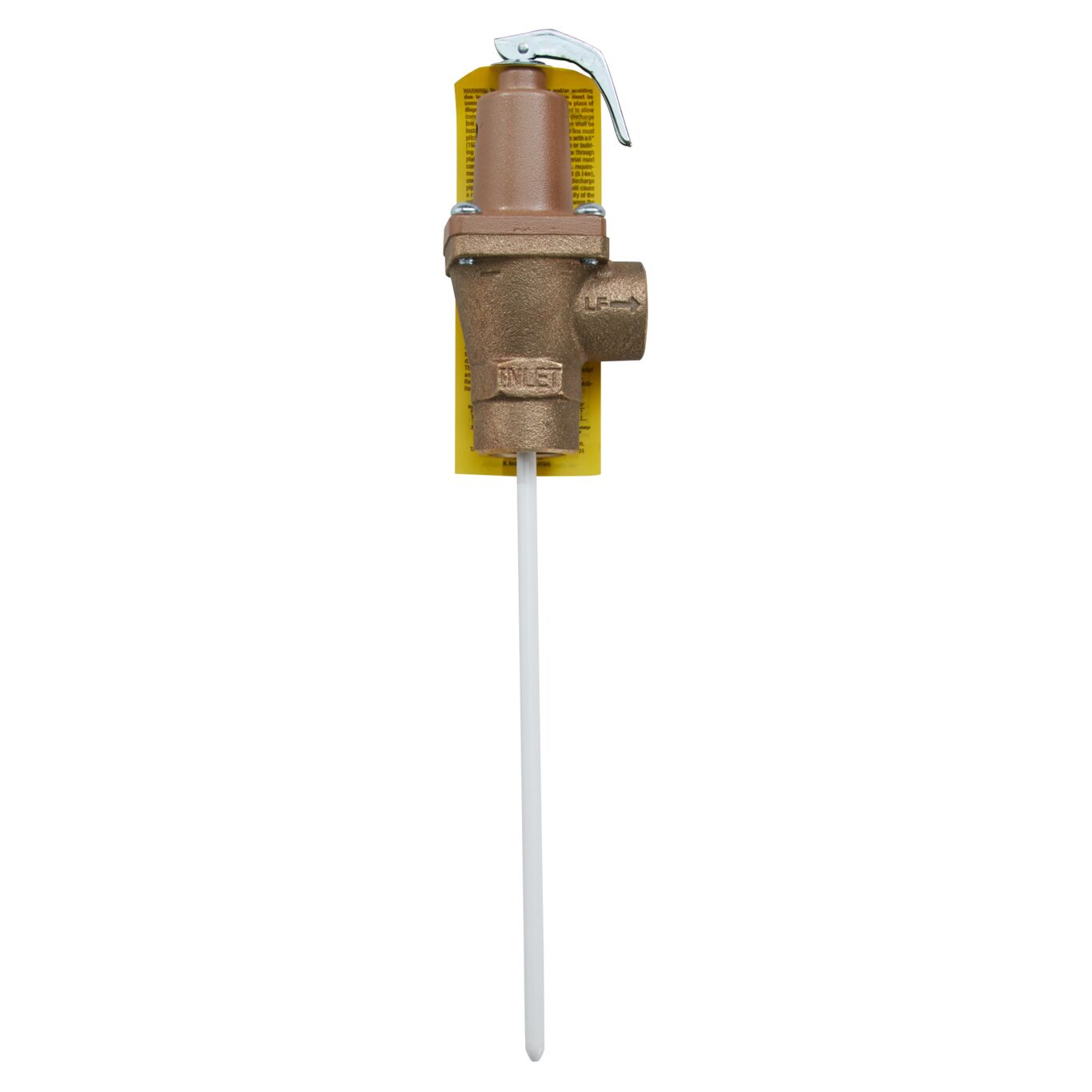

1 In Lead Free Automatic Reseating Temp And Pressure Relief Valve, 150 Psi, 210 Degree F, 6 In Thermostat, Female Connections

This 1 inch lead free automatic reseating temperature and pressure relief valve with a 6 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a lead free construction body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 150 PSI.

Product Features

  • 6 Inch thermostat length
  • Tamper resistant bonnet screws
  • Lead free construction
  • Non-mechanical seat to disc alignment
Specifications
Body Material Lead Free Bronze
BrandName Watts
GPM-When Relieved Does Not Apply to Product
Inlet Connection Size 1 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
LeadFree YES
Maximum Temperature-Fahrenheit 210
Maximum Working Pressure-PSI 113
ModelNumber LF140X6 150-210 1
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0121457
Pressure Range 75 to 150 PSI
Pressure Relief Setting-PSI 150
Pressure Steam Discharge Capacity 3085000 BTU/HR
Protection Type Temperature And Pressure
Series LF140
Shank Length Does not apply to this product
Temperature Relief-Fahrenheit 210
Temperature Steam Discharge Capacity 570,000BTU/Hr
Thermostat Material Stainless Steel
Thermostat Probe Length 6
