LF140X8-75210 3/4

Discontinued - Replaced By: LF140X-8 75/210 FS 3/4

Part of the LF140 Series

Ordering Code: 0558135

UPC: 098268021639

Lead Free: YES

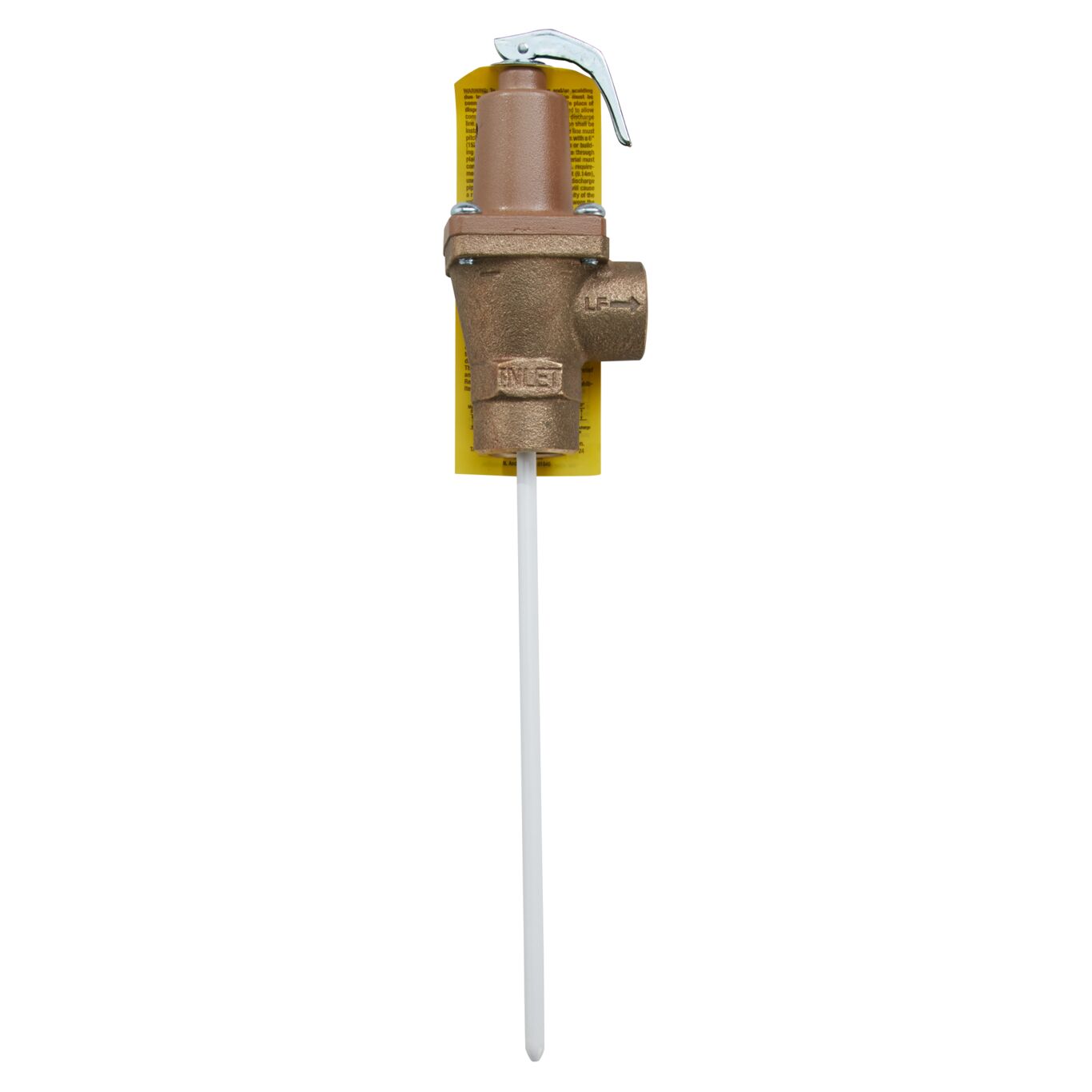

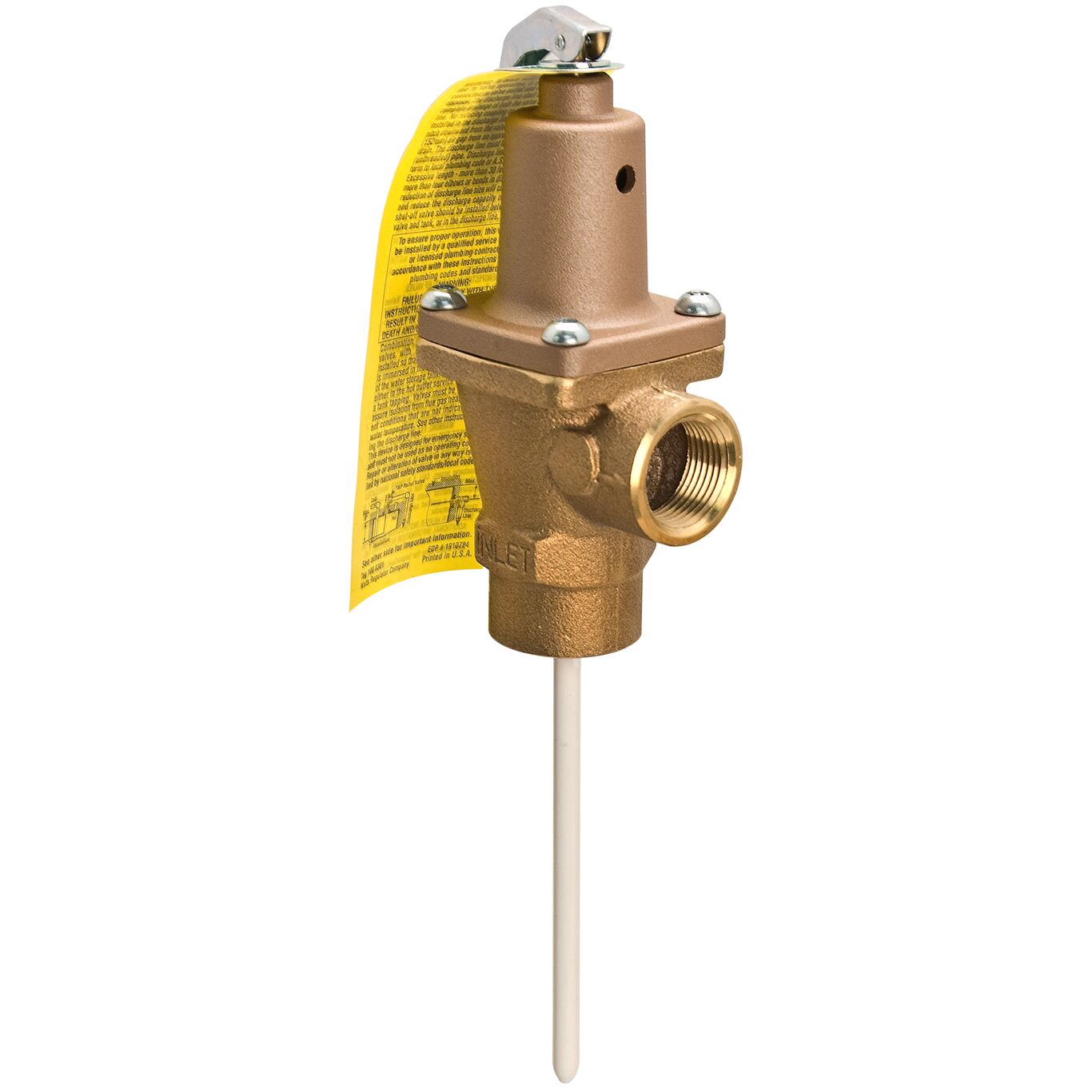

3/4 In Lead Free Automatic Reseating Temp And Pressure Relief Valve, 75 psi, 210 degree F, 8 In Thermostat, Female Connections

This 3/4 inch lead free automatic reseating temperature and pressure relief valve with 8 inch thermostat is installed directly in tank tappings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a lead free brass body with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is set at 210 degrees and the pressure relief is 75 psi.

Features

Thermo-bonded thermostat
Tamper resistant bonnet screws
8 Inch thermostat length
Non-mechanical seat to disc alignment

Specifications
Body Material	Lead Free Brass
Brand	Watts
EAN	098268021639
Inlet Connection Size	3/4 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	FPT
Lead Free	YES
Maximum Temperature-Fahrenheit	210
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0558135
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	75
Protection Type	Temperature And Pressure
Series	LF140
Temperature Relief-Fahrenheit	210
Thermostat Material	Stainless Steel
