LF40XL-150210 3/4

Discontinued - Replaced By: LF40XL-5 150/210 FS 3/4

Part of the LF40L Series

Ordering Code: 0556016

UPC: 098268432510

Lead Free: YES

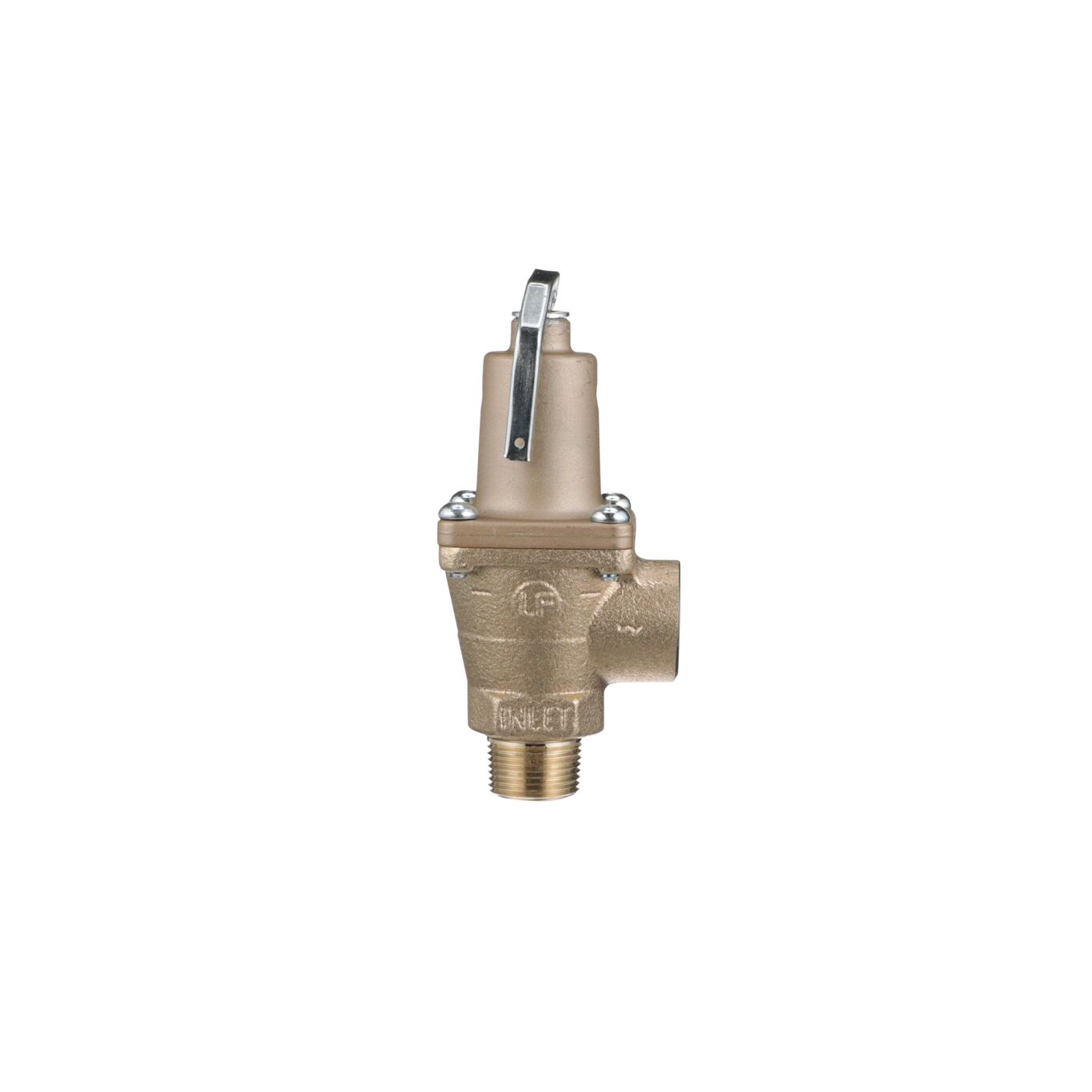

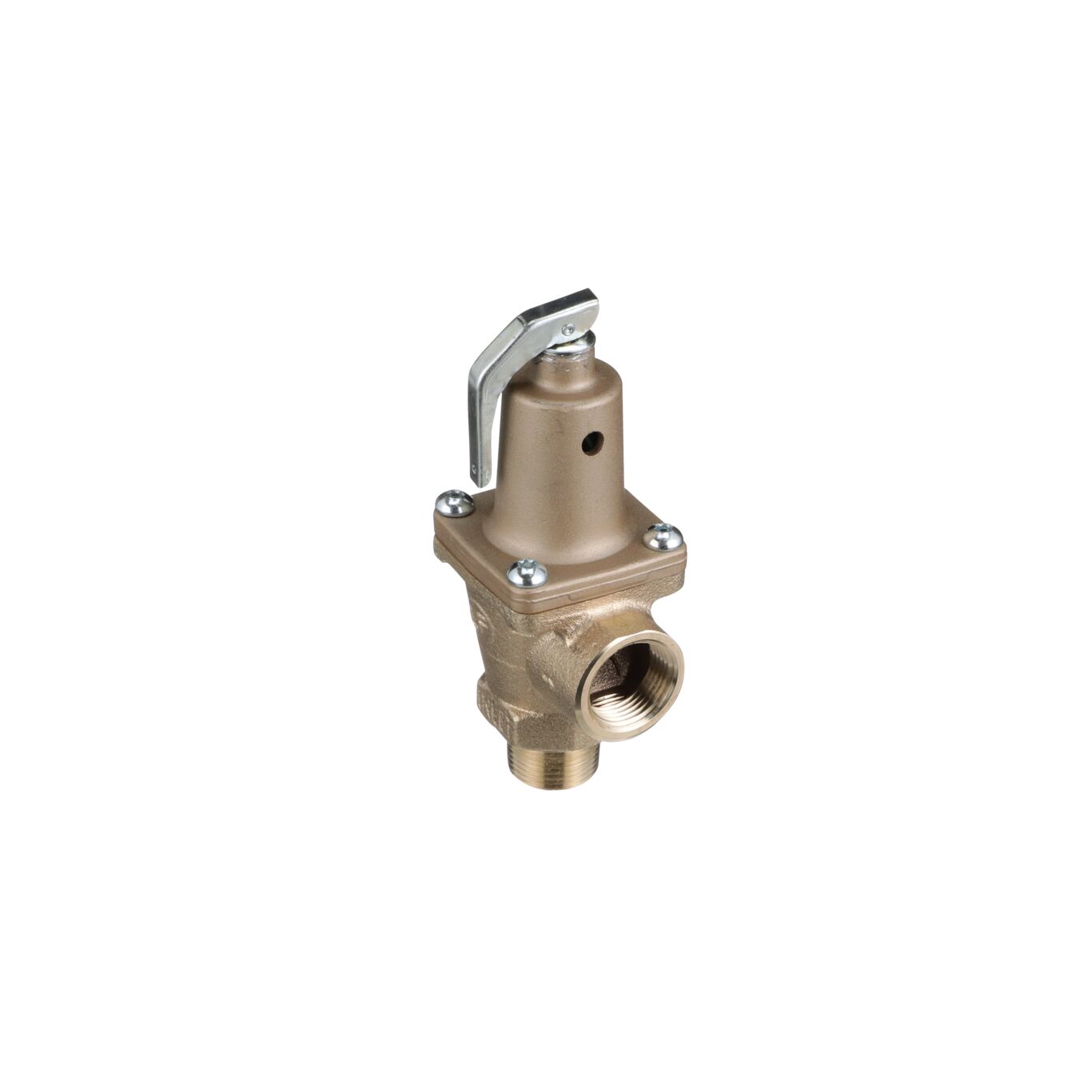

3/4 IN Lead Free Brass Automatic Reseating T and P Relief Valve, 150 psi, 210 degree F, Test Lever, 5 IN Extension Thermostat

This 3/4 inch lead free automatic reseating temperature and pressure relief valve with a 5 inch thermostat is installed directly in tank tappings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features lead free brass construction with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is 150 psi.

Features

Lead free construction
Tamper resistant bonnet screws
5 Inch thermostat length
Non-mechanical seat to disc alignment

Specifications
Body Material	Lead Free Bronze
Brand	Watts
Buy American Act Compliant	YES
EAN	098268432510
GPM-When Relieved	Does Not Apply to Product
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	210
Maximum Working Pressure-PSI	113
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0556016
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	150
Protection Type	Temperature And Pressure
Series	LF40L
Shank Length	Does Not Apply To Product
Temperature Relief-Fahrenheit	210
Thermostat Material	Copper
Thermostat Probe Length	5 IN
