LFLLL40XL-M15 150210 3/4

Discontinued - Replaced By: LFLLL40XL-5 150/210 FS 3/4

Part of the LFLL40XL Series

Ordering Code: 0121430

UPC: 098268584660

Lead Free: YES

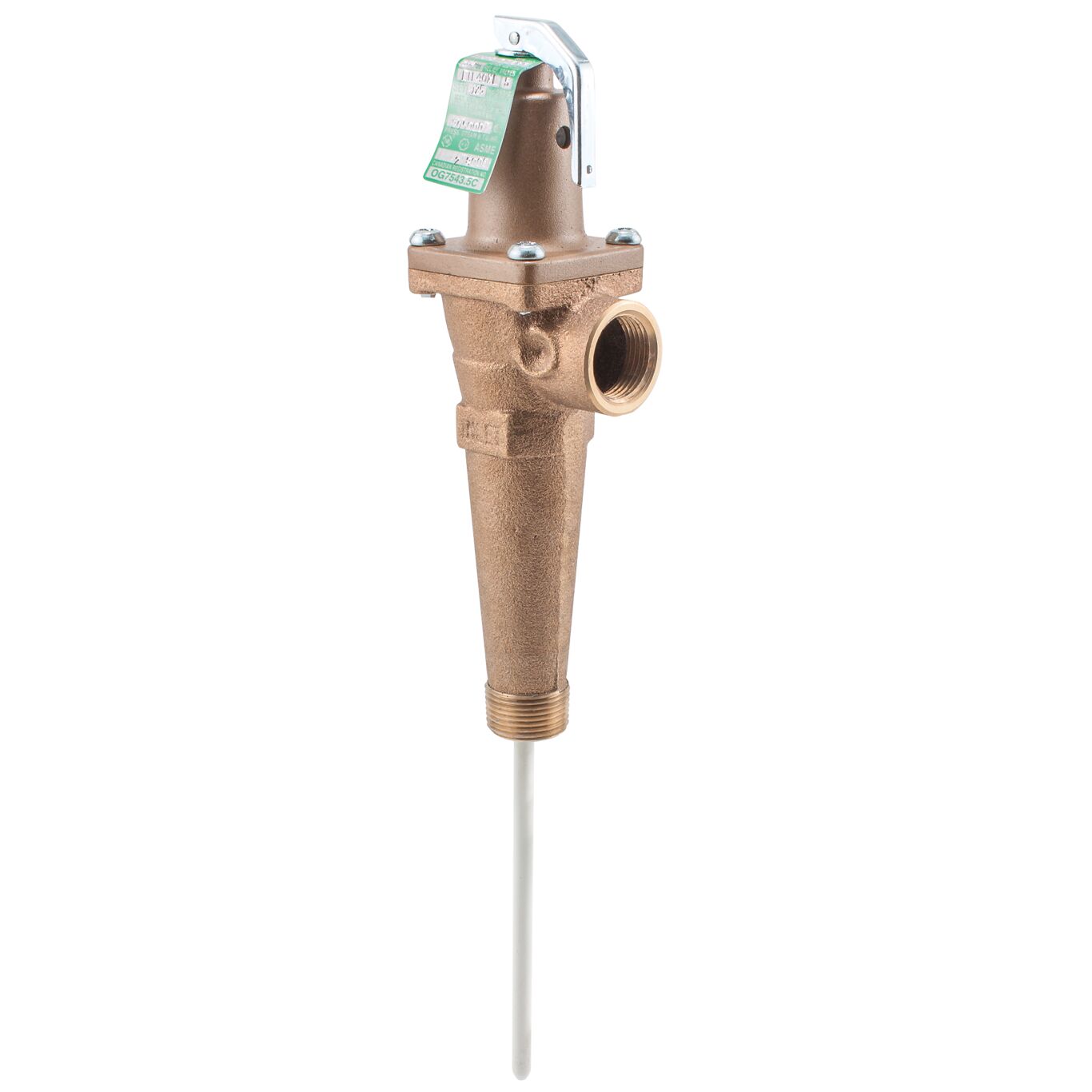

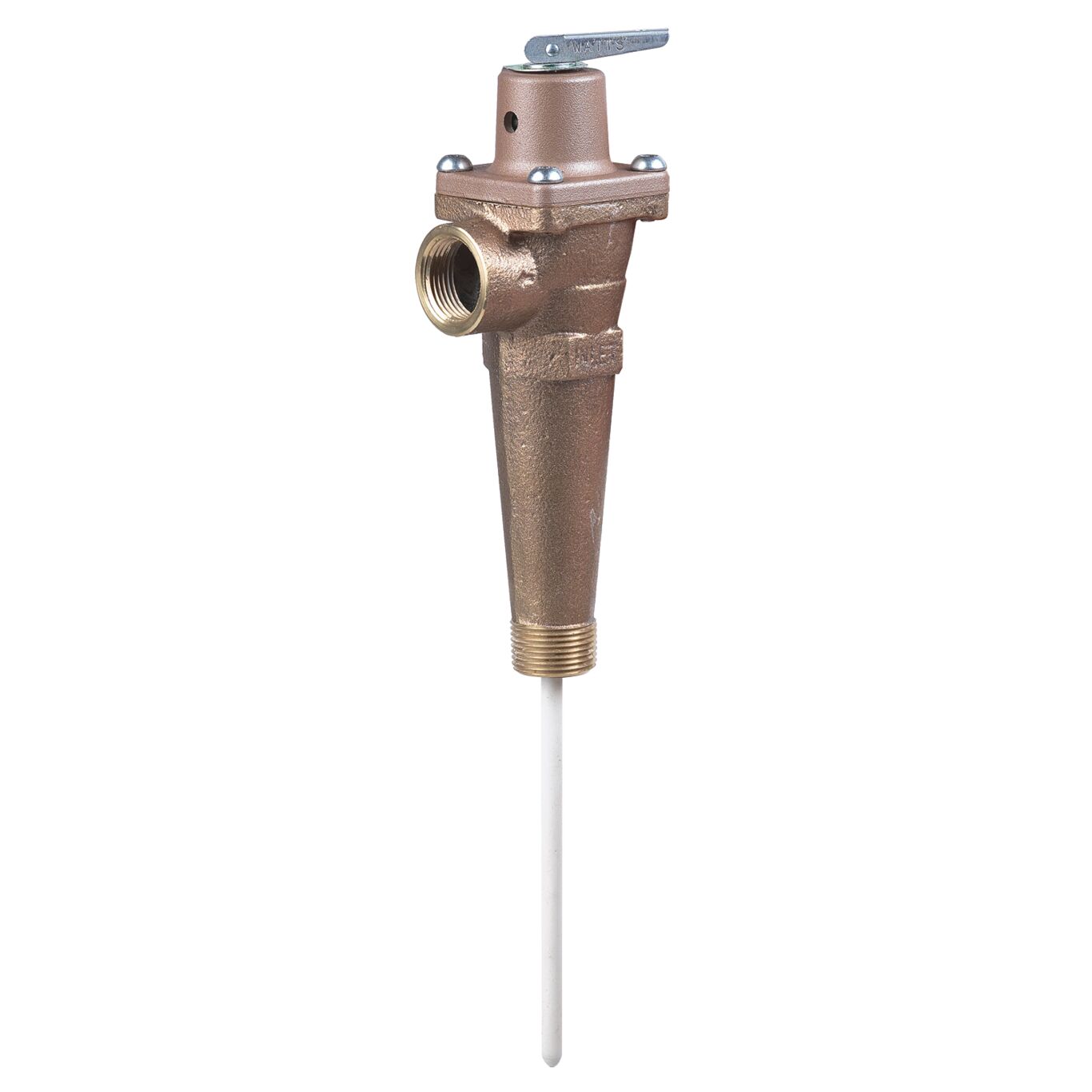

3/4 In Lead Free Automatic Reseating Temp/Pressure Relief Valve, 150 psi, 210 F, Test Lever, 3 21/32 In Extended Shank, 5 In Thermostat

This 3/4 inch lead free automatic reseating temperature and pressure relief valve with a 3-21/32 inch extended shank and 5 inch thermostat is installed directly in tank tappings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features lead free cast copper silicon alloy construction with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is 150 psi.

Features

Lead free cast copper silicon alloy construction
3-21/32 inch extended shank
5 Inch thermostat length
Non-mechanical seat to disc alignment
Tamper resistant bonnet screws

Specifications
Body Material	Lead Free Copper Silicon Alloy
Brand	Watts
Buy American Act Compliant	YES
EAN	098268584660
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	YES
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0121430
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	150
Protection Type	Temperature And Pressure
Series	LFLL40XL
Shank Length	3 21/32 IN
Temperature Relief-Fahrenheit	210
Thermostat Probe Length	5 IN
