LFN241X-8 75-210 1 1/4

Discontinued - Replaced By: LFN241X-8 075/210 FS 1 1/4

Part of the LFN240 Series

Ordering Code: 0121593

UPC: 098268587265

Lead Free: YES

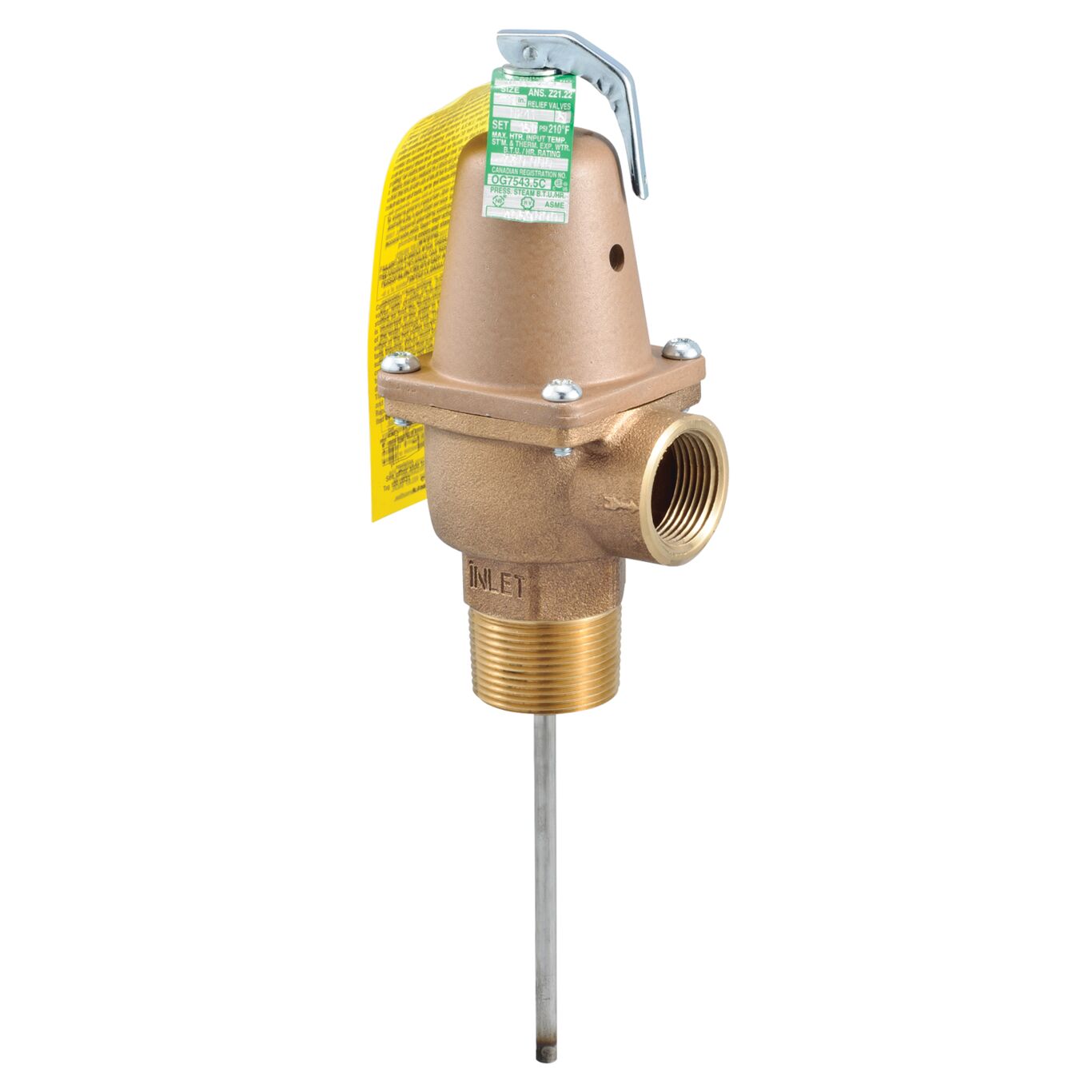

1 1/4 In Lead Free Automatic Reseating Temperature And Pressure Relief Valve, 75 psi, 210 degree F, 8 In Thermostat

This 1 1/4 inch lead free automatic reseating temperature and pressure relief valve with an 8 inch thermostat is installed directly in tank tappings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a lead free brass body with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 75 psi.

Lead free brass body construction
Tamper resistant bonnet screws
Automatic reseating
Non-mechanical seat to disc alignment

Specifications
Body Material	Lead Free Brass
Brand	Watts
EAN	098268587265
Inlet Connection Size	1 1/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	210
Outlet Connection Size	1 1/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0121593
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	75
Protection Type	Temperature And Pressure
Series	LFN240
Temperature Relief-Fahrenheit	210
Thermostat Material	Stainless Steel
