LLL40XLM15-125210 3/4

Part of the LL40XL Series

Ordering Code: 0163802

UPC: 098268921335

Lead Free: NO

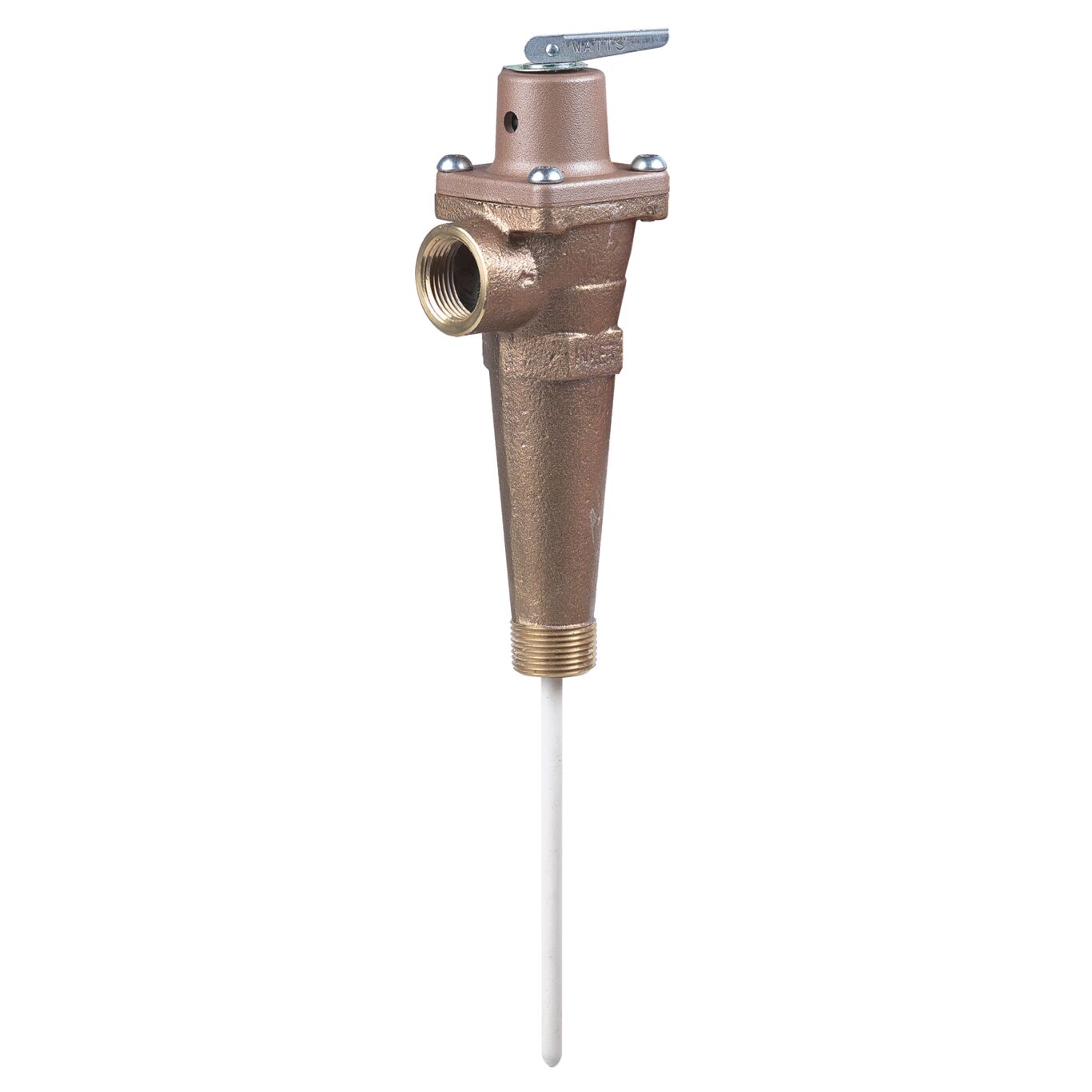

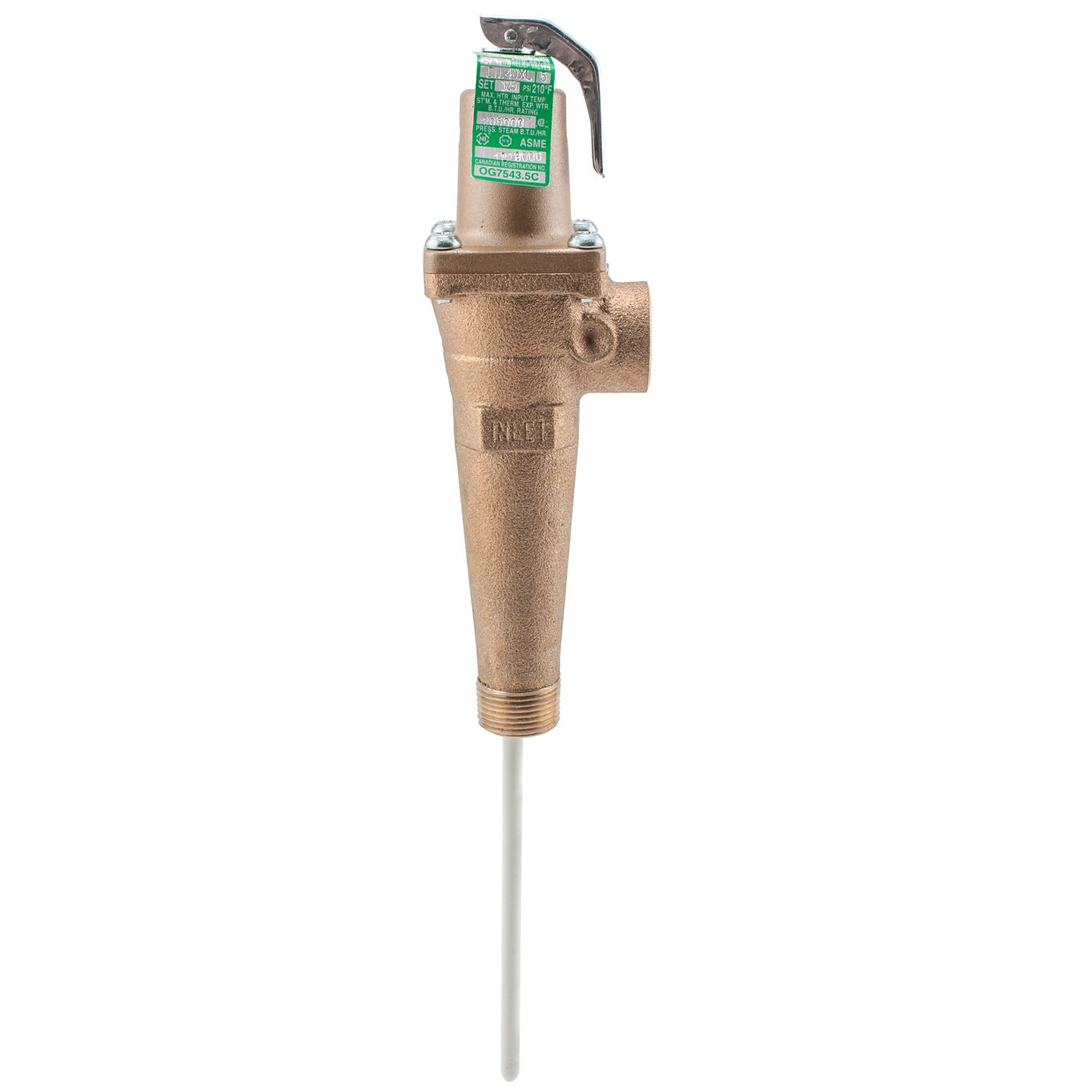

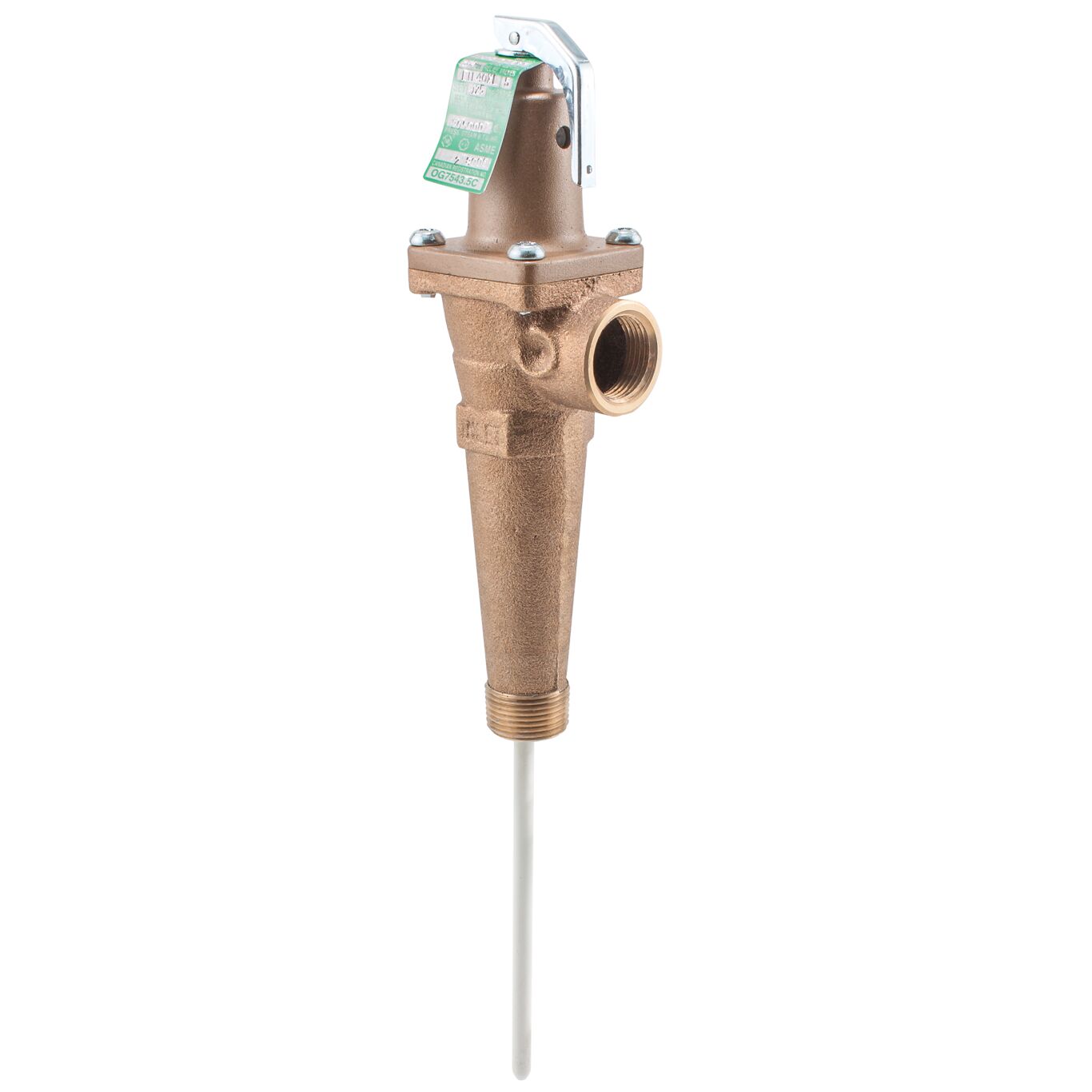

3/4 In Bronze Automatic Reseating Temp/Pressure Relief Valve, 125 psi, 210 F, Test Lever, Extended Shank, 8 In Thermostat

This 3/4 inch bronze automatic reseating temperature and pressure relief valve with a 1 25/32 inch extended shank and 8 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees (99 degrees C) and the pressure relief is 125 psi.

Features

Thermo-bonded thermostat
Tamper resistant bonnet screws
8 Inch thermostat length
Non-mechanical seat to disc alignment
Thermostat is accurate and proven

Specifications
Body Material	Bronze
Brand	Watts
EAN	098268921335
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	NO
Maximum Temperature-Fahrenheit	210
Maximum Working Pressure-PSI	150
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0163802
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	125
Protection Type	Temperature And Pressure
Series	LL40XL
Shank Length	Does Not Apply To Product
Temperature Relief-Fahrenheit	210
Thermostat Material	Copper
Thermostat Probe Length	8 IN
