N240X9 100-210 1

Discontinued - Replaced By: N240X-9 100/210 FS 1

Part of the N240 Series

Ordering Code: 0315155

UPC: 098268016369

Lead Free: NO

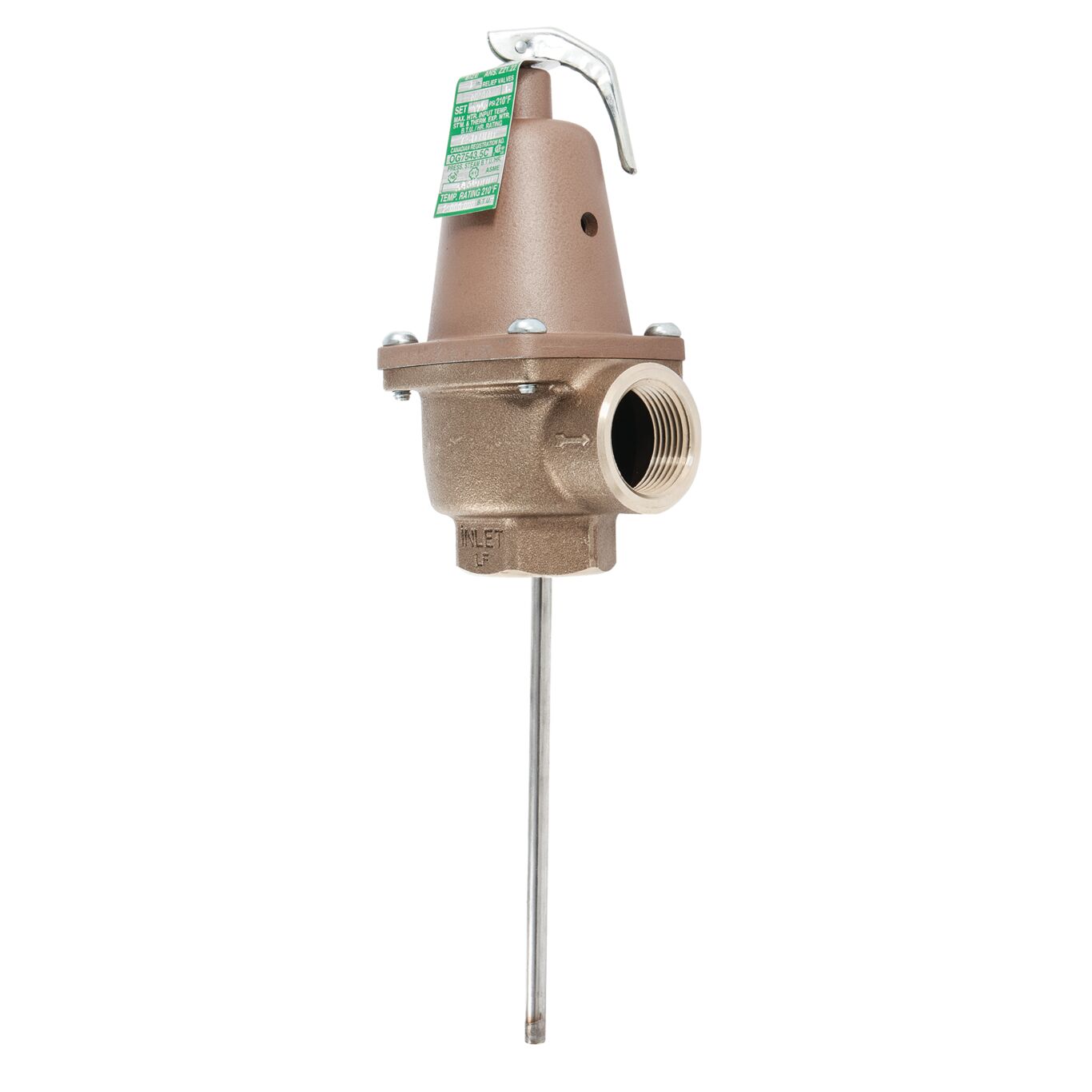

1 In Bronze Automatic Reseating Temperature And Pressure Relief Valve, 100 psi, 210 degree F, 9 In Ss Thermostat

  • Stainless steel spring
  • Tamper resistant bonnet screws
  • Automatic reseating
  • Non-mechanical seat to disc alignment
Specifications
Body Material Bronze
Brand Watts
EAN 098268016369
Inlet Connection Size 1 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 210
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0315155
Pressure Range 75 to 150 PSI
Pressure Relief Setting-PSI 100
Protection Type Temperature And Pressure
Series N240
Temperature Relief-Fahrenheit 210
Thermostat Material Stainless Steel
