N240X9 75-210 1

Part of the N240 Series

Ordering Code: 0315151

UPC: 098268016352

Lead Free: NO

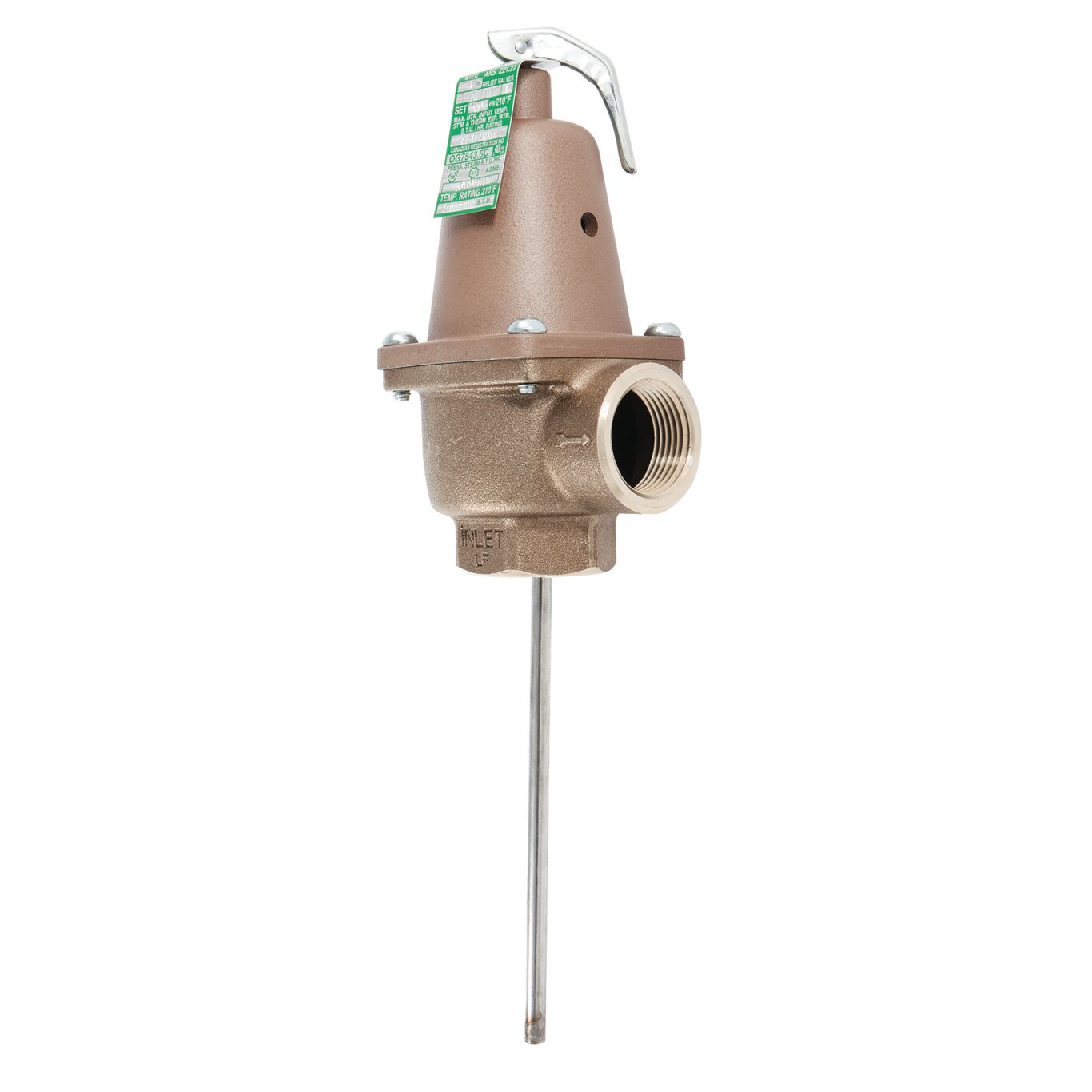

1 In Bronze Automatic Reseating Temperature And Pressure Relief Valve, 75 psi, 210 degree F, 9 In Ss Thermostat

This 1 inch bronze automatic reseating temperature and pressure relief valve with a 9 inch thermostat is installed directly in tank tappings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 75 psi.

Features

Stainless steel spring
Tamper resistant bonnet screws
Automatic reseating
Non-mechanical seat to disc alignment

Specifications
Body Material	Bronze
Brand	Watts
EAN	098268016352
Inlet Connection Size	1 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	NO
Maximum Temperature-Fahrenheit	210
Outlet Connection Size	1 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0315151
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	75
Protection Type	Temperature And Pressure
Series	N240
Temperature Relief-Fahrenheit	210
Thermostat Material	Stainless Steel

Literature

Find a Sales Representative

Find a Wholesaler/Distributor

View Warranty Customer Support Access BIM Drawings

Share this Product

Build Your Spec in Under 5 Minutes

Learn More

Product Accessories

FS-RV-BMS-RFK-1

BMS Flood Sensor Connection Kit, For Relief Valves with 1 IN Discharge Outlet
