B6000M2-UL 3/4
×
![]()
Discontinued
Part of the B6000 Series
Ordering Code: 0896874
UPC: 098268735000
Lead Free: NO

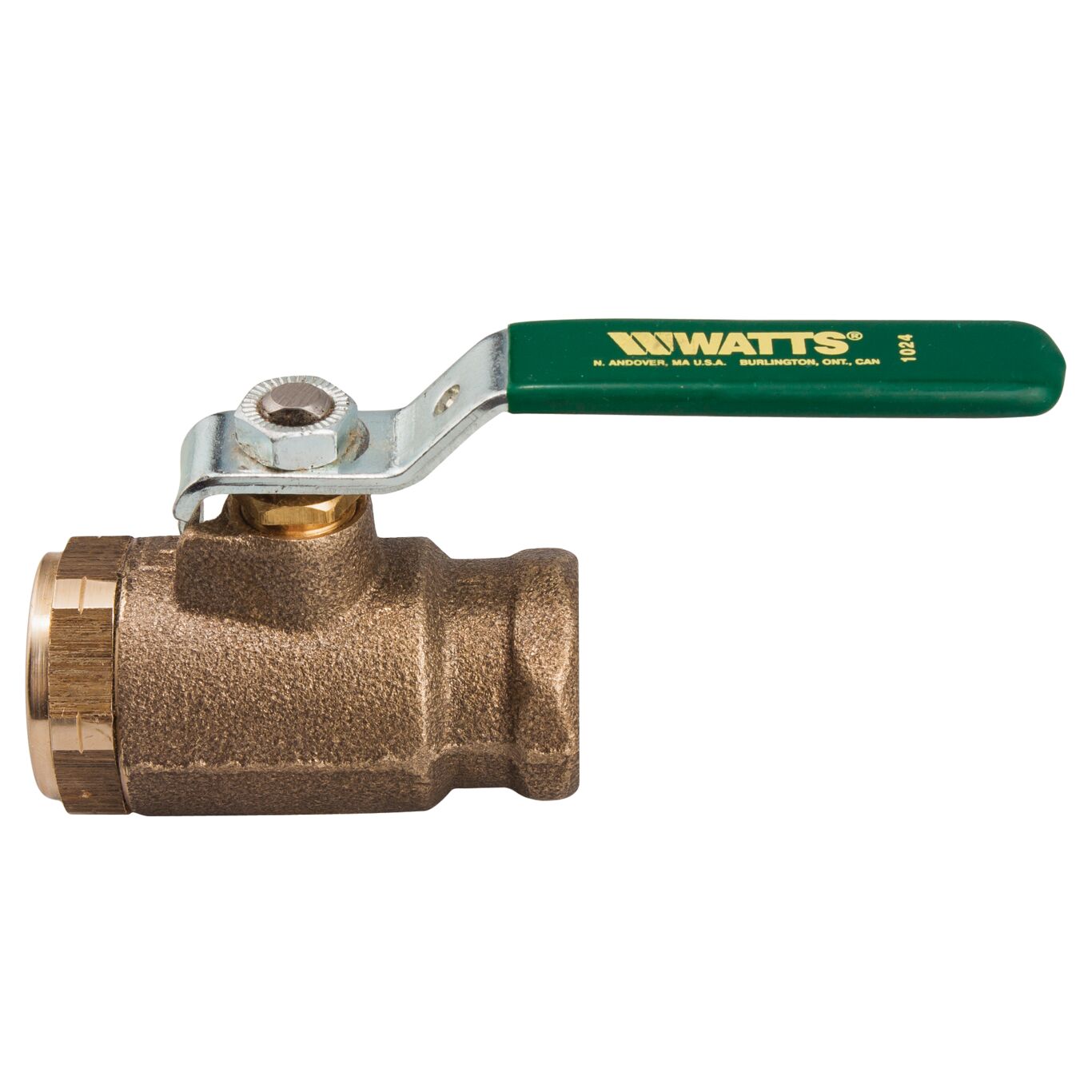

3/4 In 2-Piece Standard Port Bronze Ball Valve, Threaded, Ul Approval
This 3/4 IN 2-piece threaded standard port bronze ball valve, model B6000M2-UL, is used in commercial and industrial applications for a full range of liquids and gases. It features a blowout proof pressure retaining stem. The standard port orifice ensures minimal pressure drop. It has UL approval.
Features
- Bronze body construction
- Blowout proof pressure retaining stem
- NPT threaded end connections
- Uniseal seats
| Specifications | |
|---|---|
| Actuation | No |
| Assembled Dry | No |
| Balance Stop Plate | No |
| Ball Material | Brass |
| Body Finish | Bronze |
| Body Material | Cast Bronze |
| Brand | Watts |
| Class Rating | Does Not Apply To Product |
| Control Type | Lever Handle |
| CV Rating | 25 |
| EAN | 098268735000 |
| Electrical Rating | Does Not Apply To Product |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Size-Metric | 20 MM |
| Inlet Connection Type | Female Threaded |
| Inlet Thread Type | NPT |
| Lead Free | NO |
| Maximum Temperature-Fahrenheit | 450 |
| Minimum Temperature - Celsius | -18.00 |
| Minimum Temperature-Fahrenheit | 0 |
| Operating Torque | 90 |
| Outlet Connection Size | 3/4 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | FPT |
| Part Number | 0896874 |
| Port Type | Standard |
| Seat Material | Durafill and Uniseal |
| Series | B6000 |
| Stem Packing Material | Glass Reinforced PTFE |
| Stem Shaft Material | Brass |
| Stem Type | Blowout Proof |
| Thrust Washer Material | Glass Reinforced PTFE |
| Valve Style | 2-piece |
| WOG Rating | 600 PSI |
