B6400-SS 1/2

Discontinued - Replaced By: LFB6400 1/2

Part of the B6400 Series

Ordering Code: 0393641

UPC: 098268031584

Lead Free Model Available

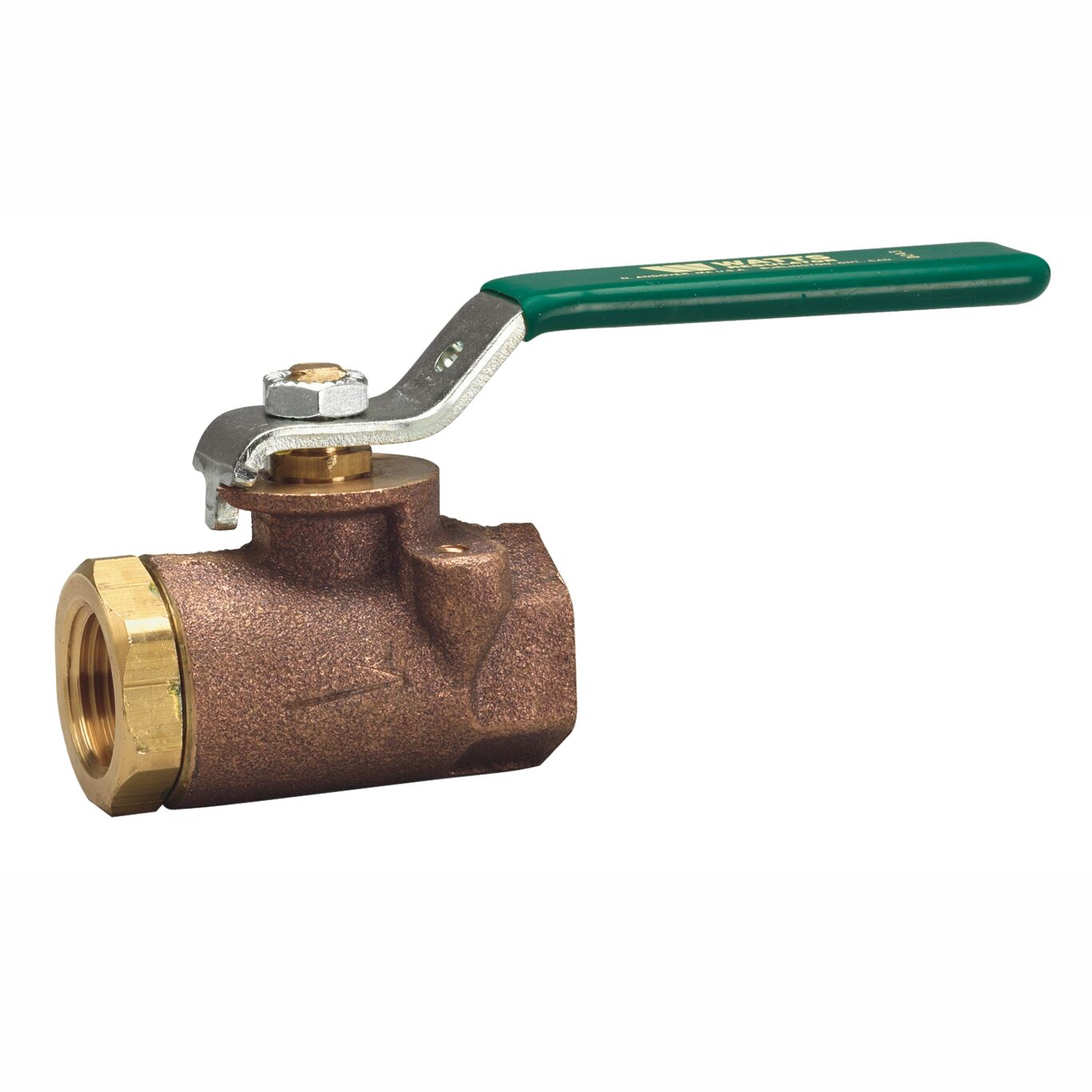

1/2 In 2-Piece Standard Port Bronze Ball Valve, Actuator Mounting Pads, Stainless Steel Ball And Stem

Actuation Yes
Assembled Dry No
Balance Stop Plate No
Ball Material 316 Stainless Steel
Body Finish Bronze
Body Material Bronze
Brand Name Watts
Control Type Locking Lever Handle
CV Rating 15
Inlet Connection Size 1/2 IN
Inlet Connection Size-Metric 15 MM
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 450
Minimum Temperature - Celsius -49.00
Minimum Temperature-Fahrenheit -55
Model Number B6400-SS 1/2
Operating Torque 60
Outlet Connection Size 1/2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type FPT
Part Number 0393641
Port Type Standard
Seat Material Durafill
Series B6400
Stem Packing Material Glass Reinforced PTFE
Stem Shaft Material 316 Stainless Steel
Stem Type Blowout Proof
Thrust Washer Material Glass Reinforced PTFE
Valve Style 2-piece
WOG Rating 600 PSI
