C-FBV-1 1

Part of the C-FBV-1 Series

Ordering Code: 0548004

UPC: 098268386707

Lead Free: NO

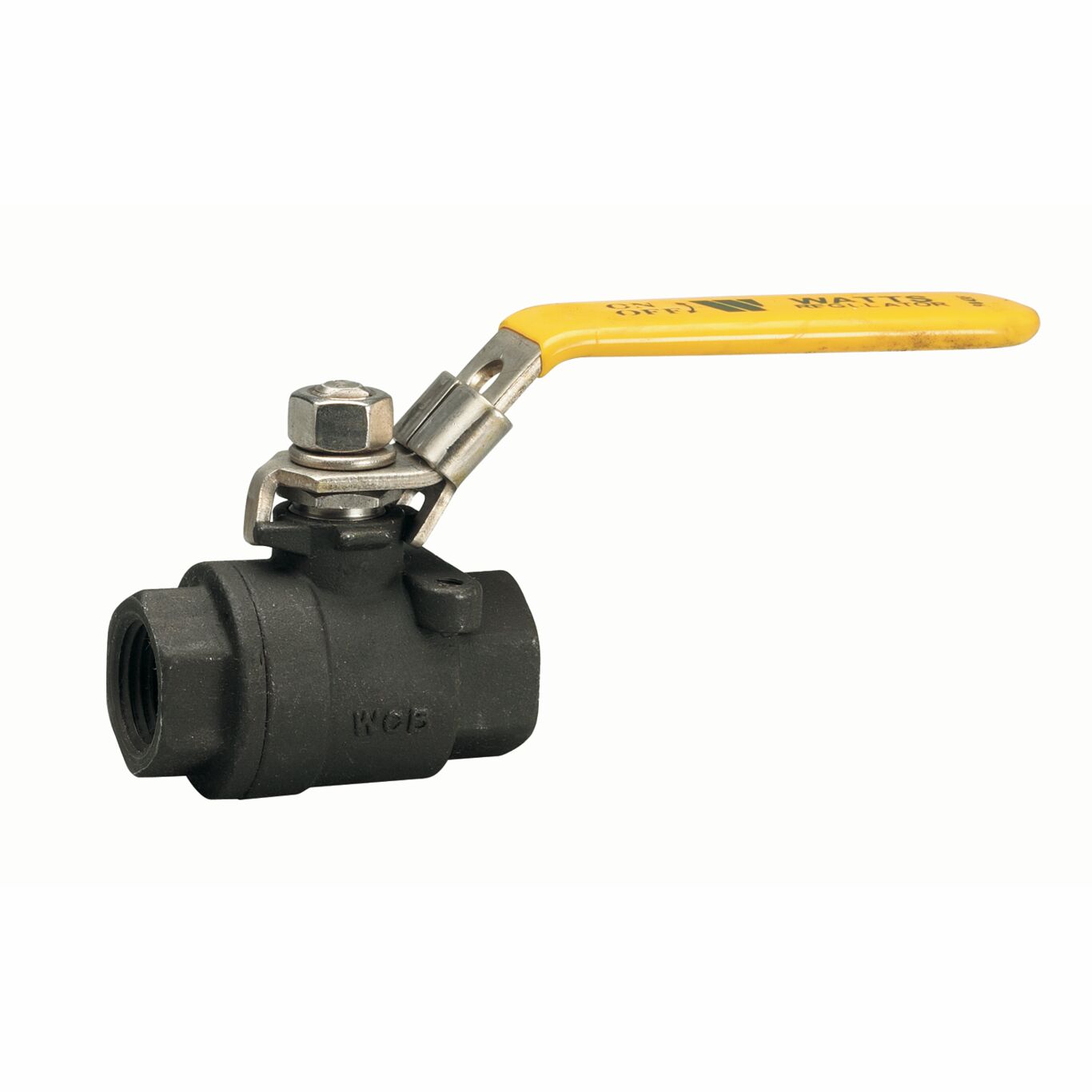

1 In Carbon Steel Full Port Ball Valve With Npt Threaded End Connection

This 1 inch two-piece full port ball valve with female threaded end connections is used in commercial and industrial applications with high operating temperature and pressure limits. The valve features carbon steel body construction, adjustable packing gland, reinforced PTFE seats and seals, a bottom loaded blowout proof stem, and a vinyl insulator on a heavy duty 304 Latch-Lok stainless steel handle. The temperature range is 0 to 400 degrees F (-18 to 204 degrees C). The pressure rating is 1000 psi (68.9 bar) WOG non-shock and 125 psi (8.6 bar) WSP.

Product Features

  • Full port for minimal pressure drop
  • Two-piece carbon steel body construction
  • Adjustable packing gland
  • Reinforced PTFE seats and seals
  • Bottom loaded blowout proof stem
  • Drilled and tapped mounting pads
  • Conforms to MSS-SP-110 and API-598
  • Vinyl insulated standard Latch-Lok handle to lock open or closed
Actuation Yes
Assembled Dry No
Balance Stop Plate No
Ball Material 304 Stainless Steel
Body Finish Carbon Steel
Body Material Carbon Steel
Brand Name Watts
Control Type Lever Handle
CV Rating 64 GPM
EANUCCCode 098268386707
Electrical Rating Does Not Apply To Product
Inlet Connection Size 1 IN
Inlet Connection Size-Metric 25 MM
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 400
Minimum Temperature - Celsius -18.00
Minimum Temperature-Fahrenheit 0
Operating Torque 102
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Thread Type FPT
Part Number 0548004
Port Type Full
Seat Material Reinforced PTFE
Series C-FBV-1
Stem Packing Material PTFE
Stem Shaft Material 304 Stainless Steel
Stem Type Bottom Loaded Blowout Proof
Thrust Washer Material PTFE
Valve Style 2-piece
WOG Rating 1000 PSI
