C-FBV-1 3 Watts

Part of the C-FBV-1 Series

Ordering Code: 0548009

UPC: 098268386752

Lead Free: NO

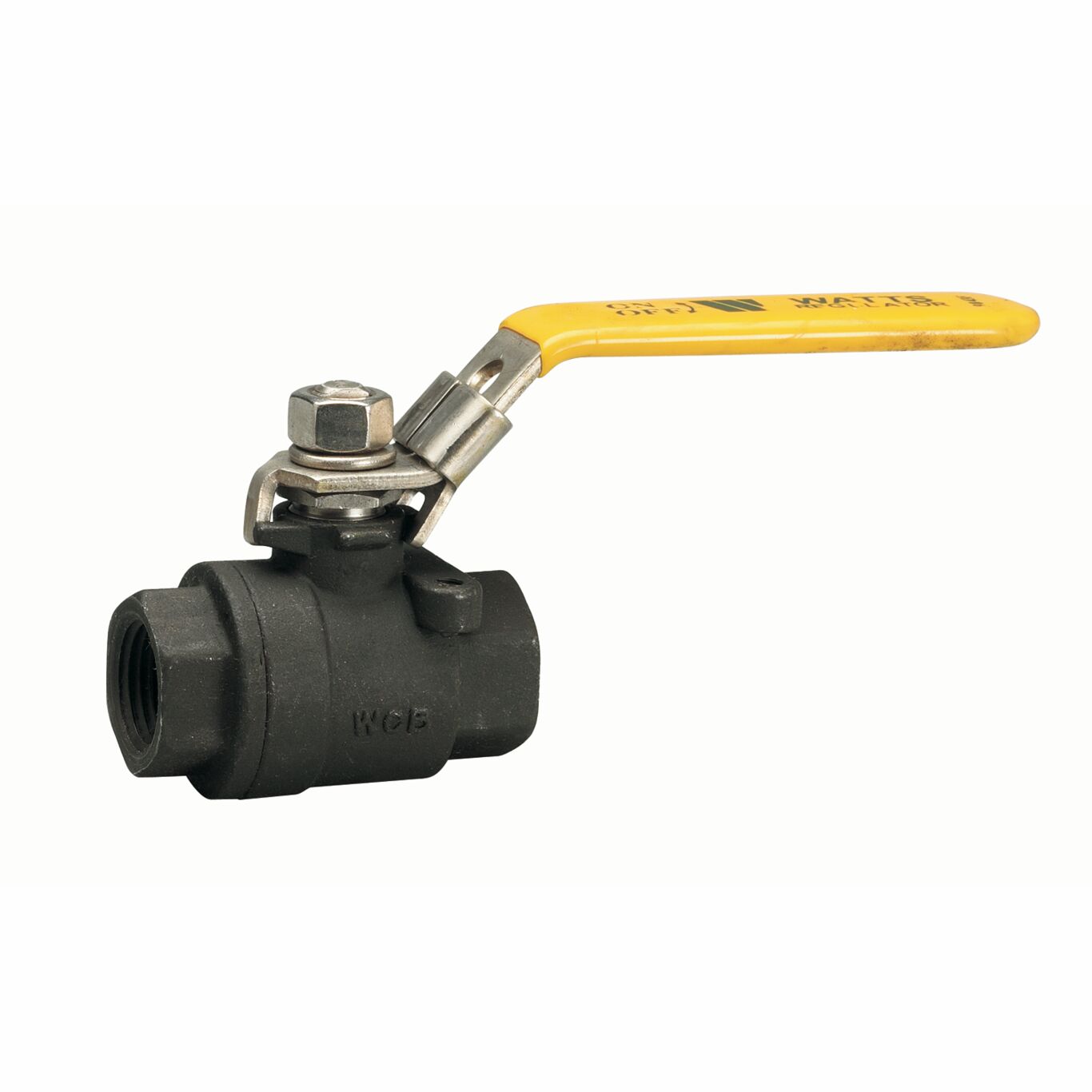

3 IN 2-Piece Full Port Carbon Steel Ball Valve, NPT Threaded End Connection, Lever Handle

This 3 inch two-piece full port ball valve with female threaded end connections is used in commercial and industrial applications with high operating temperature and pressure limits. The valve features carbon steel body construction, adjustable packing gland, reinforced PTFE seats and seals, a bottom loaded blowout proof stem, and a vinyl insulator on a heavy duty 304 Latch-Lok stainless steel handle. The temperature range is 0 to 400 degrees F (-18 to 204 degrees C). The pressure rating is 1000 PSI (68.9 BAR) WOG non-shock and 125 PSI (8.6 BAR) WSP.

Product Features

  • Bottom loaded blowout proof stem
  • Conforms to MSS-SP-110 and API-598
  • Vinyl insulated standard Latch-Lok handle to lock open or closed
  • Adjustable packing gland
  • Full port for minimal pressure drop
  • Two-piece carbon steel body construction
  • Reinforced PTFE seats and seals
  • Drilled and tapped mounting pads
Specifications
Actuation No
Assembled Dry No
Balance Stop Plate No
Ball Material 304 Stainless Steel
Body Finish Carbon Steel
Body Material Carbon Steel
BrandName Watts
Control Type Lever Handle
CV Rating 520
Electrical Rating Does Not Apply To Product
Inlet Connection Size 3 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
LeadFree NO
Maximum Temperature-Fahrenheit 400
Minimum Temperature-Fahrenheit 0
ModelNumber C-FBV-1 3
Operating Torque 780.0
Outlet Connection Size 3 IN
Outlet Connection Type Female Threaded
Outlet Thread Type FPT
Part Number 0548009
Port Type Full
Seat Material PTFE
Series C-FBV-1
Stem Packing Material PTFE
Stem Shaft Material 304 Stainless Steel
Stem Type Bottom Loaded Blowout Proof
Thrust Washer Material PTFE
Valve Style 2-piece
WOG Rating 1000 PSI
