FBV-3
Discontinued
2-Piece, Full Port, Brass Ball Valves
FBV-3
Discontinued
2-Piece, Full Port, Brass Ball Valves

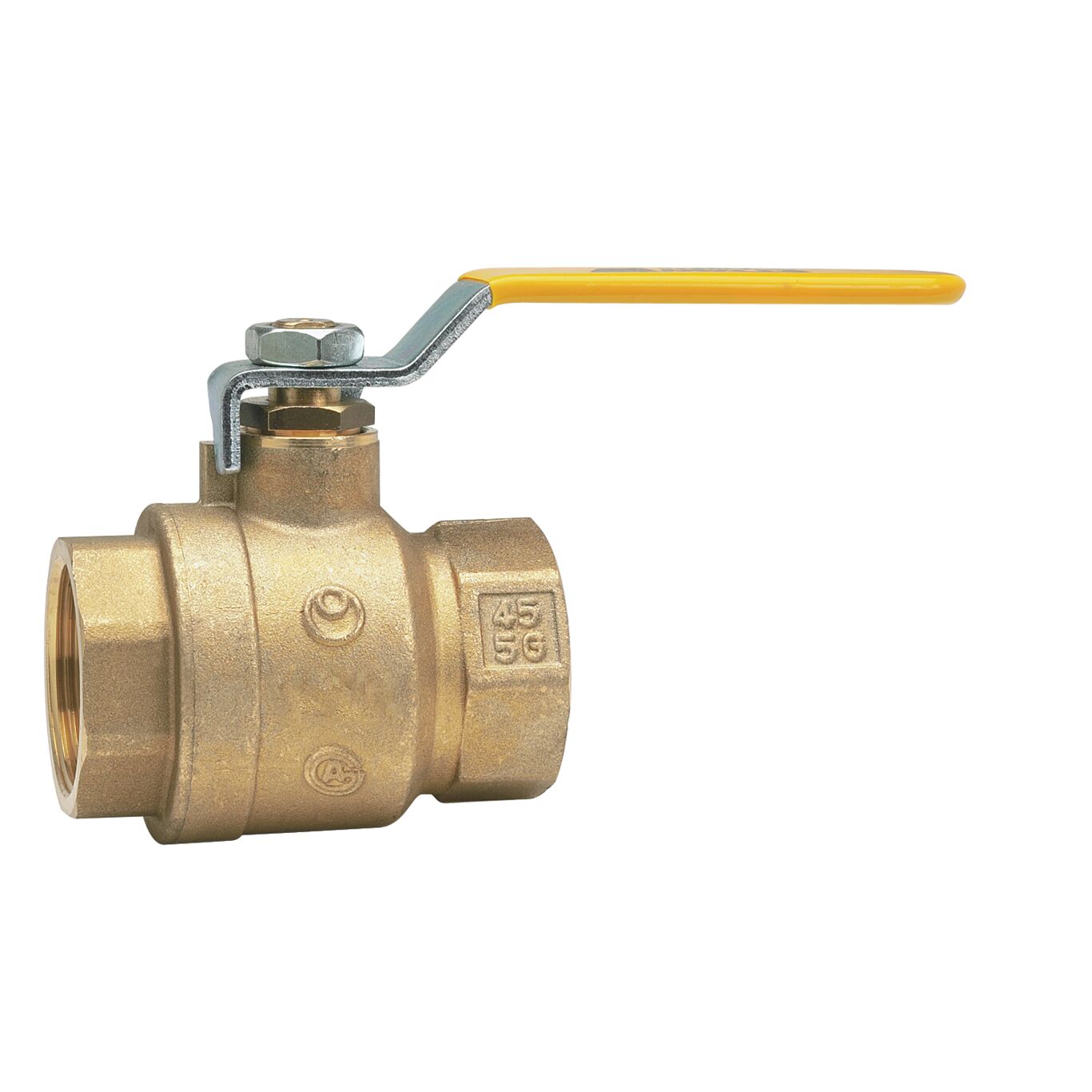

Series FBV-3, FBVS-3 2-Piece, Full Port, Brass Ball Valves are used in commercial and industrial applications for a full range of liquids and gases. It consists of a bottom-loaded blowout-proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter, and steel handle. Model FBV-3 has female NPT end connections. Model FBVS-3 has solder end connections. Pressure Rating: For 1/4 to 2 in. - 600psi WOG; 150psi WSP; For 2 1/2 to 3 in. FBV-3 - 600psi WOG; 125psi WSP; For 2 1/2 to 3 in. FBVS-3 - 400psi WOG; 125psi WSP.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific FBV-3
