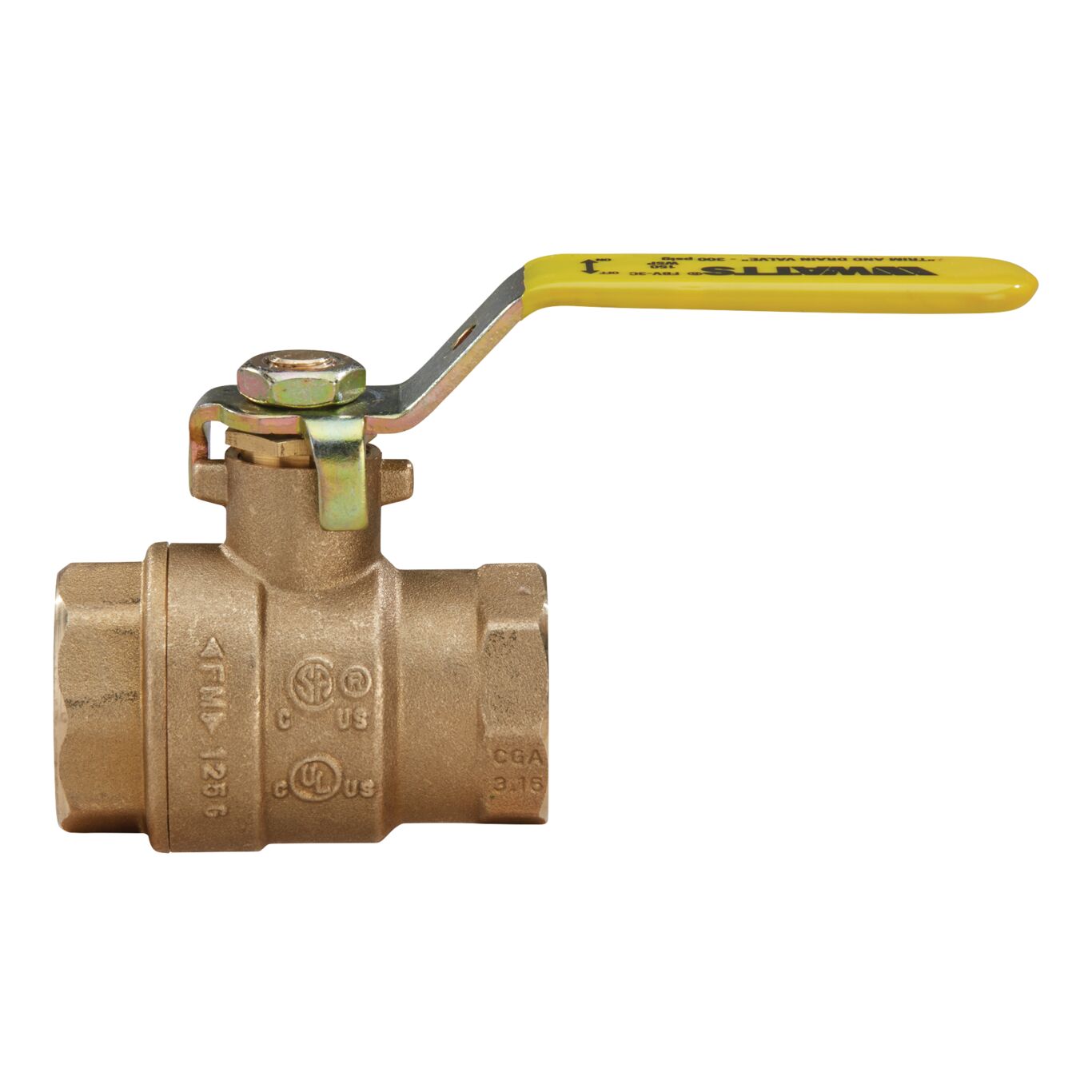

FBV-3C Watts

2-Piece, Full Port, Brass Ball Valves

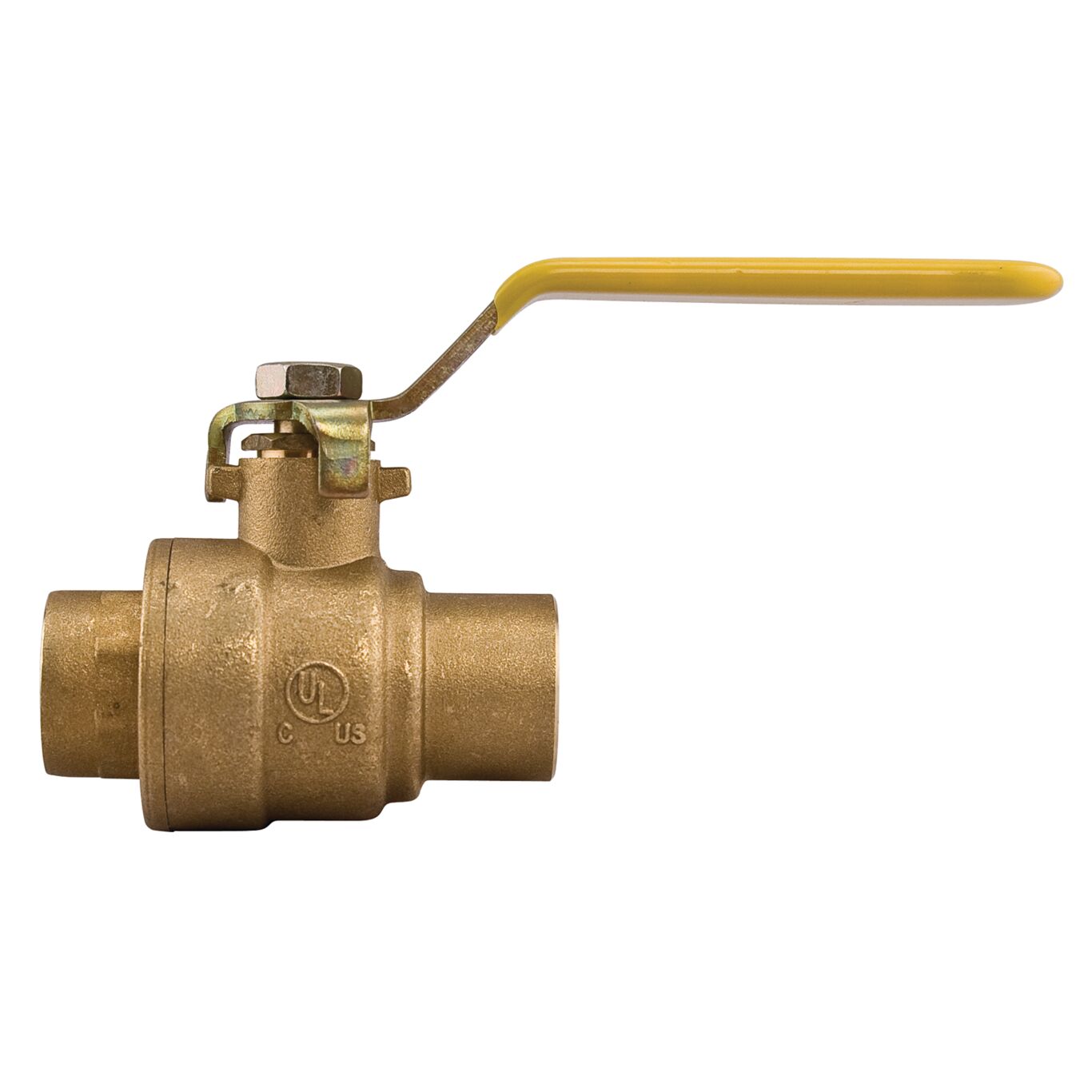

Series FBV-3C & FBVS-3C 2-Piece, Full Port, Brass Ball Valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blowout-proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter, and steel handle. Model FBV-3C has threaded end connections. Model FBV-3C-TH has tee handle with threaded and solder connections. Model FBVS-3C has solder end connections. Pressure Rating for 1/4 in. ‒ 2 in. (8 ‒ 50mm) is 600psi WOG and 150psi WSP. 2 1/2 in. to 4 in. (35 ‒ 100mm) is 400psi WOG and 125psi WSP.

Features

  • Fluorocarbon elastomer stem O-ring prevents stem leaks
  • Used in commercial and industrial applications for a full range of liquids and gases
  • Available in several sizes with solder and threaded end connections
  • Recommended for open/close applications

Select a Model

Select options below to identify the UPC, Order Code, and Repair Kit for a specific FBV-3C
