G4000-FDA 2
×
![]()
Part of the G4000-FDA Series
Ordering Code: 0820972
UPC: 098268093063
Lead Free: NO

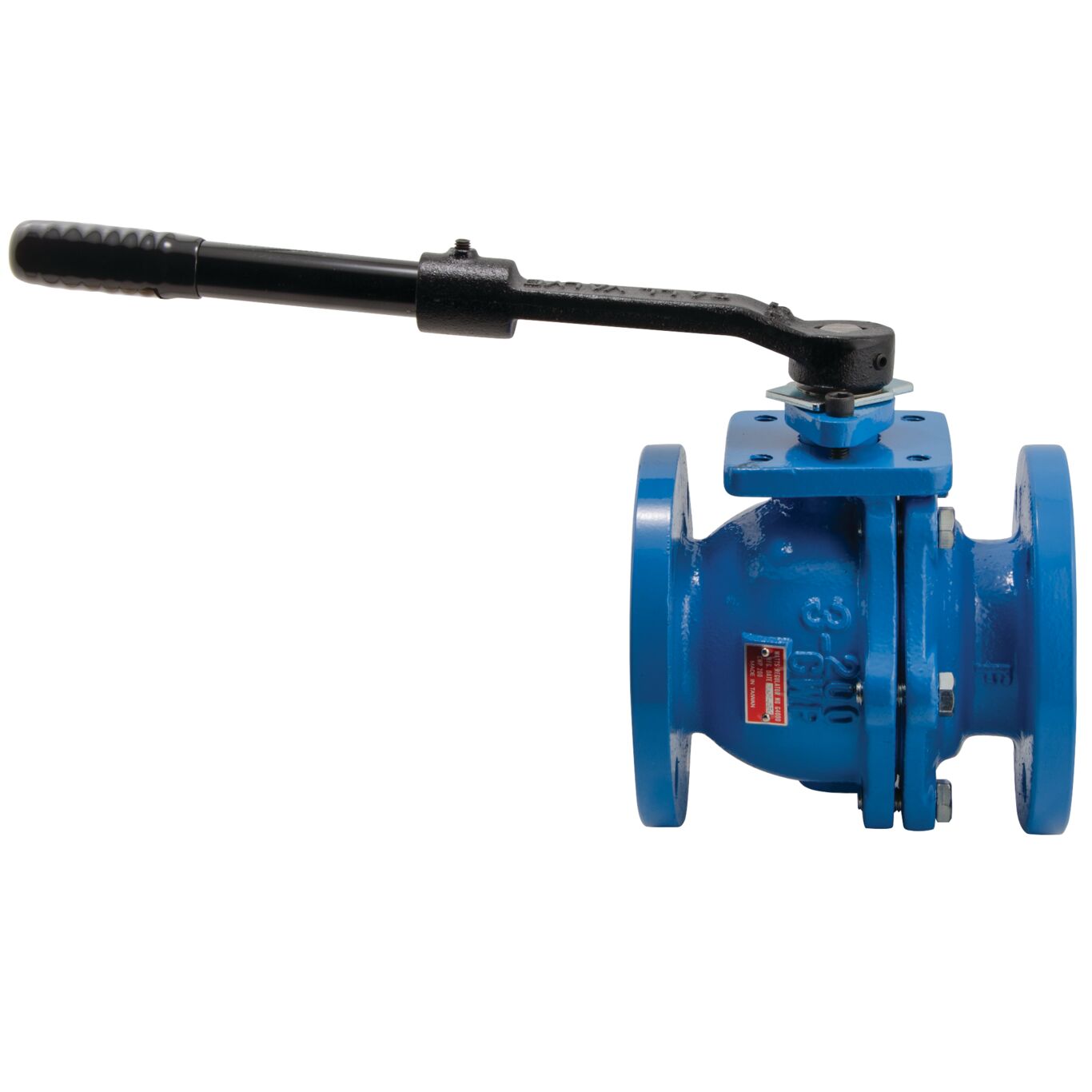

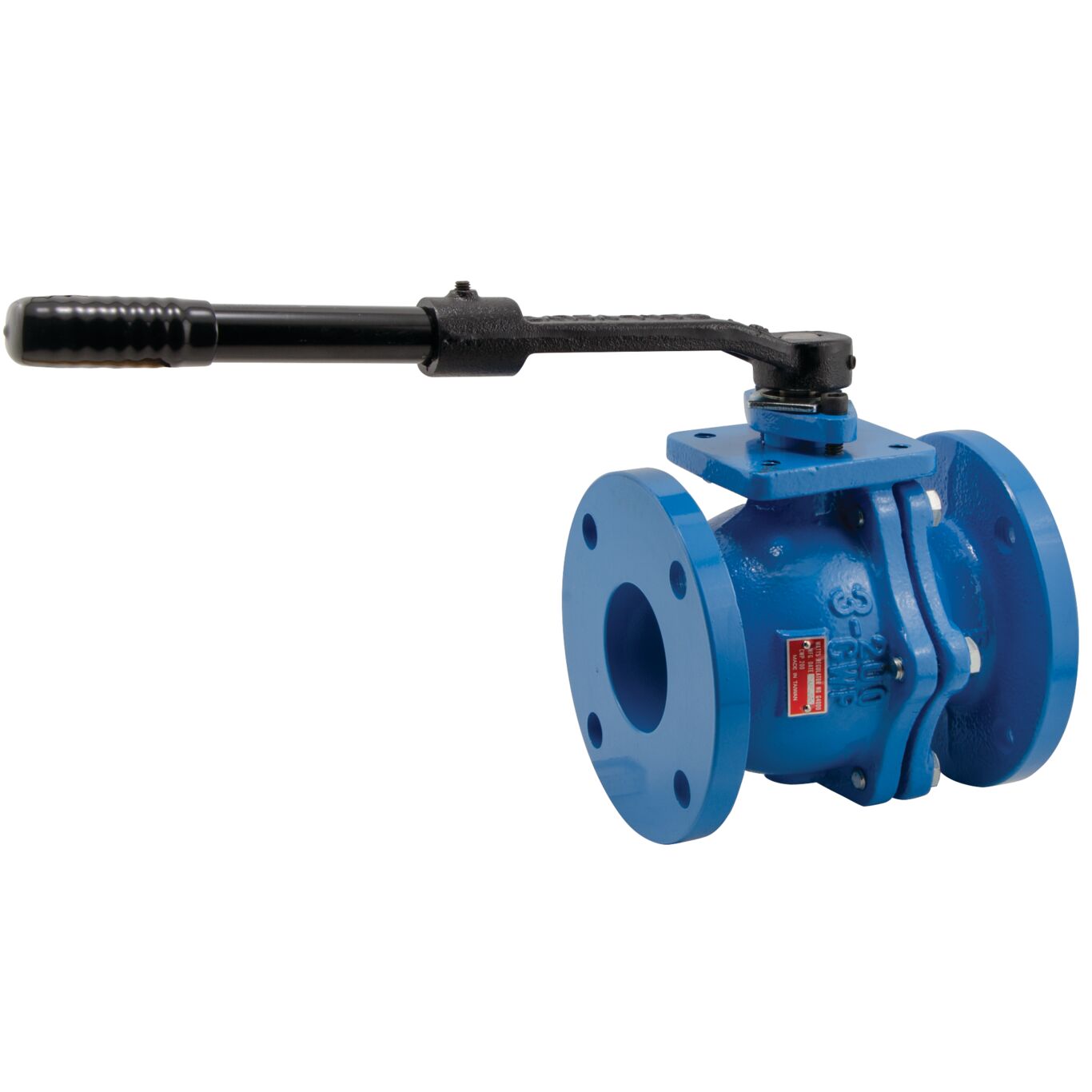

2 IN Flanged Ball Valve
This 2-Piece Full Port Cast Iron FDA Approved Flanged Ball Valve, 2 IN Watts Model G4000-FDA, is used in commercial, industrial, and process applications requiring a non-corrosive body finish or where a clean cosmetic appearance is desired. Since it is FDA approved it is ideal for potable water and food contact applications.
Features
- Cast iron
- Flanged
- FDA approved
- Full port
| Specifications | |
|---|---|
| Actuation | No |
| Assembled Dry | No |
| Balance Stop Plate | No |
| Ball Material | 304 Stainless Steel |
| Body Finish | Cast Iron |
| Body Material | Cast Iron |
| Brand | Watts |
| Buy American Act Compliant | NO |
| Control Type | Gear Operator |
| CV Rating | 330 |
| EAN | 098268093063 |
| Inlet Connection Size | 2 IN |
| Inlet Connection Size-Metric | 50 MM |
| Inlet Connection Type | Flanged Joint |
| Lead Free | NO |
| Maximum Temperature-Fahrenheit | 140 |
| Minimum Temperature-Fahrenheit | 60 |
| Operating Torque | 450 |
| Outlet Connection Size | 2 IN |
| Outlet Connection Type | Flanged Joint |
| Part Number | 0820972 |
| Port Type | Full |
| Seat Material | PTFE |
| Series | G4000-FDA |
| Stem Packing Material | PTFE |
| Stem Shaft Material | 304 Stainless Steel |
| Valve Style | 2-piece |
