GBV-FL 1/2X1/2

Part of the GBV Series

Ordering Code: 0545004

UPC: 098268074383

Lead Free: NO

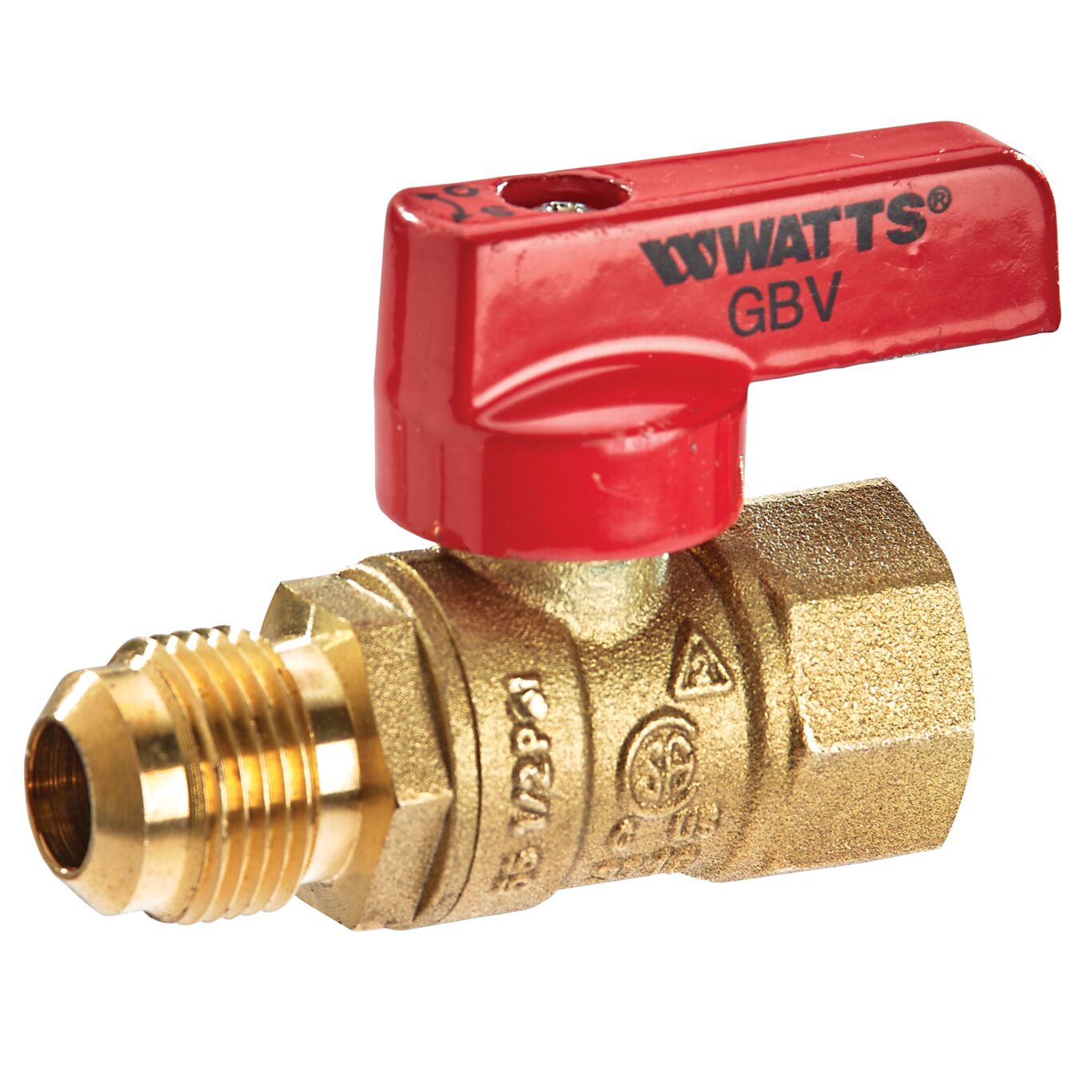

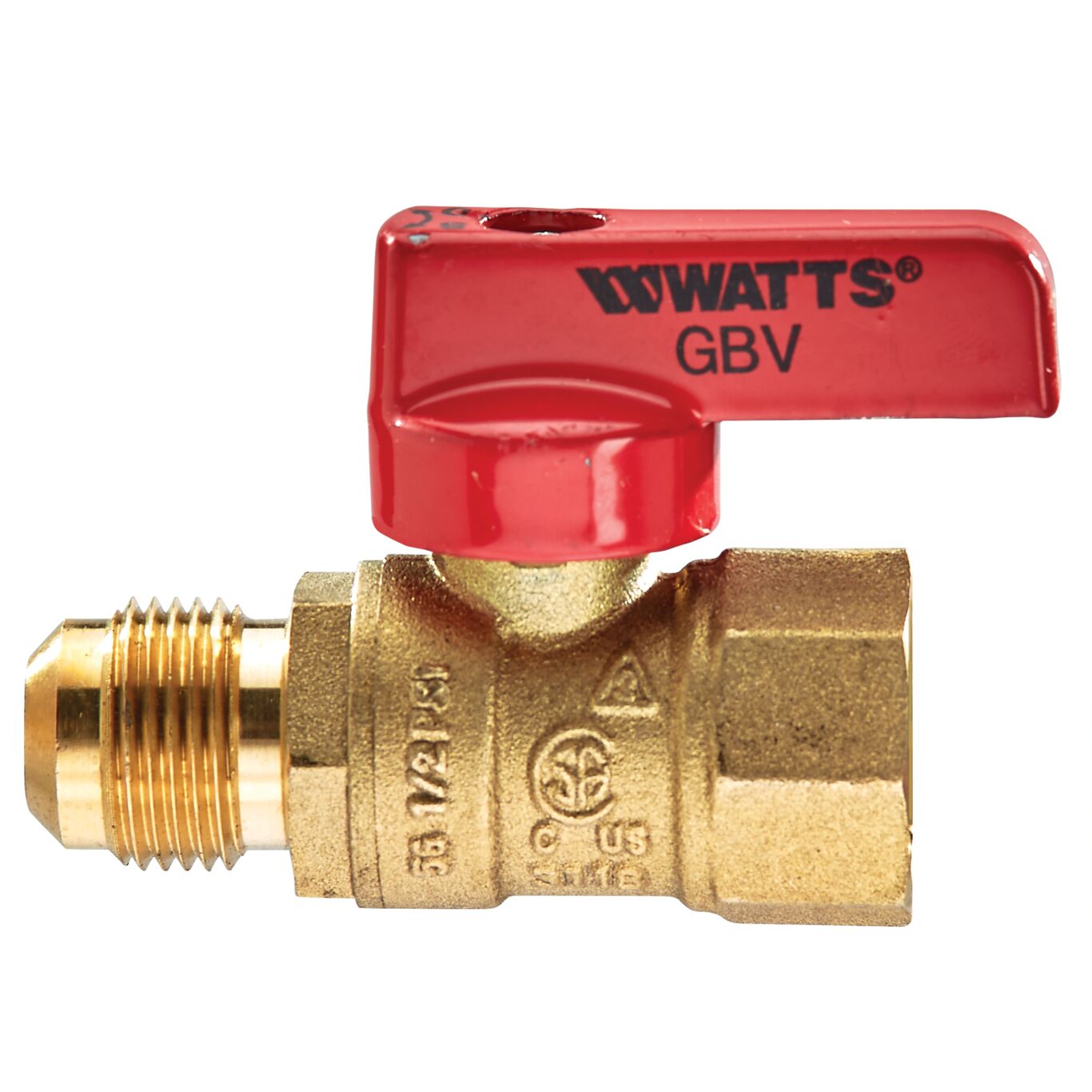

1/2 X 1/2 In 2-Piece Ball Valve For Gas With Npt X Flared Connection, Tee Handle

This 1/2 x 1/2 inch two-piece full port brass gas ball valve with female threaded end connection by flared end connection is used in residential and commercial applications for natural gas and LP gas on in-house and indoor piping systems. The valve features brass body construction, virgin PTFE seats and seals, brass end piece and plug, and zinc alloy handle. The temperature range is -20 to 125 degrees F (-29 to 52 degrees C). The maximum working pressure is 5 PSI (34 kPa).

Product Features

  • Used for LP and natural gas in residential and commercial applications
  • Brass two-piece body construction
  • NPT female connection x flared connection and T-handle
  • UL approved at 5 PSI (34.2 kPa)
  • Complies with ANSI standards for gas piping
Specifications
Actuation No
Assembled Dry No
Balance Stop Plate No
Ball Material Brass
Body Finish Brass
Body Material Brass
BrandName Watts
Control Type Tee Handle
Electrical Rating Does Not Apply To Product
Inlet Connection Size 1/2 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
LeadFree NO
Maximum Temperature-Fahrenheit 125
Minimum Temperature-Fahrenheit -20
ModelNumber GBV-FL 1/2X1/2
Outlet Connection Size 1/2 IN
Outlet Connection Type Flare Joint
Outlet Thread Type Does Not Apply To Product
Part Number 0545004
Seat Material PTFE
Series GBV
Stem Packing Material PTFE
Stem Shaft Material Brass
Stem Type Does Not Apply To Product
Valve Style 2-piece
WOG Rating 5 PSI
