LFB6001 3/8

Discontinued - Replaced By: LFB6081G2 3/8

Part of the LFB6000 Series

Ordering Code: 0555195

UPC: 098268433081

Lead Free: YES

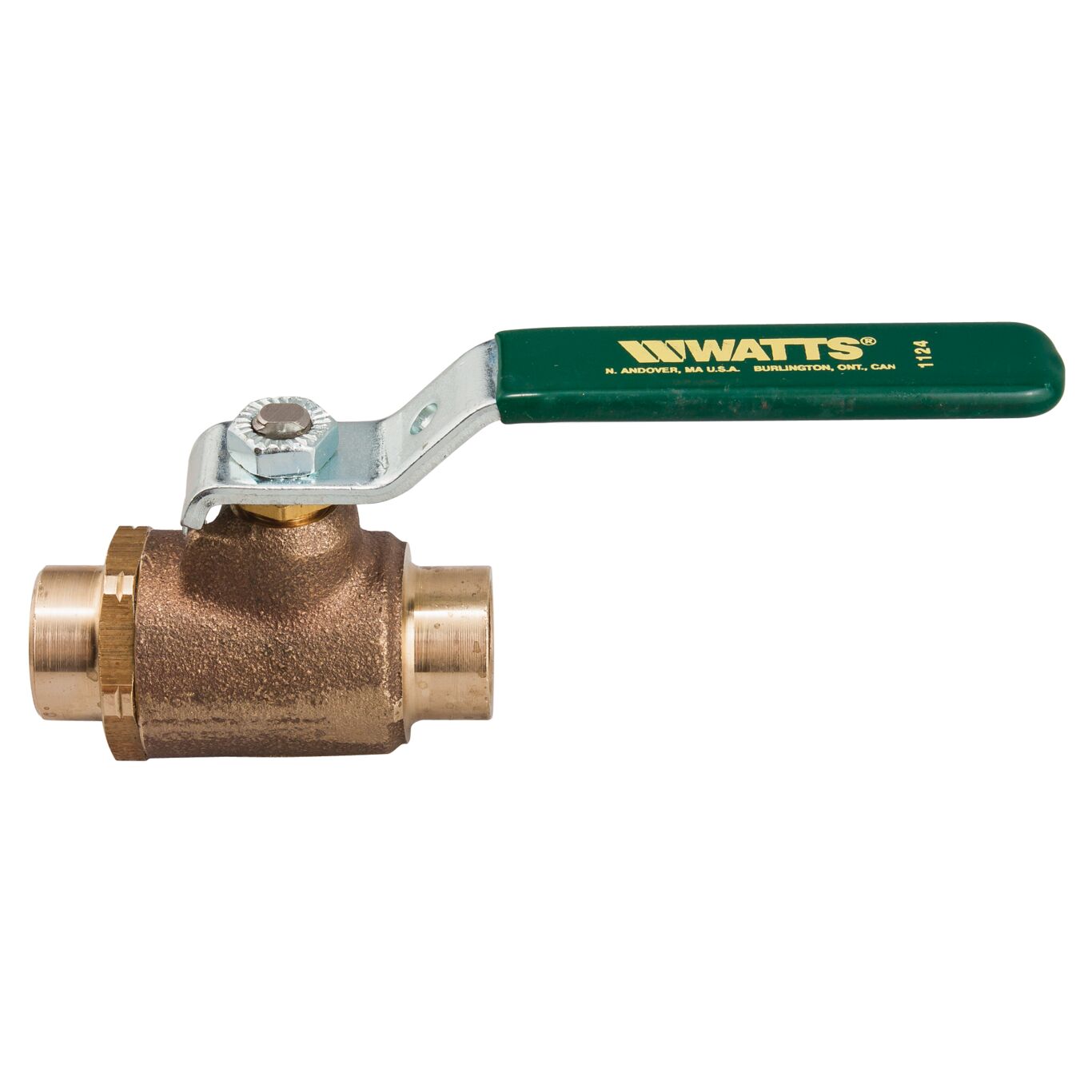

3/8 IN Lead Free 2-Piece Standard Port Ball Valve with Solder End Connections

This 3/8 inch lead free two-piece standard port ball valve with solder end connections is used in commercial and industrial applications for potable water applications. It features a blowout proof pressure retaining stem, while the standard port orifice ensures minimal pressure drop. The durable seats provide tighter torque and more abrasion resistance for longer lasting service. The temperature range is 0 to 450 degrees F (minus 18 to 232 degrees) at 50 psi (344.7 kPa). The pressure rating is 600 psi (41.4 bar) WOG non-shock and 150 psi (10.3 bar) WSP.

Product Features

  • Standard port for minimal pressure drop
  • Lead free copper silicon alloy construction
  • Adjustable packing gland
  • Blowout proof, pressure retaining stem
  • Lasting service for a wide range of potable water applications
  • Solder end connections
  • Low operating torque
  • Factory tested to assure high quality performance
Actuation No
Assembled Dry No
Balance Stop Plate No
Ball Material Brass
Body Finish Bronze
Body Material Brass
Brand Name Watts
Class Rating Does Not Apply To Product
Control Type Lever Handle
CV Rating 6
Electrical Rating Does Not Apply To Product
Inlet Connection Size 3/8 IN
Inlet Connection Size-Metric 10 MM
Inlet Connection Type Socket
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 450
Minimum Temperature - Celsius -18.00
Minimum Temperature-Fahrenheit 0
Model Number LFB6001 3/8
Operating Torque 60
Outlet Connection Size 3/8 IN
Outlet Connection Type Socket
Outlet Thread Type Does Not Apply To Product
Part Number 0555195
Port Type Standard
Seat Material Durafill
Series LFB6000
Stem Packing Material Glass Reinforced PTFE
Stem Shaft Material Brass
Stem Type Blowout Proof
Thrust Washer Material Glass Reinforced PTFE
Valve Style 2-piece
WOG Rating 600 PSI
