LFB6080
Discontinued
Lead Free* 2-Piece, Full Port, Ball Valves

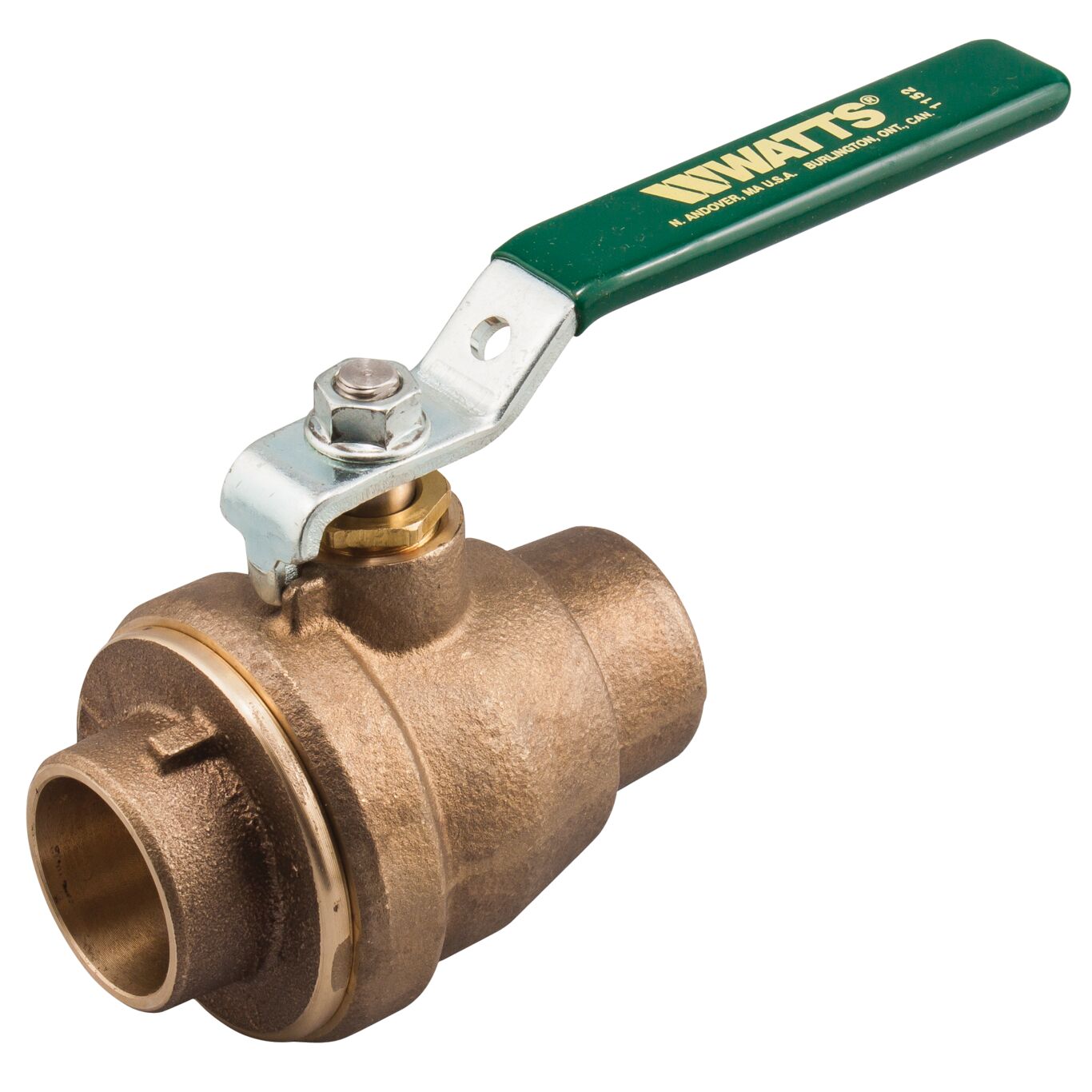

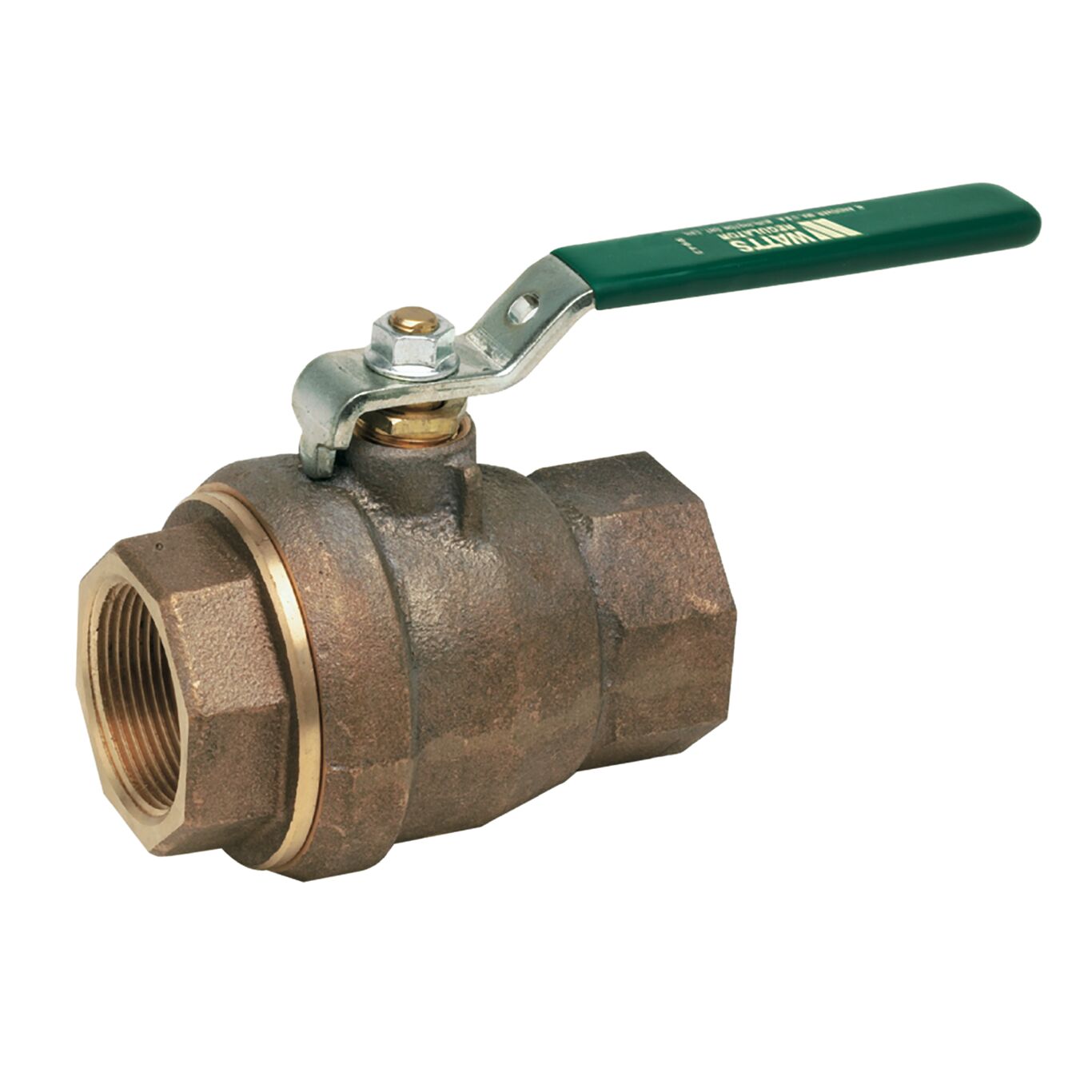

Series LFB6080 & LFB6081 Lead Free* 2-Piece, Full Port, Copper Silicon Alloy Ball Valves are used in commercial and industrial applications for a full range of liquids and gases. It features virgin PTFE seats and seals and the full port orifice ensures minimal pressure drop. Virgin PTFE stem packing seal and thrust washer and chrome plated brass ball provide lasting service. Model LFB6080 has threaded NPT end connections and Model LFB6081 has solder end connections. Pressure Rating is 600psi WOG (non-shock) and 150psi WSP.
Features
- Used in commercial applications for a full range of liquids and gases
- Blowout proof stem and a full-port orifice to ensure minimal pressure drop
- Lead Free* NSF-372 certification
- Available with threaded NPT and solder end connections
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFB6080
No results found
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
