LFB6080G2 3/8

Part of the LFB6080G2 Series

Ordering Code: 0450101

UPC: 098268763355

Lead Free: YES

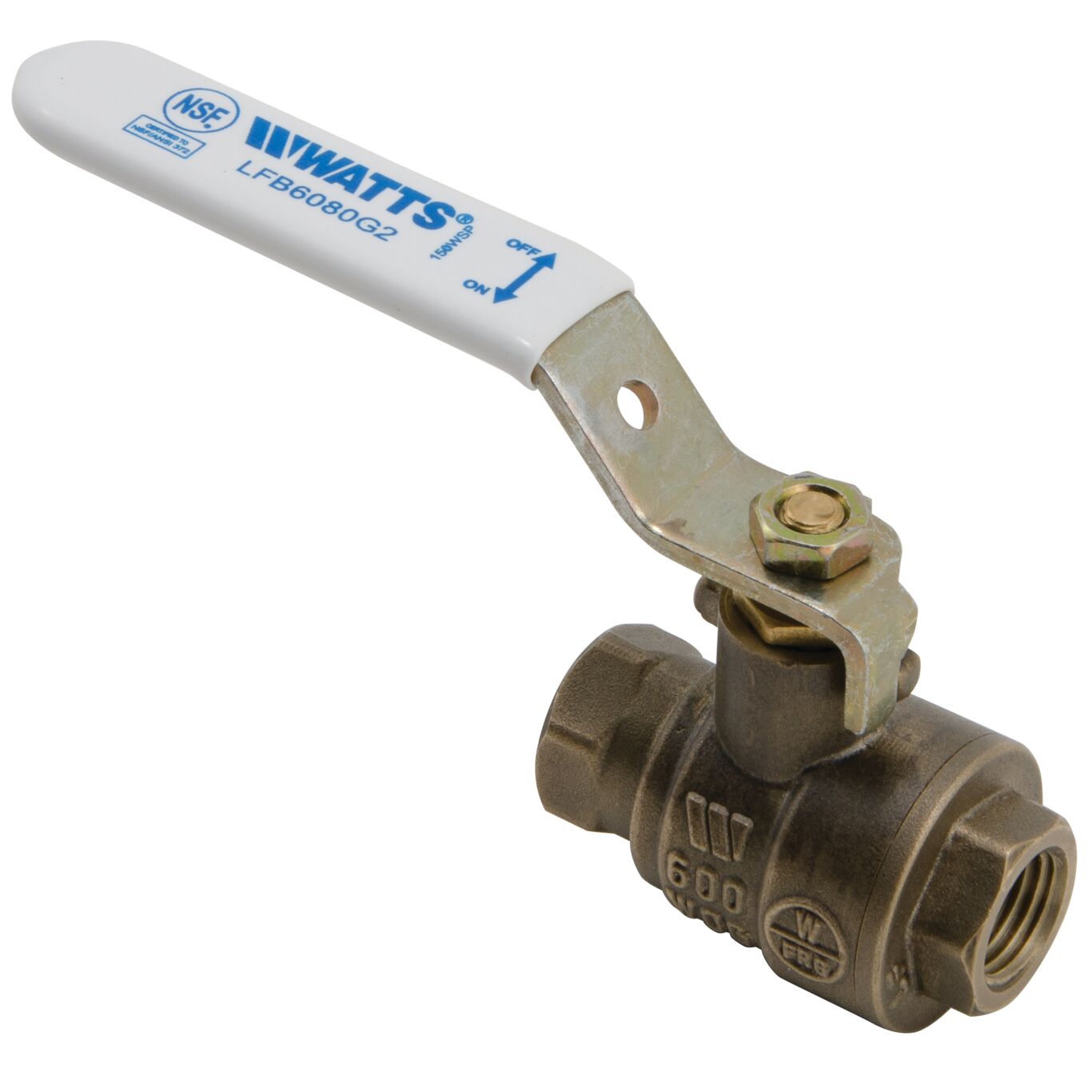

3/8 IN 2-Piece Full Port Lead Free Bronze Ball Valve, NPT End Connections

This 3/8 inch lead free 2-piece full port bronze ball valve with a threaded end connection is used in commercial and industrial applications for a full range of liquids and gases. A full port orifice ensures minimal pressure drop and the overall robust design provides lasting service. This ball valve is rated for 600 WOG/150 WSP.

Product Features

  • 600 PSI WOG rating
  • NSF 61-G certification
  • NPT threaded end connection
  • Full port design
Specifications
Actuation Yes
Assembled Dry No
Balance Stop Plate No
Ball Material Chrome Plated Brass
Body Finish Bronze
Body Material Bronze
BrandName Watts
Class Rating N/A
Control Type Tee Handle
CV Rating N/A
Electrical Rating N/A
Inlet Connection Size 3/8 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
LeadFree YES
Maximum Temperature-Fahrenheit 400
Minimum Temperature-Fahrenheit 0
ModelNumber LFB6080G2 3/8
Operating Torque N/A
Outlet Connection Size 3/8 IN
Outlet Connection Type Female Threaded
Outlet Thread Type FPT
Part Number 0450101
Port Type Full
Seat Material Virgin PTFE
Series LFB6080G2
Stem Packing Material Virgin PTFE
Stem Shaft Material Brass
Stem Type Blowout Proof
Thrust Washer Material Virgin PTFE
Valve Style 2-piece
WOG Rating 600 PSI
