LFB6400 4

Part of the LFB6400 Series

Ordering Code: 0123210

UPC: 098268673609

Lead Free: YES

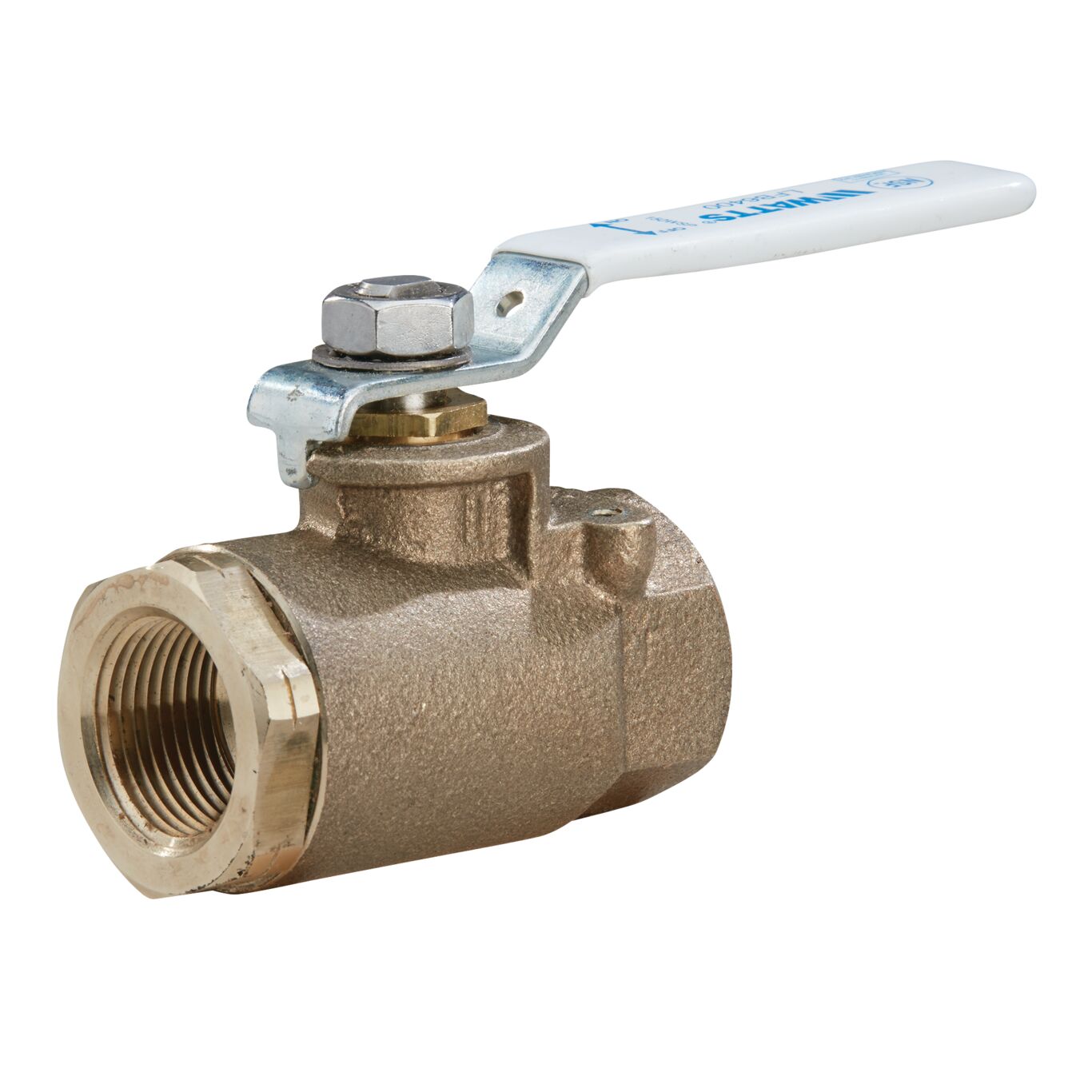

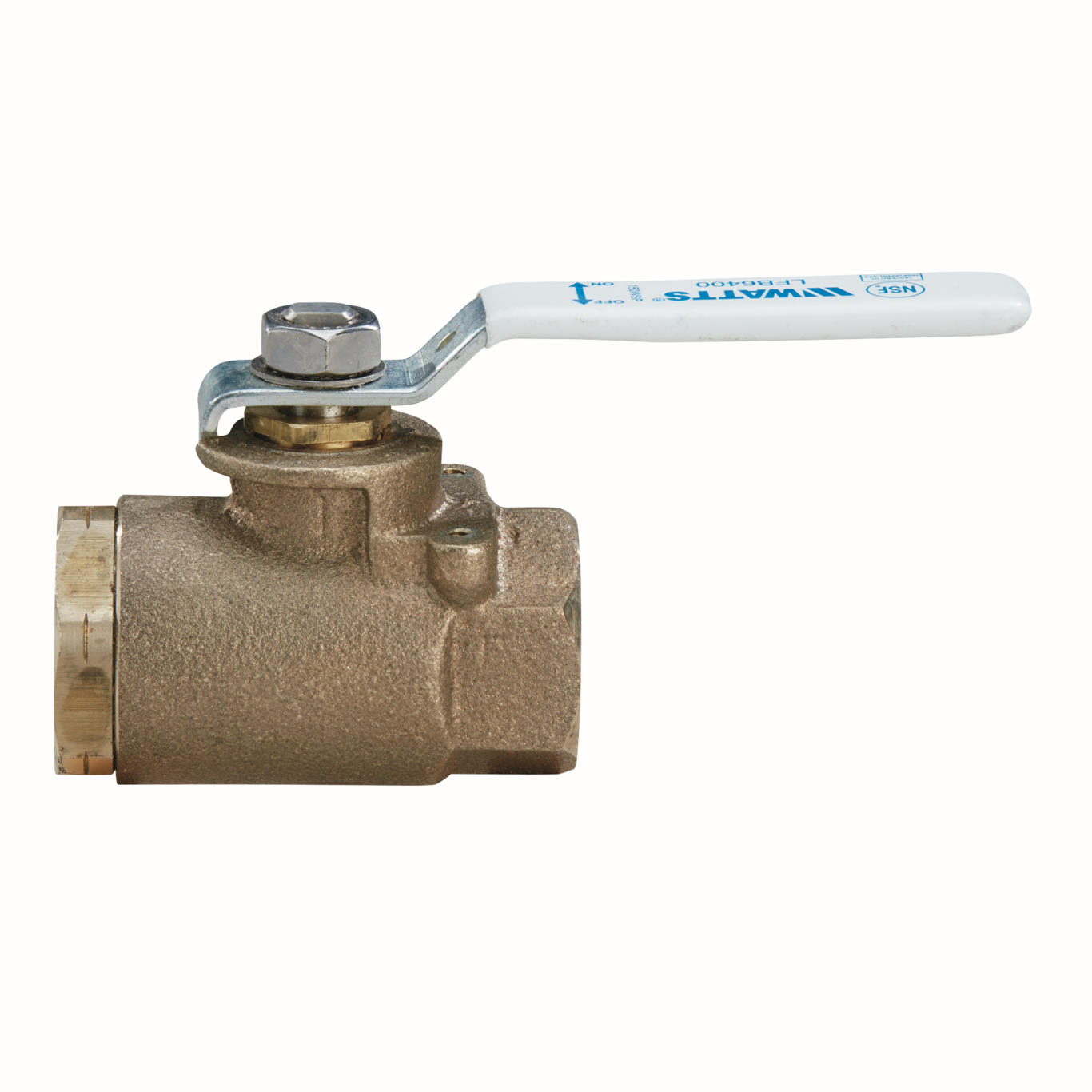

4 In Lead Free 2-Piece Standard Port Ball Valve With Actuator Mounting Pads

This 4 inch 2-piece lead free standard port ball valve with actuator mounting pads is used in commercial and industrial applications for a wide range of liquids and gases. It consists of Durafill (carbon glass filled PTFE) seat, bottom loaded blowout proof stem, stainless steel ball and adjustable stem packing to provide lasting service. This ball valve is rated for 125 WSP/400 WOG.

Product Features

  • Durafill seats
  • Adjustable stem packing gland
  • Lead free bronze
  • Blowout proof pressure retaining stem
Specifications
Actuation No
Assembled Dry Yes
Balance Stop Plate No
Ball Material 316 Stainless Steel
Body Finish Bronze
Body Material Lead Free Copper Silicon Alloy
Brand Name Watts
Control Type Lever Handle
CV Rating 450 GPM
EANUCCCode 098268673609
Inlet Connection Size 4 IN
Inlet Connection Size-Metric 100 MM
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 450
Minimum Temperature - Celsius -49.00
Minimum Temperature-Fahrenheit -55
Operating Torque 800.0
Outlet Connection Size 4 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0123210
Port Type Standard
Seat Material Carbon/Glass Reinforced PTFE Durafill
Series LFB6400
Stem Packing Material Glass Reinforced PTFE
Stem Shaft Material 316 Stainless Steel
Stem Type Bottom Loaded Blowout Proof
Thrust Washer Material Glass Reinforced PTFE
Valve Style 2-piece
WOG Rating 400 PSI
