LFB6800 1 1/2

Part of the LFB6800 Series

Ordering Code: 0123239

UPC: 098268689723

Lead Free: YES

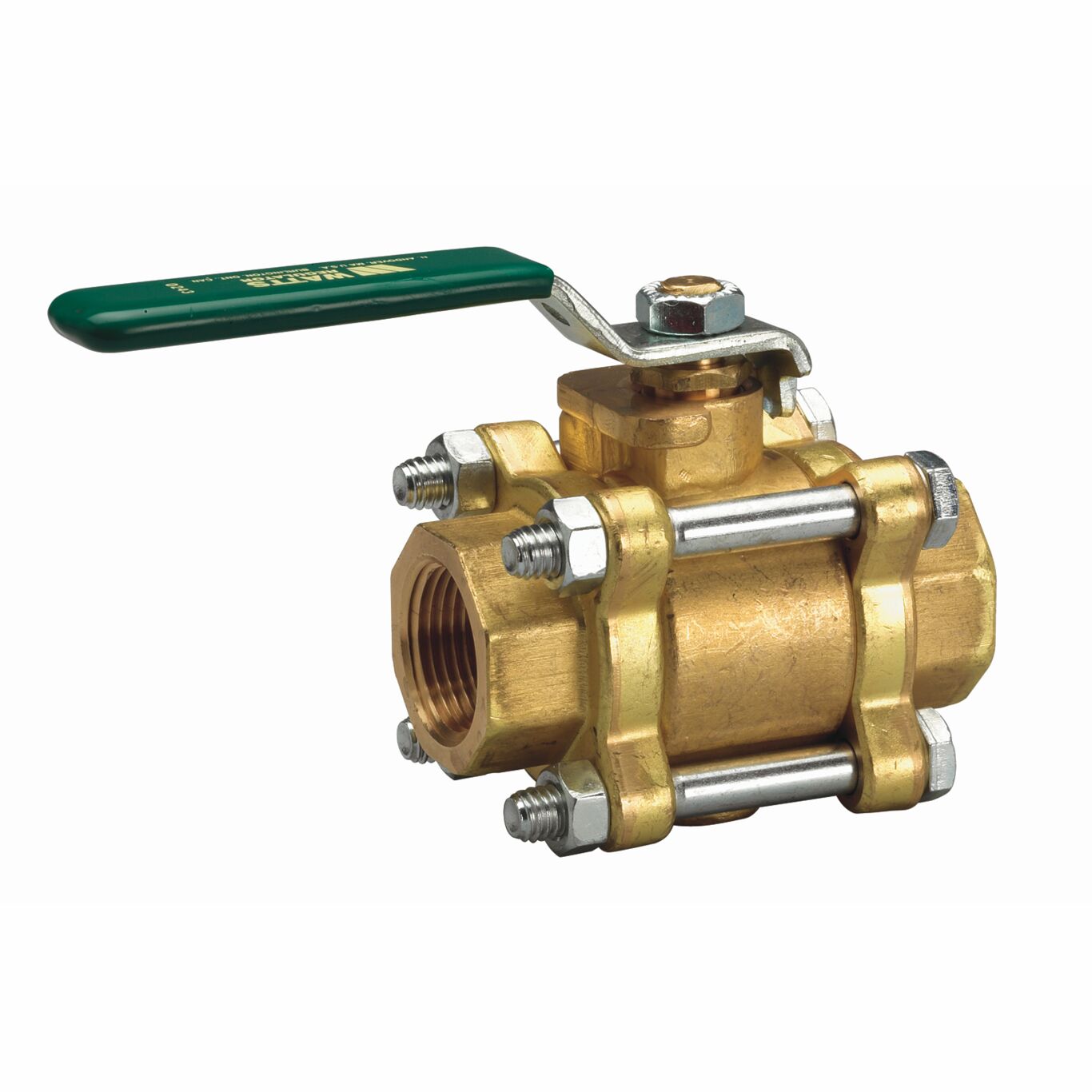

1 1/2 IN Lead Free 3-Piece Full Port Ball Valve, Threaded NPT End Connections

This 1 1/2 inch 3-piece full port lead free ball valve is used in commercial and industrial applications. It features an in-line maintenance design that offers serviceability of all operating parts without disturbing the piping system. The full port orifice ensures maximum flow capacity. This valve consists of a lead free body with threaded NPT end connections, reinforced PTFE Durafill (R) seat, chrome plated lead free brass ball, and blow-out proof stem to provide safety and high operating pressure/temperature limits.

Product Features

  • Lead free construction
  • Full port
  • Threaded NPT end connections
  • Blowout proof pressure retaining stem
Actuation Yes
Assembled Dry No
Balance Stop Plate No
Ball Material 316 Stainless Steel
Body Finish Brass
Body Material Brass
Brand Name Watts
Control Type Tee Handle
CV Rating 130
EANUCCCode 098268689723
Inlet Connection Size 1 1/2 IN
Inlet Connection Size-Metric 40 MM
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 450
Minimum Temperature - Celsius -18.00
Minimum Temperature-Fahrenheit 0
Operating Torque 320.0
Outlet Connection Size 1 1/2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type FPT
Part Number 0123239
Port Type Full
Seat Material Carbon/Glass Reinforced PTFE Durafill
Series LFB6800
Stem Packing Material Glass Reinforced PTFE
Stem Shaft Material 316 Stainless Steel
Stem Type Blowout Proof
Thrust Washer Material Glass Reinforced PTFE
Valve Style 3-piece
WOG Rating 400 PSI
