LFB6800-LC 3/8

Part of the LFB6800 Series

Ordering Code: 0125244

UPC: 098268853117

Lead Free: YES

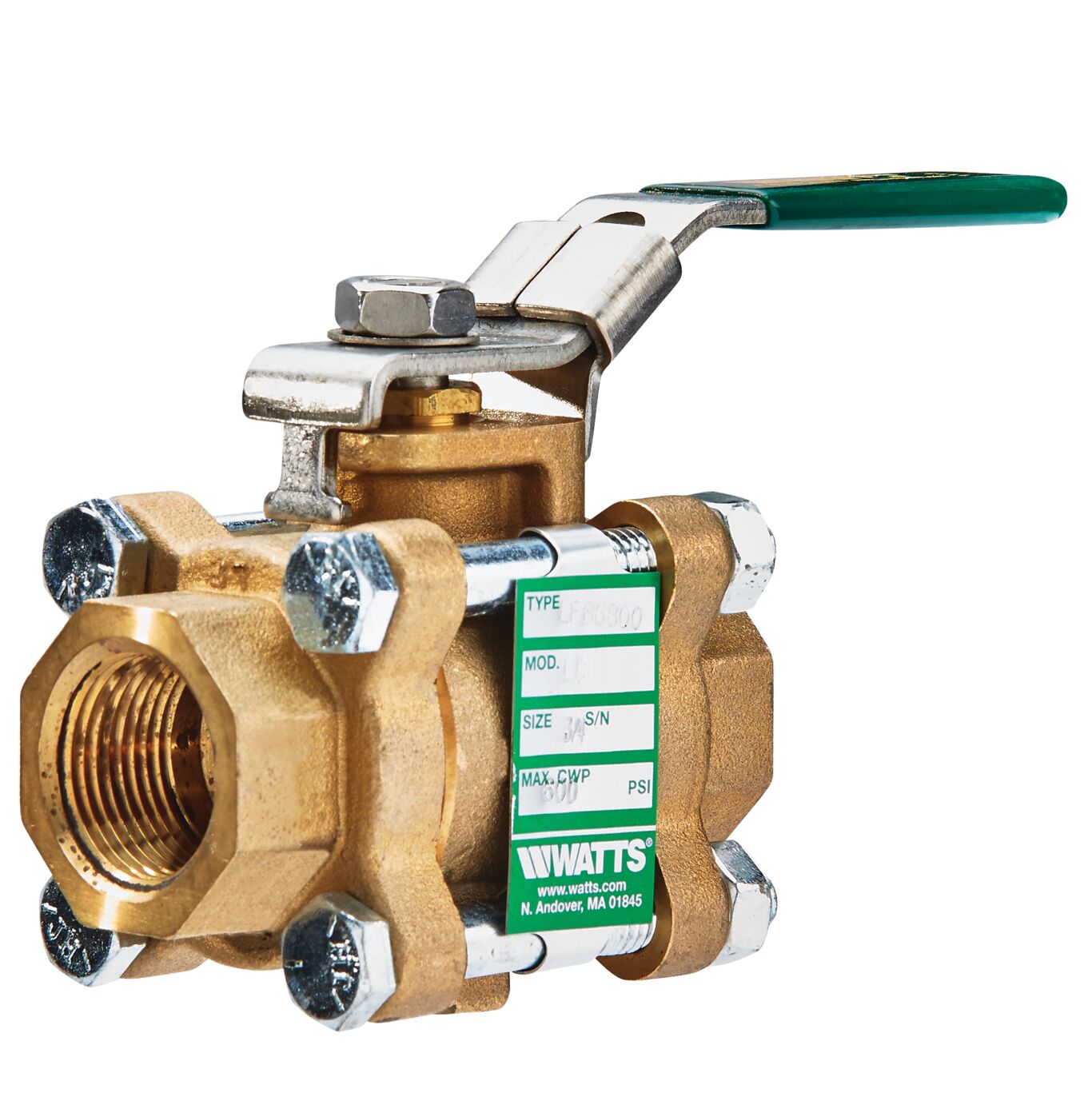

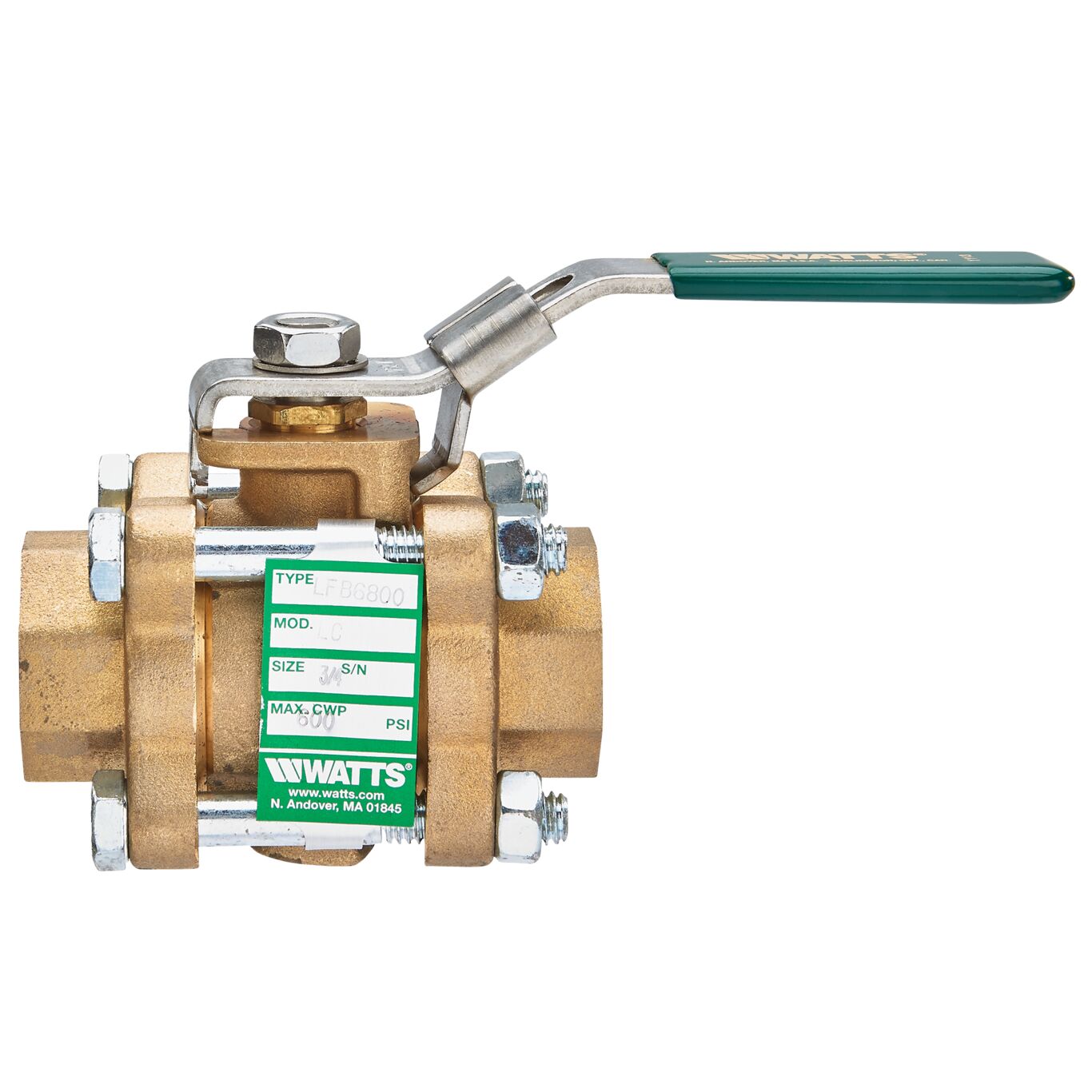

3/8 IN Lead Free 3-Piece Full Port Ball Valve, Threaded NPT End Connections, Latch-Lok Handle Latch and Lock

  • Lead free construction
  • Blowout proof pressure retaining stem
  • Threaded NPT end connections
  • Latch-Lok handle latch and lock
Specifications
Actuation Yes
Assembled Dry No
Balance Stop Plate No
Ball Material 316 Stainless Steel
Body Finish Brass
Body Material Brass
Brand Watts
Control Type Tee Handle
CV Rating 6
EAN 098268853117
Inlet Connection Size 3/8 IN
Inlet Connection Size-Metric 10 MM
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 450
Minimum Temperature - Celsius -18.00
Minimum Temperature-Fahrenheit 0
Operating Torque 60.0
Outlet Connection Size 3/8 IN
Outlet Connection Type Female Threaded
Outlet Thread Type FPT
Part Number 0125244
Port Type Full
Seat Material Carbon/Glass Reinforced PTFE Durafill
Series LFB6800
Stem Packing Material Glass Reinforced PTFE
Stem Shaft Material 316 Stainless Steel
Stem Type Blowout Proof
Thrust Washer Material Glass Reinforced PTFE
Valve Style 3-piece
WOG Rating 600 PSI
