LFBRVS-125 3/4

Discontinued - Replaced By: 3/4 LFBRVM1SXSXC-125

Part of the LFBRV Series

Ordering Code: 0556028

UPC: 098268432633

Lead Free: YES

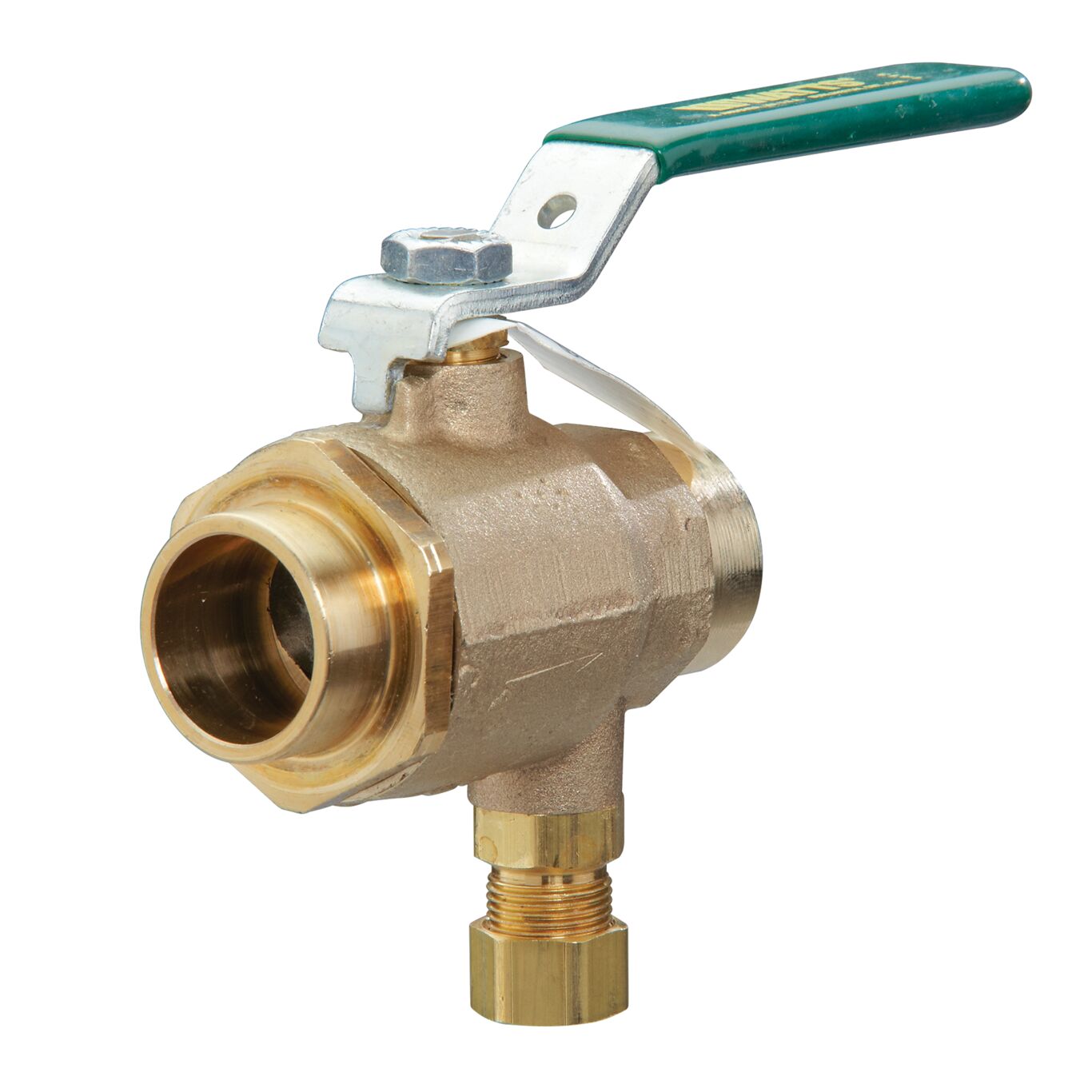

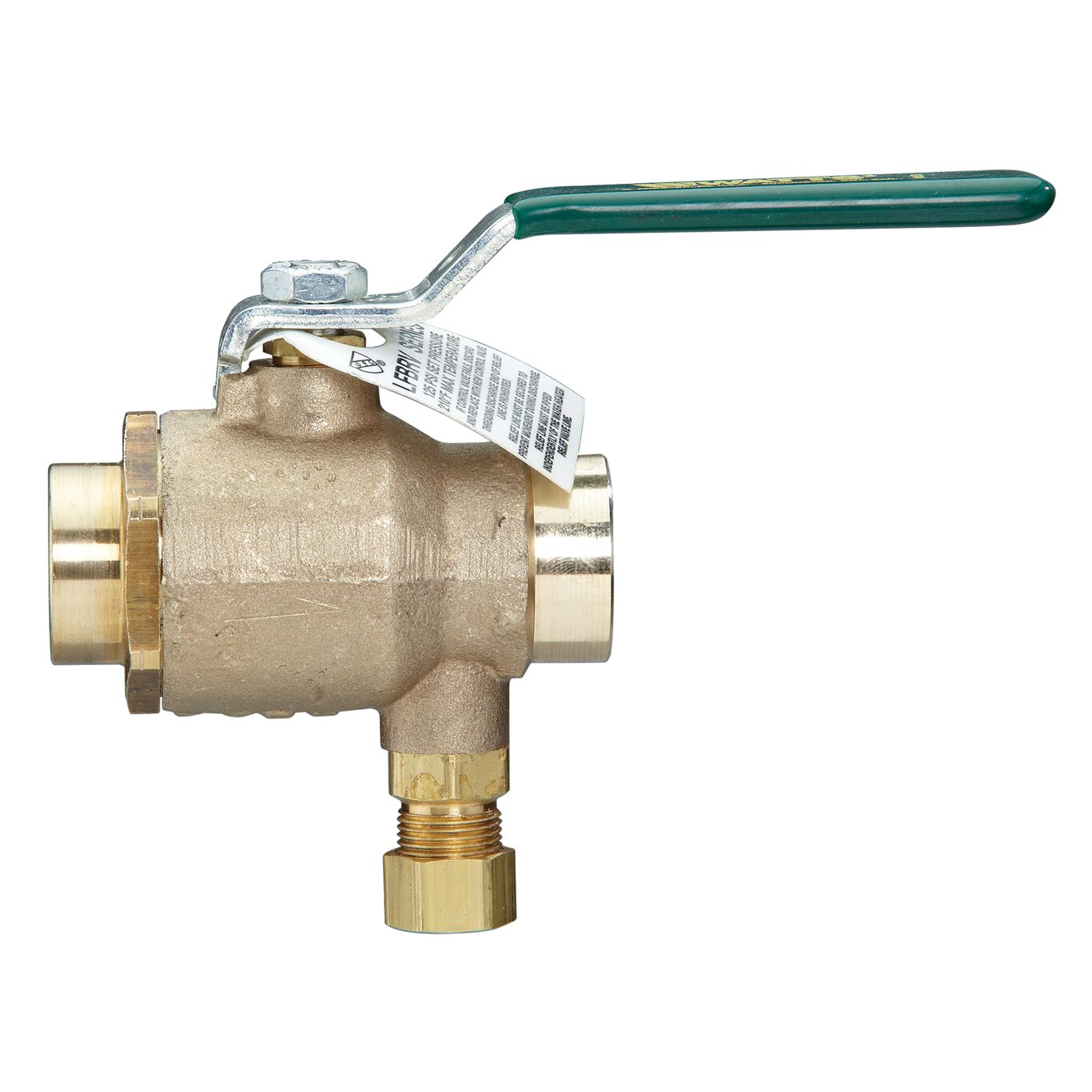

3/4 In Lead Free Combination Ball And Relief Valve, Sweat X Sweat X Sweat, 125 psi

This 3/4 inch lead free combination ball valve and relief valve is used in commercial and residential applications on water heater installations. It consists of a lead free bronze body with a reduced port with 3/4 inch sweat x sweat inlet and outlet connections, nickel plated lead free brass ball, blowout-proof lead free brass stem, PTFE seats, stem packing, and stem thrust bearing, Viton relief ball, stainless steel relief spring, brass adapter, and steel handle. The relief valve outlet includes a drain tube connection with a 3/4 inch sweat fitting. It has a low profile design and can be installed in any position. It is for applications that require a means to shut off the water supply to the water heater and for providing protection from excess water pressure caused by thermal expansion. The pressure rating is 400 psi and the pressure relief is set at 125 psi (8.6 bar).

Product Features

  • Full port ball valve
  • Relieves thermal expansion
  • 125 psi relief setting
  • Blowout proof stem
Actuation No
Assembled Dry No
Balance Stop Plate No
Ball Material Stainless Steel
Body Finish Bronze
Body Material Lead Free Copper Silicon Alloy
Brand Name Watts
Class Rating Does Not Apply To Product
Control Type Lever Handle
CV Rating Does Not Apply To Product
Electrical Rating Does Not Apply To Product
Inlet Connection Size 3/4 IN
Inlet Connection Size-Metric 20 MM
Inlet Connection Type Socket
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 100
Minimum Temperature - Celsius -18.00
Minimum Temperature-Fahrenheit 99
Model Number LFBRVS-125 3/4
Operating Torque 150
Outlet Connection Size 3/4 IN
Outlet Connection Type Socket
Outlet Thread Type Does Not Apply To Product
Part Number 0556028
Port Type Full
Seat Material Virgin PTFE
Series LFBRV
Stem Packing Material PTFE
Stem Shaft Material Stainless Steel
Stem Type Blowout Proof
Thrust Washer Material PTFE
Valve Style 2-piece
WOG Rating 400 PSI
