LFBRVT-80 3/4

Part of the LFBRV Series

Ordering Code: 0125273

UPC: 098268853841

Lead Free: YES

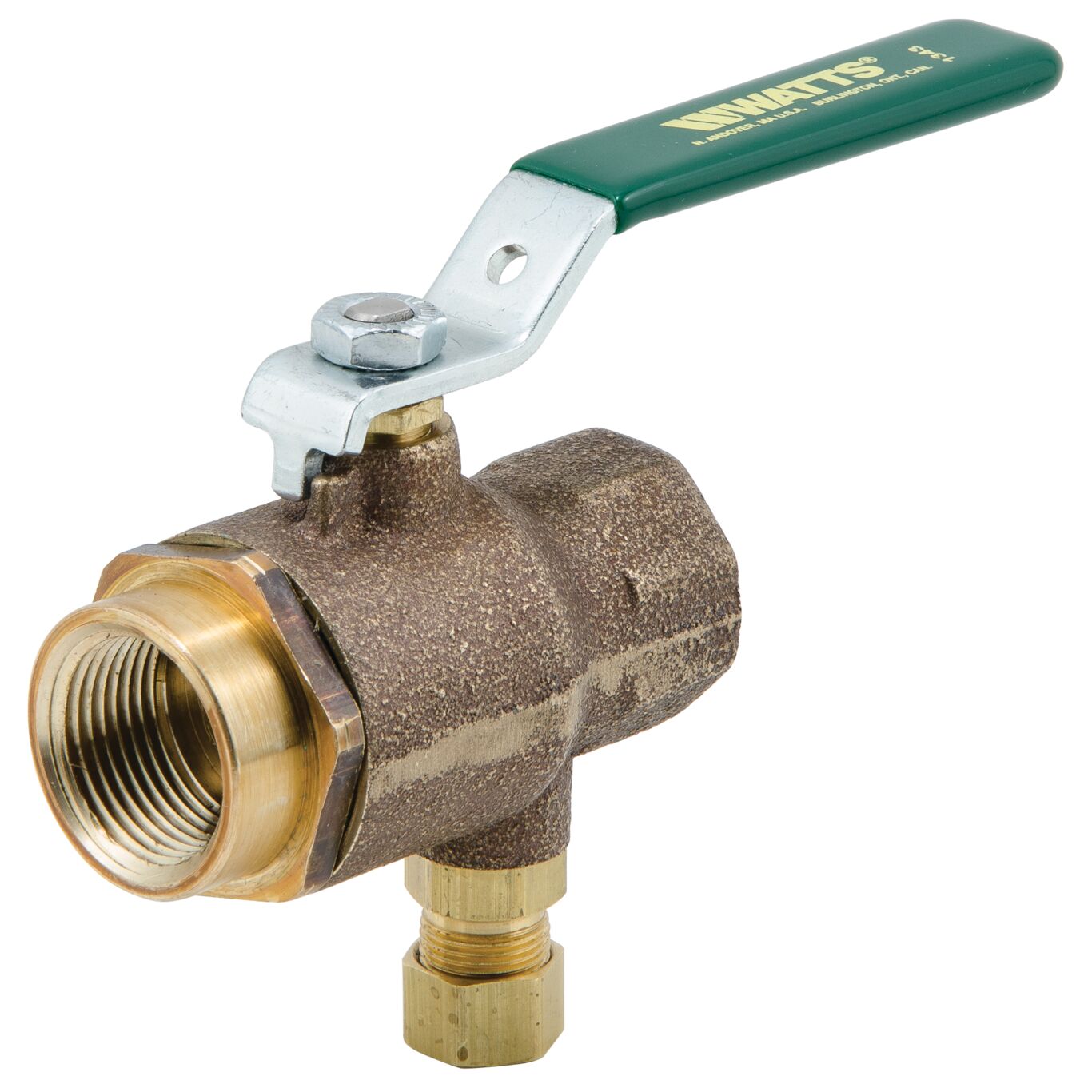

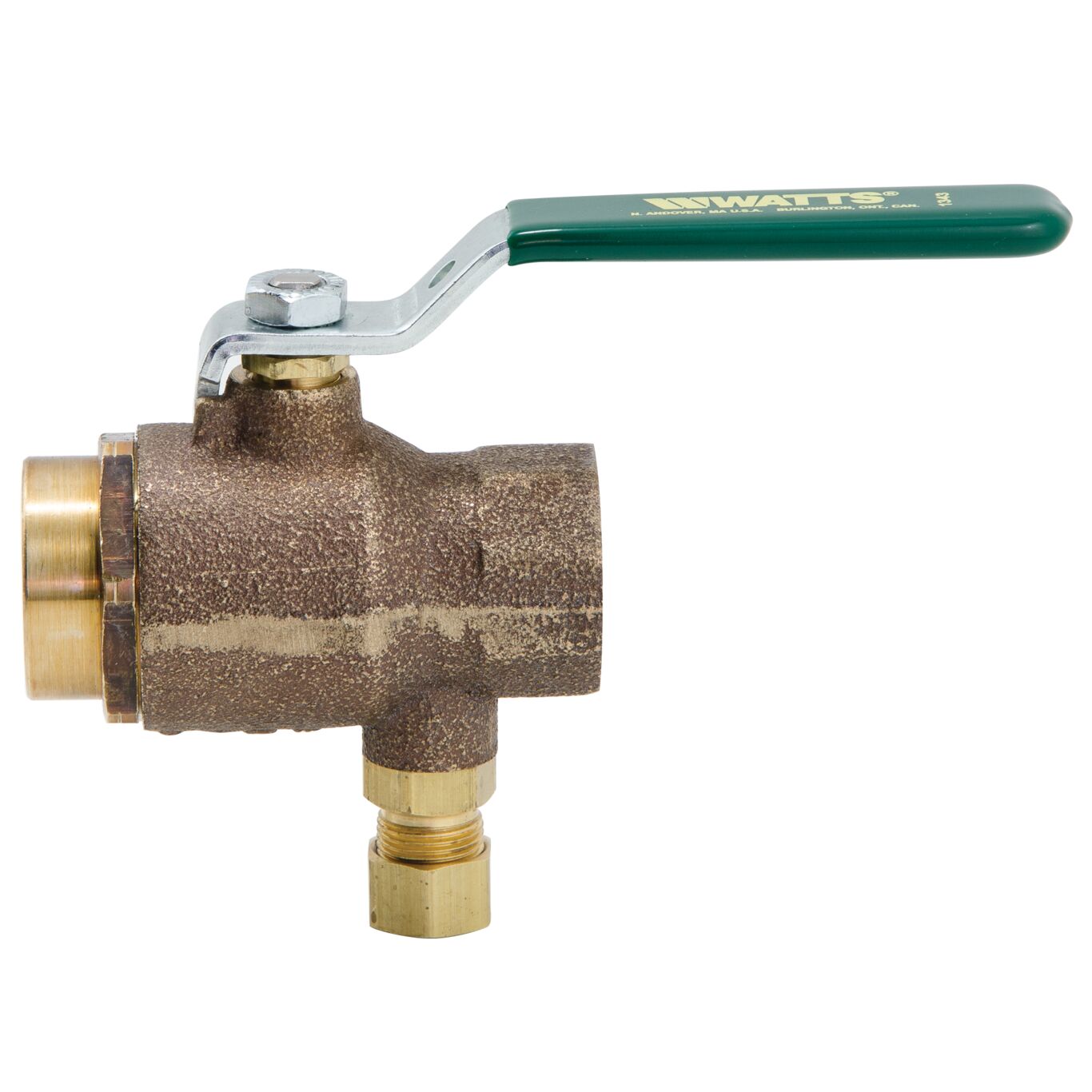

3/4 In Lead Free Combination Ball And Relief Valve, Thread X Thread X Compression, 80 psi

This 3/4 inch lead free combination ball valve and relief valve is used in commercial and residential applications on water heater installations. It consists of a lead free bronze full port body with 3/4 full port threaded inlet and outlet, nickel plated lead free brass ball, blowout-proof lead free brass stem, PTFE seats, stem packing, and stem thrust bearing, Viton relief ball, stainless steel relief spring, lead free brass adapter, and steel handle. The relief valve outlet includes a drain tube connection with a 3/4 inch compression fitting. It has a low profile design and can be installed in any position. It is for applications that require a means to shut off the water supply to the water heater and for providing protection from excess water pressure caused by thermal expansion. The pressure rating is 400 psi and the pressure relief is set at 80 psi (5.5 bar).

Product Features

  • Low profile design
  • Blowout proof stem
  • Easy installation
  • Full port ball valve
Actuation Yes
Assembled Dry No
Balance Stop Plate No
Ball Material 316 Stainless Steel
Body Finish Bronze
Body Material Lead Free Copper Silicon Alloy
Brand Name Watts
Control Type Tee Handle
EANUCCCode 098268853841
Electrical Rating Does Not Apply To Product
GDS Status Registered
Inlet Connection Size 3/4 IN
Inlet Connection Size-Metric 20 MM
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 100
Operating Torque 150.0
Outlet Connection Size 3/4 IN
Outlet Connection Type Compression Joint
Outlet Thread Type Does Not Apply To Product
Part Number 0125273
Port Type Full
Seat Material Virgin PTFE
Series LFBRV
Stem Packing Material PTFE
Stem Shaft Material 316 Stainless Steel
Stem Type Blowout Proof
Thrust Washer Material PTFE
WOG Rating 400 PSI
