3/4 LFBRVM1SXSXP-80

Part of the LFBRVM1 Series

Ordering Code: 0125567

UPC: 098268094282

Lead Free: YES

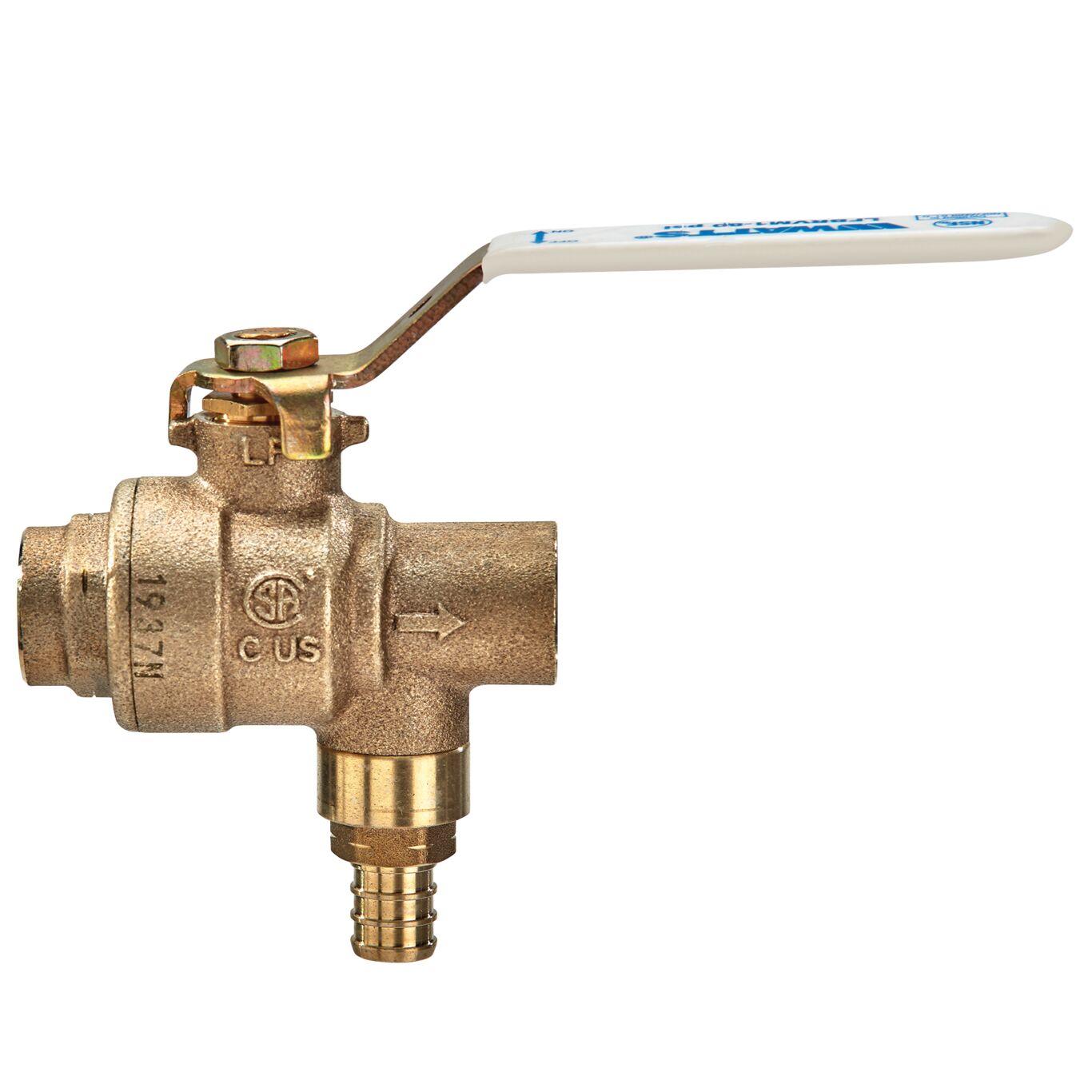

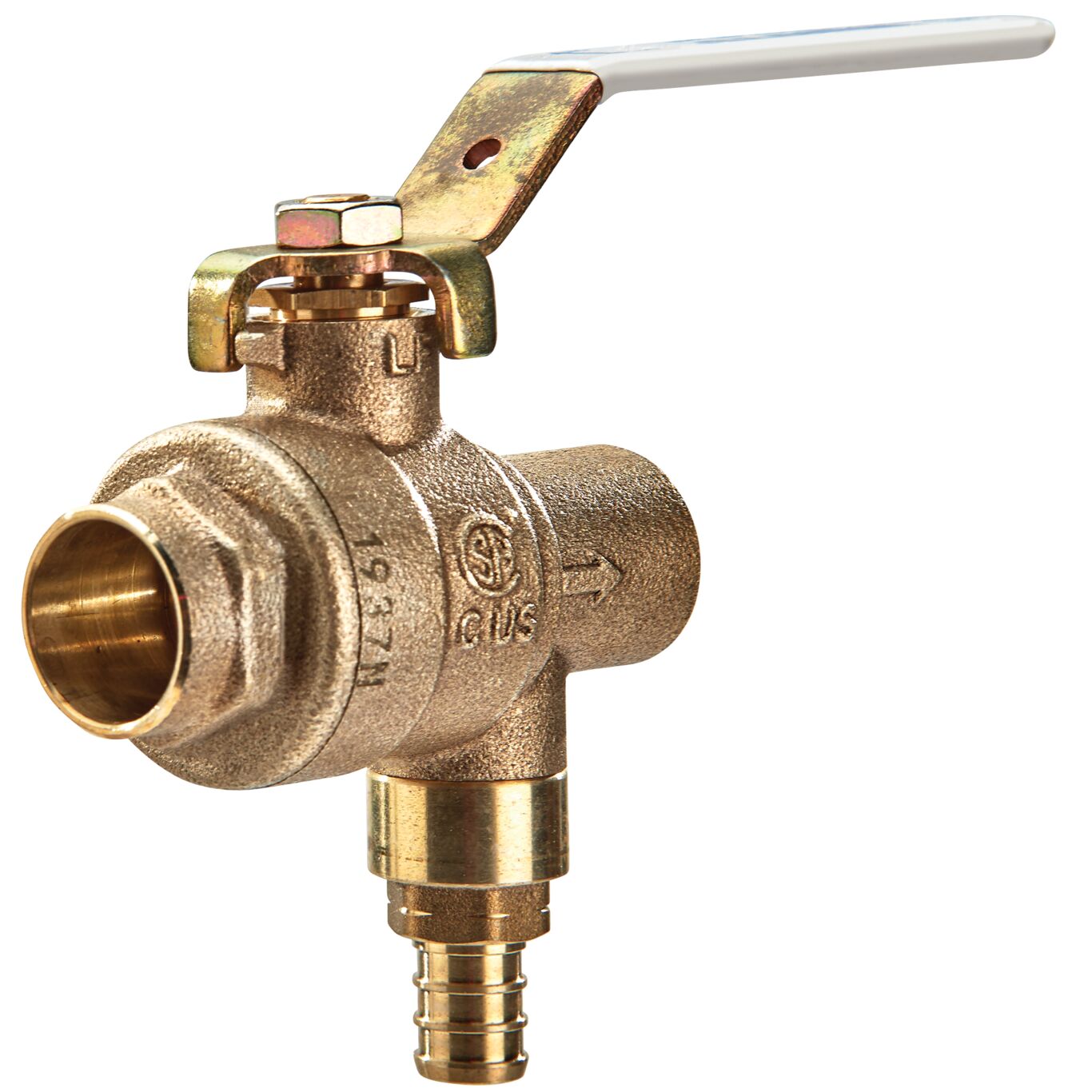

3/4 In Lead Free Combination Ball And Relief Valve, Chrome Plated Ball And Stem, Solder X Solder X Pex, 80 Psi

This 3/4 inch lead free combination ball valve and relief valve is used in commercial and residential applications on water heater installations. It consists of a full lead free full port bronze body with 3/4 inch solder x solder inlet and outlet connections, chrome plated lead free brass ball, blowout-proof lead free brass stem, PTFE seats, stem packing, and stem thrust bearing, Viton relief ball, stainless steel relief spring, brass adapter, and zinc plated carbon steel handle. The relief valve outlet includes a drain tube connection with a 3/4 inch PEX fitting. It has a low profile design and can be installed in any position. It is for applications that require a means to shut off the water supply to the water heater and for providing protection from excess water pressure caused by thermal expansion. The pressure rating is 400 PSI and the pressure relief is set at 80 PSI (5.5 BAR).

Product Features

  • Blowout proof stem
  • Full port ball valve
  • Easy installation
  • Low profile design
Specifications
Actuation No
Assembled Dry No
Balance Stop Plate No
Ball Material Chrome Plated Brass
Body Finish Does Not Apply To Product
Body Material Bronze
BrandName Watts
Class Rating Does Not Apply To Product
Control Type Lever Handle
CV Rating Does Not Apply To Product
Electrical Rating Does Not Apply To Product
Inlet Connection Size 3/4 IN
Inlet Connection Type Crimped
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Temperature-Fahrenheit 180
Minimum Temperature-Fahrenheit 40
ModelNumber 3/4 LFBRVM1SXSXP-80
Operating Torque Does Not Apply To Product
Outlet Connection Size 3/4 IN
Outlet Connection Type Crimped
Outlet Thread Type Does Not Apply To Product
Part Number 0125567
Port Type Full
Seat Material PTFE
Series LFBRVM1
Stem Packing Material PTFE
Stem Shaft Material Brass
Stem Type Bottom Loaded
Thrust Washer Material PTFE
Valve Style 2-piece
WOG Rating 600 PSI
