Part of the LFFBV-3-Press XLC Series

Ordering Code: 0125084

UPC: 098268848076

Lead Free: YES

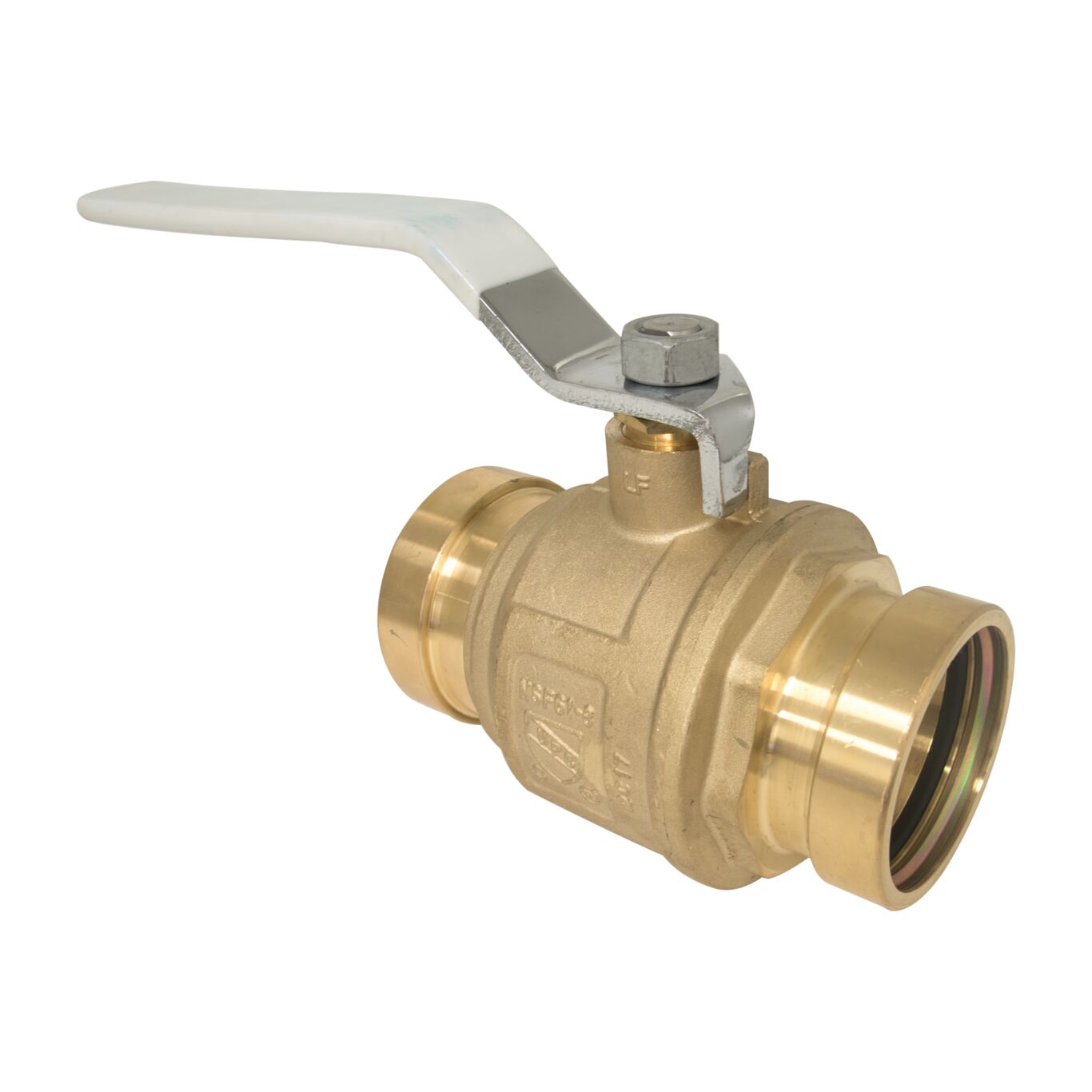

2 1/2 IN Lead Free 2-Piece, Full Port, Brass Ball Valve with Integral Press XLC Fitting End Connection, 200 psi

This 2 1/2 inch two-piece full port lead free ball valve with integral press fitting end connections is used in commercial and industrial applications where ball valves are required in press piping systems. This valve is NSF/ANSI 61 certified for use in potable water systems. The valve features lead free brass body construction, adjustable packing gland, chrome plated lead free brass ball, and a bottom loaded blowout proof stem. The pressure rating is 200 psi CWP up to 210 degrees F (13.8 bar to 99 degrees C) for the press fitting.

Product Features

  • Adjustable packing gland
  • Press connection rated to 200 psi CWP up to 210 degree F (13.4 bar to 99 degree C)
  • ASTM-B88 compliant press end connections
  • Bottom loaded blowout proof stem with stem O-ring seal
Actuation No
Assembled Dry Yes
Balance Stop Plate No
Ball Material Chrome Plated Brass
Body Finish Brass
Body Material Lead Free Copper Silicon Alloy Brass
Brand Name Watts
Class Rating Does Not Apply To Product
Control Type Lever Handle
CV Rating Does Not Apply To Product
EANUCCCode 098268848076
Electrical Rating Does Not Apply To Product
Inlet Connection Size 2 1/2 IN
Inlet Connection Size-Metric 65 MM
Inlet Connection Type Press
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 250
Minimum Temperature - Celsius 0.00
Minimum Temperature-Fahrenheit 32
Operating Torque Does Not Apply To Product
Outlet Connection Size 2 1/2 IN
Outlet Connection Type Press
Outlet Thread Type Does Not Apply To Product
Part Number 0125084
Port Type Full
Seat Material Virgin PTFE
Series LFFBV-3-Press XLC
Stem Packing Material Virgin PTFE
Stem Shaft Material Brass
Stem Type Bottom Loaded Blowout Proof
Thrust Washer Material Virgin PTFE
Valve Style 2-piece
WOG Rating 200 PSI
