Part of the LFFBV-3C-SS Series

Ordering Code: 0123473

UPC: 098268696097

Lead Free: YES

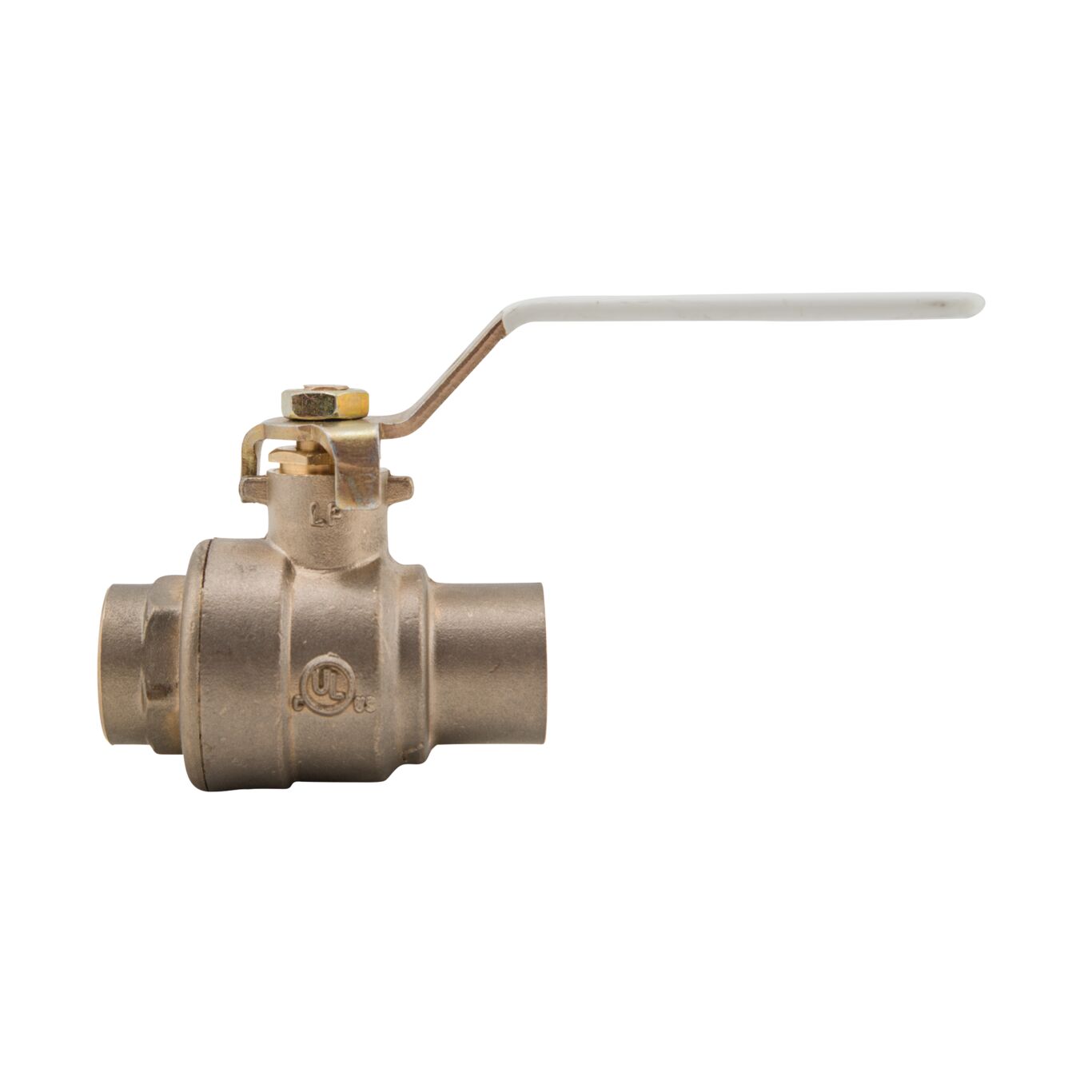

2 In Lead Free Full Port Ball Valve With Stainless Steel Ball And Stem, Solder Ends

This 2 inch 2-piece full port lead free ball valve is used in commercial and industrial applications for a full range of liquids and gases. It features a lead free brass body with solder end connections, bottom-loaded blowout proof stem, virgin PTFE seat, thrust washer, adjustable stem packing gland, stem packing nut, stainless steel ball and stem, lead free brass adapter and steel handle. The pressure rating is 600 psi WOG and 150 psi WSP.

Product Features

  • Stainless steel ball and stem
  • Lead free construction
  • Bottom loaded blowout proof stem
  • Solder end connections
Actuation No
Assembled Dry Yes
Balance Stop Plate No
Ball Material 316 Stainless Steel
Body Finish Brass
Body Material Lead Free Copper Silicon Alloy Brass
Brand Name Watts
Class Rating Does Not Apply To Product
Control Type Lever Handle
CV Rating Does Not Apply To Product
EANUCCCode 098268696097
Electrical Rating Does Not Apply To Product
Inlet Connection Size 2 IN
Inlet Connection Size-Metric 50 MM
Inlet Connection Type Socket
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 400
Minimum Temperature - Celsius -40.00
Minimum Temperature-Fahrenheit -40
Operating Torque Does Not Apply To Product
Outlet Connection Size 2 IN
Outlet Connection Type Socket
Outlet Thread Type Does Not Apply To Product
Part Number 0123473
Port Type Full
Seat Material Virgin PTFE
Series LFFBV-3C-SS
Stem Packing Material Virgin PTFE
Stem Shaft Material 316 Stainless Steel
Stem Type Bottom Loaded Blowout Proof
Thrust Washer Material Virgin PTFE
Valve Style 2-piece
WOG Rating 600 PSI
