LFFBVS-3C 1 1/2

Discontinued - Replaced By: 1 1/2 LFFBVS-3C-M1

Part of the LFFBV-3C Series

Ordering Code: 0555114

UPC: 098268447835

Lead Free: YES

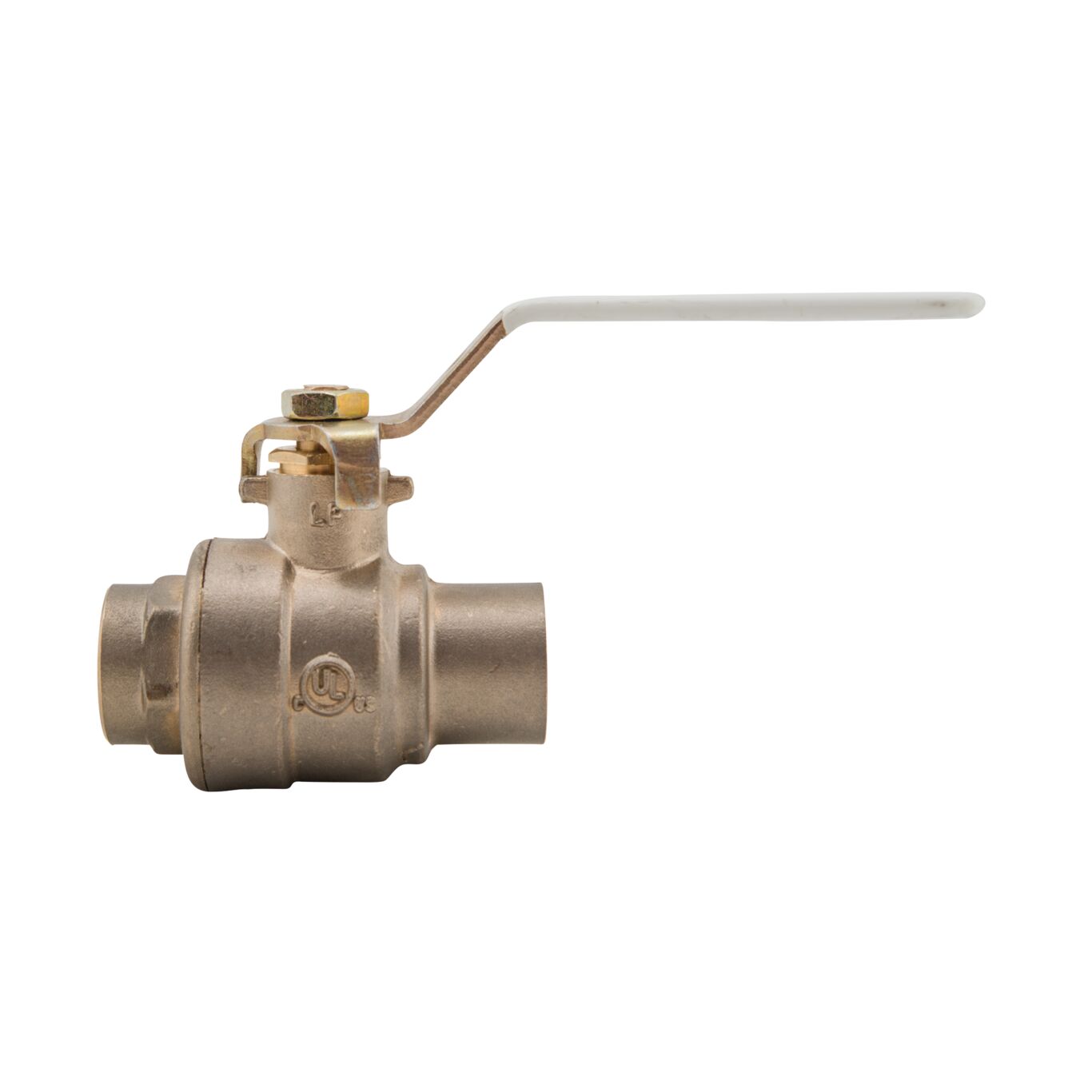

1 1/2 In Lead Free 2-Piece Full Port Ball Valve with Solder End Connections and Chrome Plated Brass Ball

This 1 1/2 inch 2-piece full port lead free ball valve is used in commercial and industrial applications for a full range of liquids and gases. It features a lead free brass body with solder end connections, bottom-loaded blowout-proof stem, virgin PTFE seat, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated lead free brass ball, lead free brass adapter and steel handle.

Features

Lead free brass body and adapter
Machined chrome plated lead free brass ball
Solder end connection
NSF approved

Specifications
Actuation	No
Assembled Dry	No
Balance Stop Plate	No
Ball Material	Chrome Plated Brass
Body Finish	Brass
Body Material	Lead Free Copper Silicon Alloy Brass
Brand	Watts
Buy American Act Compliant	NO
Class Rating	Does Not Apply To Product
Control Type	Lever Handle
CV Rating	Does Not Apply To Product
EAN	098268447835
Electrical Rating	Does Not Apply To Product
Inlet Connection Size	1 1/2 IN
Inlet Connection Size-Metric	40 MM
Inlet Connection Type	Socket
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Temperature-Fahrenheit	400
Minimum Temperature - Celsius	-18.00
Minimum Temperature-Fahrenheit	0
Operating Torque	Does Not Apply To Product
Outlet Connection Size	1 1/2 IN
Outlet Connection Type	Socket
Outlet Thread Type	Does Not Apply To Product
Part Number	0555114
Port Type	Full
Seat Material	Virgin PTFE
Series	LFFBV-3C
Stem Packing Material	Virgin PTFE
Stem Shaft Material	Brass
Stem Type	Bottom Loaded Blowout Proof
Thrust Washer Material	Virgin PTFE
Type	Kit
Valve Style	2-piece
WOG Rating	600 PSI
