LFWPBV-16
×
![]()
Part of the LFWPBV Series
Ordering Code: 0653002
UPC: 098268441147
Lead Free: YES

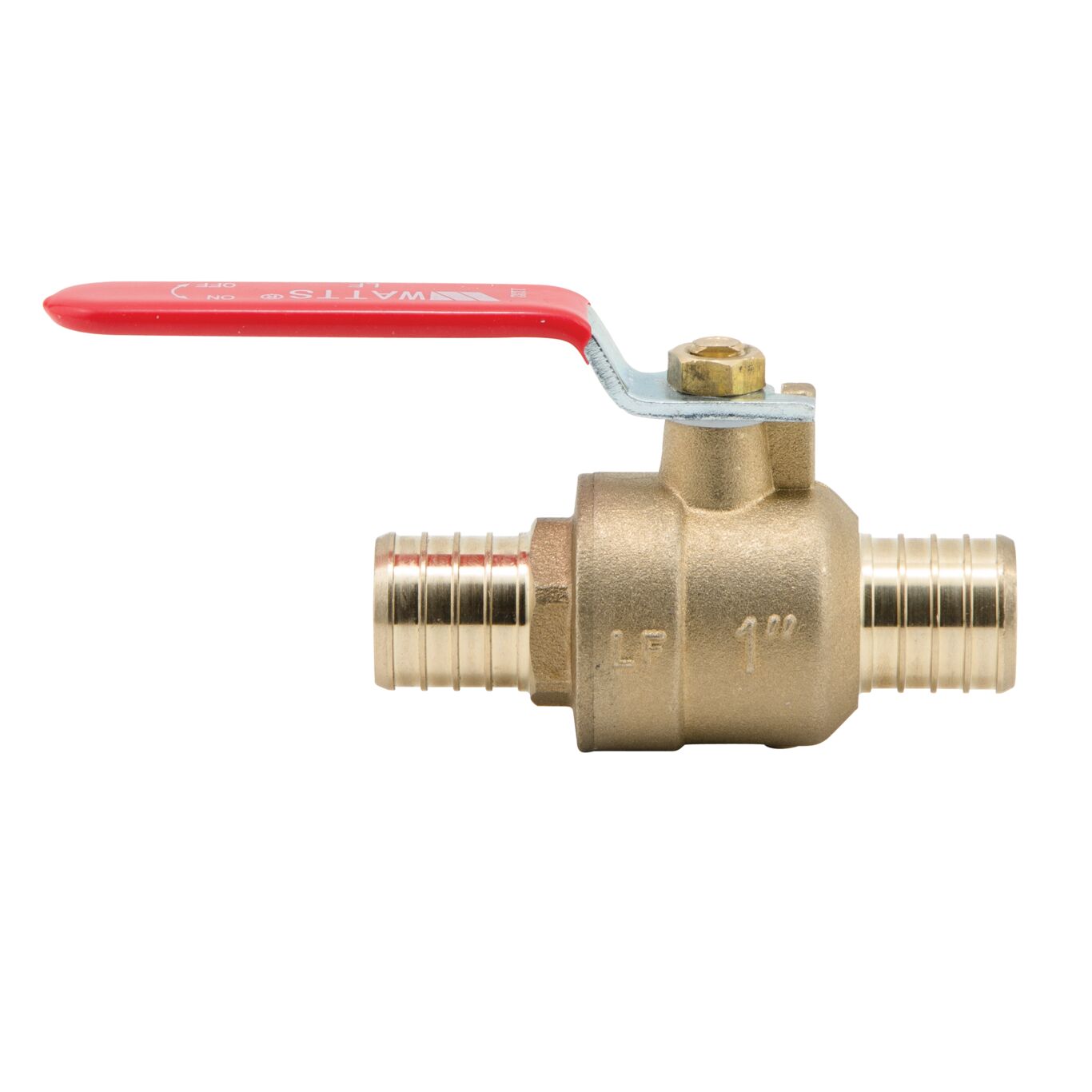

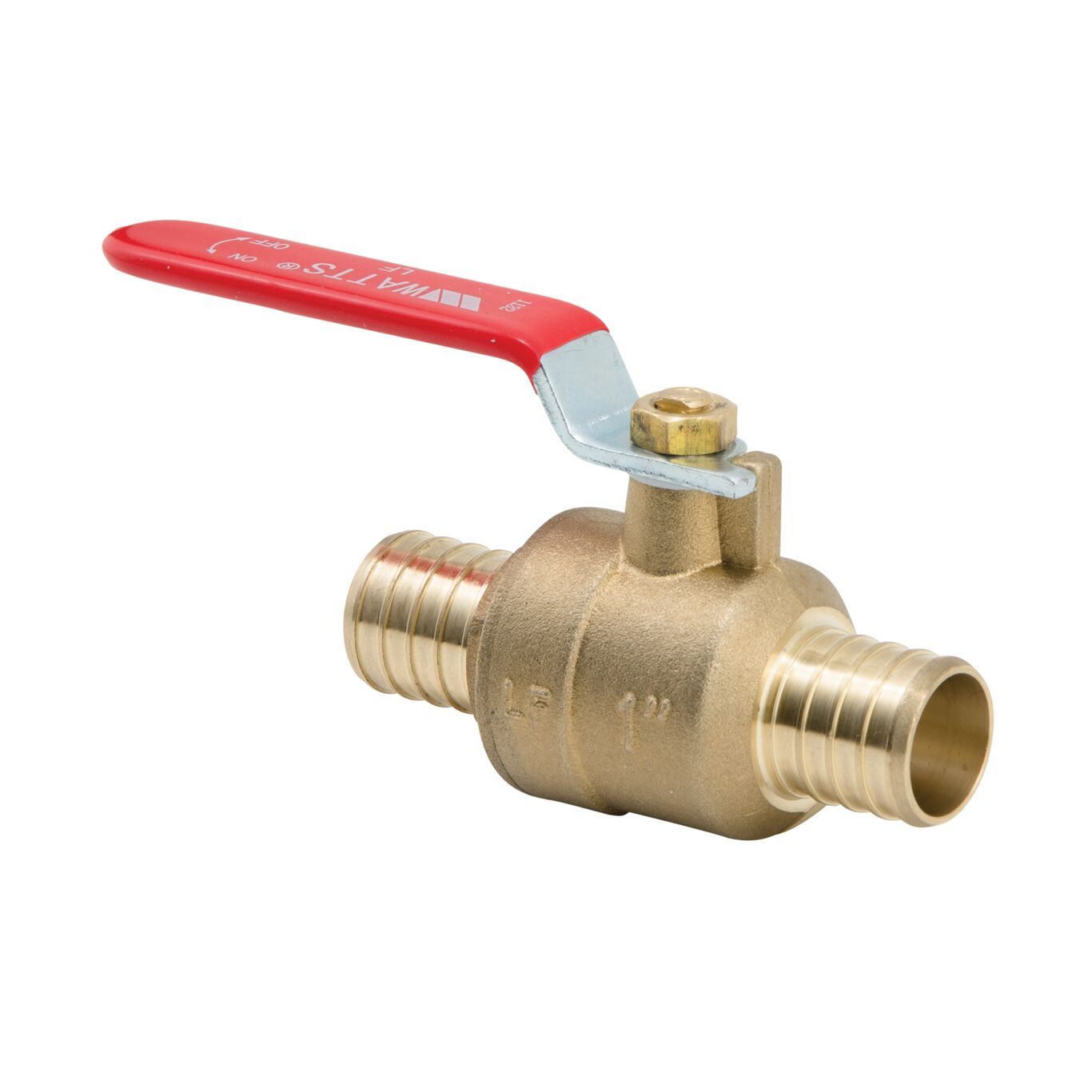

1 Cf X 1 Cf Full Port Lead Free Ball Valve, Crimp Ends
This 2-piece, full port ball valve is designed for use with WaterPEx (R) tubing. It features a forged lead free brass body, 1 IN crimp end connections, chrome plated brass ball, stem packing, virgin PTFE seats, and Viton (R) stem O-ring. The ball valve rating is 400 WOG and the crimp connection is rated to 160 psi at 73 degrees F (11 bar at 23 degrees C).
Features
- Durable forged lead free brass body
- Quick and easy installation
- Designed specially for PEX piping systems
- Crimp end designed to ASTM-F-1807
| Specifications | |
|---|---|
| Actuation | No |
| Assembled Dry | No |
| Balance Stop Plate | No |
| Ball Material | Brass |
| Body Finish | Brass |
| Body Material | Brass |
| Brand | Watts |
| Buy American Act Compliant | NO |
| Class Rating | Does Not Apply To Product |
| Control Type | Tee Handle |
| EAN | 098268441147 |
| Electrical Rating | Does Not Apply To Product |
| Inlet Connection Size | 1 IN |
| Inlet Connection Size-Metric | 25 MM |
| Inlet Connection Type | Crimped |
| Inlet Thread Type | Does Not Apply To Product |
| Lead Free | YES |
| Maximum Temperature-Fahrenheit | 180 |
| Minimum Temperature - Celsius | 23.00 |
| Minimum Temperature-Fahrenheit | 73 |
| Outlet Connection Size | 1 IN |
| Outlet Connection Type | Crimped |
| Outlet Thread Type | Does Not Apply To Product |
| Part Number | 0653002 |
| Port Type | Full |
| Seat Material | Virgin PTFE |
| Series | LFWPBV |
| Stem Packing Material | Virgin PTFE |
| Stem Shaft Material | Brass |
| Stem Type | Blowout Proof |
| Valve Style | 2-piece |
| WOG Rating | 400 PSI |
