LFWPBVD-12
×
![]()
Part of the LFWPBVD Series
Ordering Code: 0653004
UPC: 098268441161
Lead Free: YES

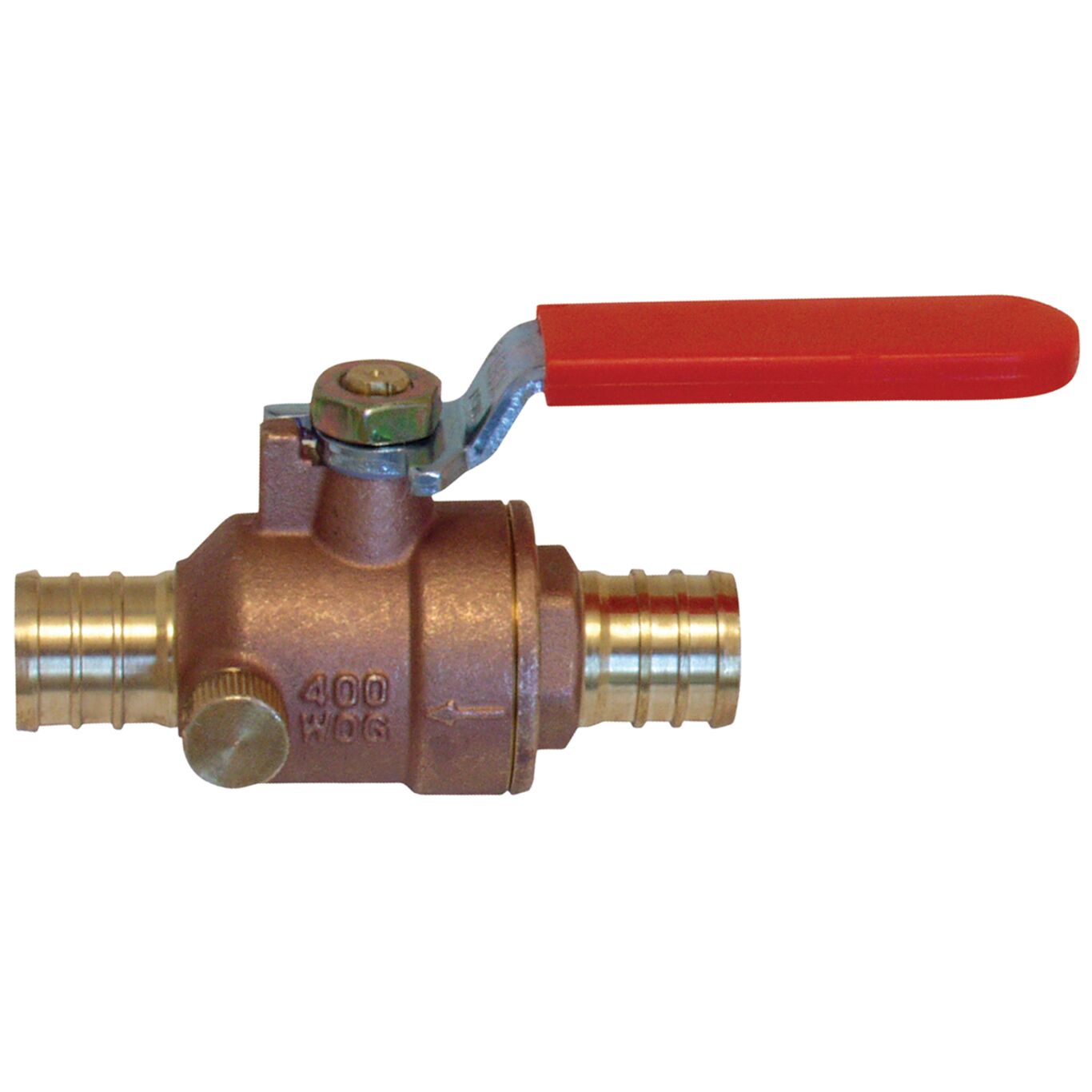

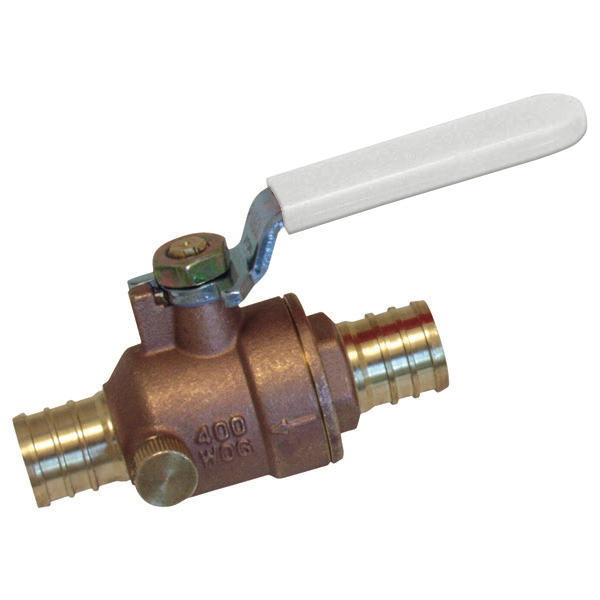

3/4 Cf X 3/4 Cf Lead Free Full Port Ball Valve, Crimp Ends, Waste Drain
This 2-piece full port ball valve is designed for use with WaterPEX (R) piping. It features a forged brass body with waste drain, chrome plated brass ball, virgin PTFE seats, stem packing, and Viton (R) stem O-ring. This ball valve has 3/4 inch crimp end connections designed for use with WaterPEX (R) tubing. The ball valve rating is 400 WOG and the crimp connection is rated to 160 psi at 73 degrees F (11 bar at 23 degrees C).
Features
- Durable forged lead free brass body with waste drain
- Quick and easy installation into PEX piping system
- For use with SDR-9 PEX pipe
- Crimp end designed to ASTM-F-1808
| Specifications | |
|---|---|
| Actuation | No |
| Assembled Dry | No |
| Balance Stop Plate | No |
| Ball Material | Brass |
| Body Finish | Brass |
| Body Material | Brass |
| Brand | Watts |
| Buy American Act Compliant | NO |
| Class Rating | Does Not Apply To Product |
| Control Type | Lever Handle |
| EAN | 098268441161 |
| Electrical Rating | Does Not Apply To Product |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Size-Metric | 20 MM |
| Inlet Connection Type | Crimped |
| Inlet Thread Type | Does Not Apply To Product |
| Lead Free | YES |
| Maximum Temperature-Fahrenheit | 180 |
| Minimum Temperature - Celsius | 23.00 |
| Minimum Temperature-Fahrenheit | 73 |
| Outlet Connection Size | 3/4 IN |
| Outlet Connection Type | Crimped |
| Outlet Thread Type | Does Not Apply To Product |
| Part Number | 0653004 |
| Port Type | Full |
| Seat Material | Virgin PTFE |
| Series | LFWPBVD |
| Stem Packing Material | Virgin PTFE |
| Stem Shaft Material | Brass |
| Stem Type | Bottom Loaded Blowout Proof |
| Valve Style | 2-piece |
| WOG Rating | 400 PSI |
