BF03-121-45 6 Watts

Part of the BF03-121 Series

Ordering Code: 0526828

UPC: 098268503944

Lead Free: YES

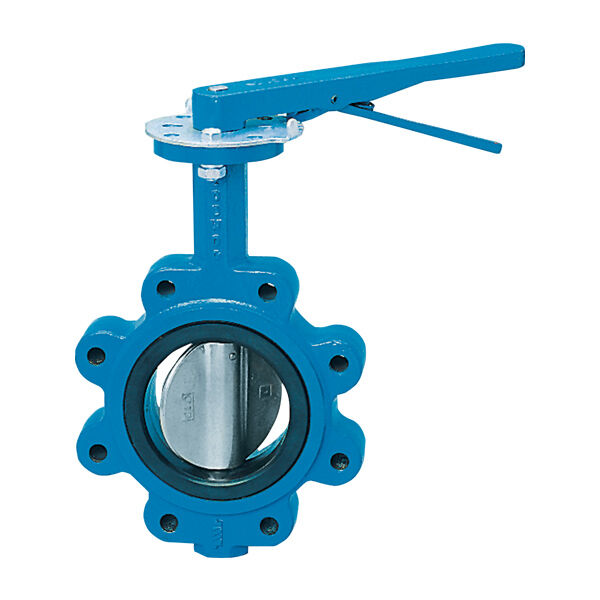

6 In Butterfly Valve, Full Lug, Ductile Iron Body, Aluminum Bronze Disc, 416 Ss Shaft, Epdm Seat, Lever Handle, Nsf Approved

This 6 inch butterfly valve is designed specifically for applications which may require an NSF approved valve for potable water system applications. This valve has a lever handle and is constructed with a ductile iron body, aluminum bronze disc, 316 stainless steel shaft, and an NSF approved EPDM seat. It has a 200 PSI pressure rating. It is to be used with ANSI 125 or 150 class flanges and comply with API 609 and MSS-SP 67 standards.

Product Features

  • Aluminum bronze disc
  • Lever handle
  • NSF approved EPDM seat
  • Ductile iron body
Specifications
Body Material Ductile Iron
BrandName Watts
Class Rating 125 or 150
Control Type Lever Handle
CV Rating 1579 GPM
Disc Material Aluminum Bronze
Inlet Connection Size 6 IN
Inlet Connection Type Lug
LeadFree YES
Maximum Operating Temperature-Fahrenheit 248
Maximum Working Pressure-PSI 200
Minimum Temperature-Fahrenheit 5
ModelNumber BF03-121-45 6
Operating Torque-Dry 1542 in-lbs
Operating Torque-Wet 907 in-lbs
Outlet Connection Size 6 IN
Outlet Connection Type Lug
Part Number 0526828
Seat Material EPDM
Series BF03-121
Silicone Free Yes
Stem Shaft Material 416 Stainless Steel
Valve Style Lug
