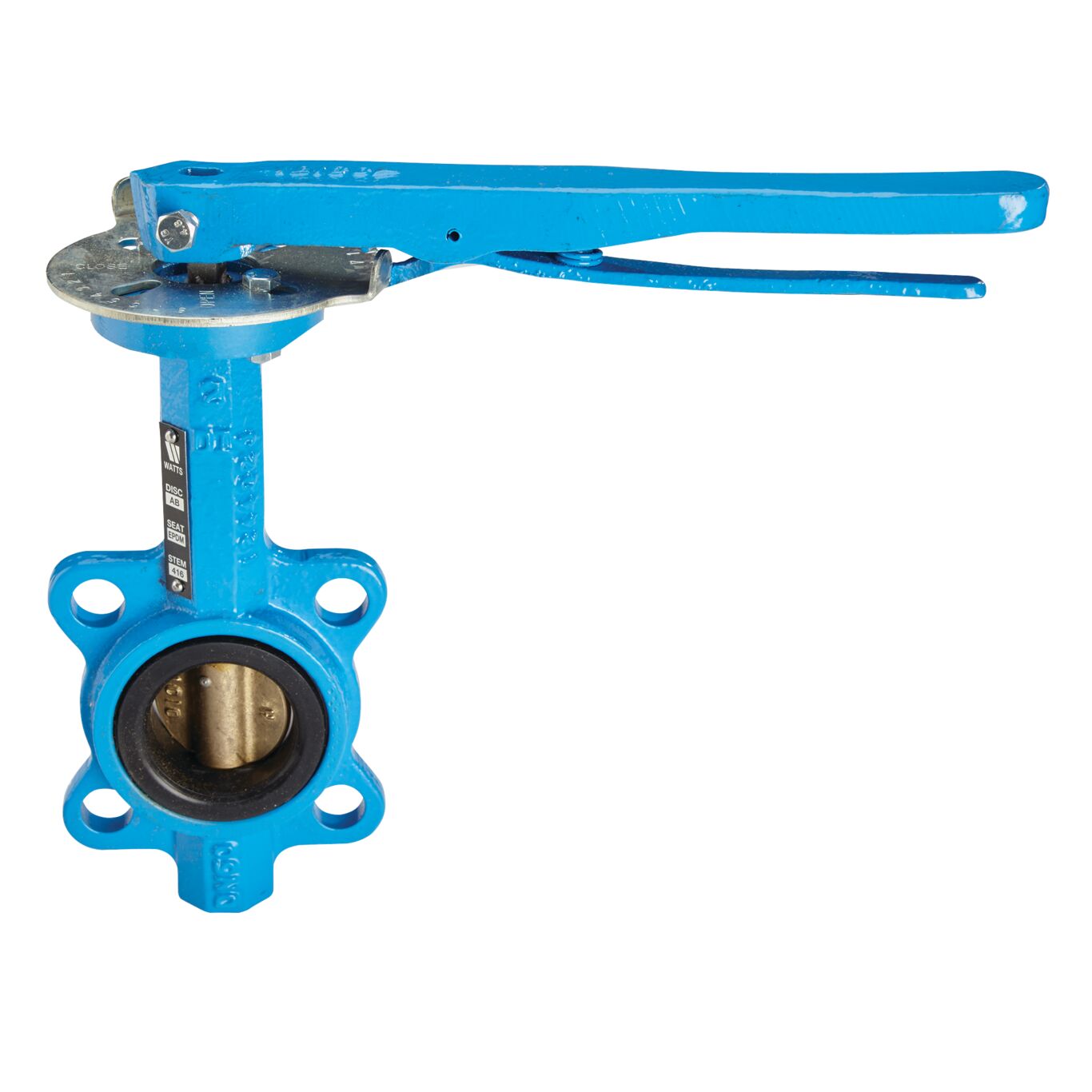

DBF-04

Wafer Style Butterfly Valves - Domestic

Series DBF-04 Wafer Style Butterfly Valves are used in HVAC, irrigation, OEM, commercial, and institutional applications and wherever positive shutoff is required to control the flow of liquids, gases, and slurries. It features cast iron body construction, stainless steel shaft, and a mounting pad for 10 position lever, gear operator, or actuator. Available with ductile iron, aluminum bronze, or stainless steel discs and EPDM, Buna, or Viton seats. Pressure Rating is 200psi WOG.

Features

  • A phenolic-backed seat prevents the seat from collapsing or dislodging.
  • Used in HVAC, irrigation, OEM, commercial, and institutional applications and wherever positive shutoff is required
  • Complies with API 609 and MSS-SP-67
  • Controls the flow of liquids, gases, and slurries

Select a Model

Select options below to identify the UPC, Order Code, and Repair Kit for a specific DBF-04
