GV 3/4
×
![]()
Discontinued
Part of the GV Series
Ordering Code: 0700140
UPC: 098268087291

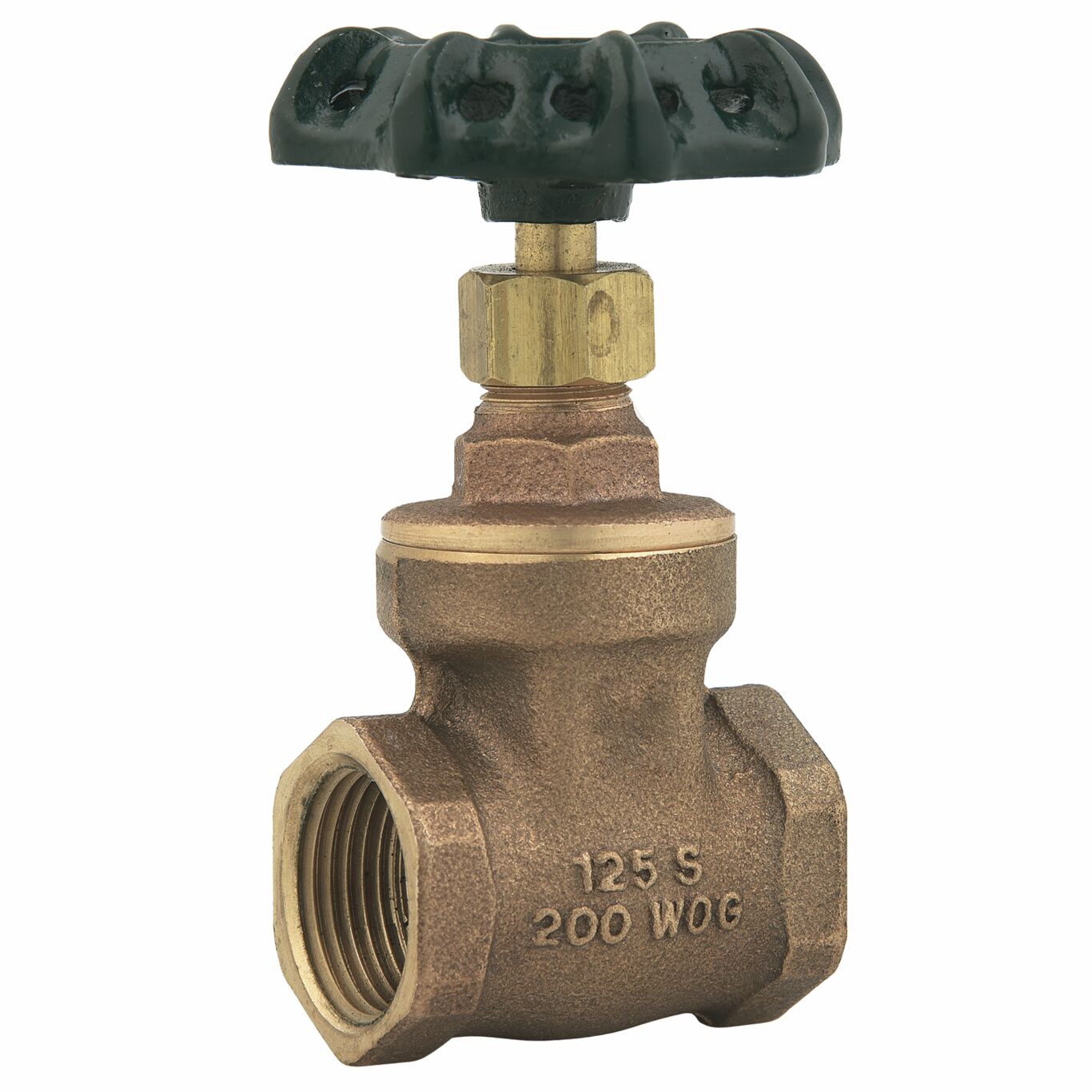

3/4 In Bronze Gate Valve, Thread
This 3/4 inch bronze gate valve is ideal for general service on water, steam, oil or compressed gas applications. It features a bronze body, non-rising brass stem, Teflon (R) packing, threaded IPS bonnet, bronze disc, cast iron handwheel and 3/4 inch threaded IPS end connections. The pressure rating is 125 psi (8.6 bar) WSP and 200 psi (13.8 bar) WOG non-shock.
Features
- Bronze body construction
- Non-rising brass stem
- Teflon (R) packing
- Threaded IPS bonnet
| Specifications | |
|---|---|
| Body Material | Bronze |
| Bonnet Type | Threaded |
| Brand | Watts |
| Buy American Act Compliant | NO |
| Control Type | Handwheel |
| EAN | 098268087291 |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Size-Metric | 20 MM |
| Inlet Connection Type | Female Threaded |
| Inlet Thread Type | FPT |
| Lead Free | NO |
| Maximum Pressure-PSI | 200 |
| Outlet Connection Size | 3/4 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | FPT |
| Part Number | 0700140 |
| Series | GV |
| Stem Shaft Material | Brass |
| Stem Type | Non Rising |
| Valve Style | NRS |
| WOG Rating | 200 PSI |
